UMX and ULX - customized motors

In case our standard motor series are not sufficient for your application, it is also possible to have these motors customized in a variety of ways.

This can range from simple modifications, like a different connector, to fully custom motors designed from scratch.

Custom yokes which can be used with standard coil units.

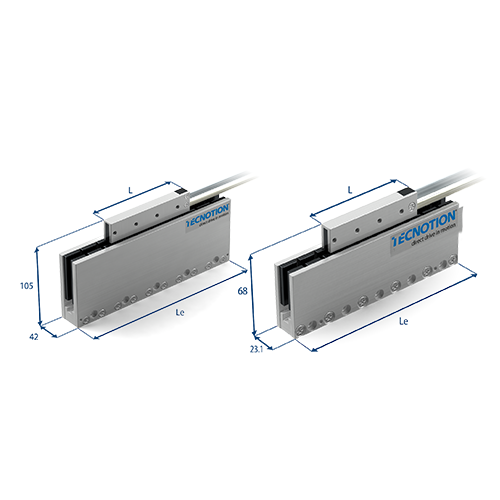

The ULX custom yoke can be used with the standard UL coils. With an width increase of just 13.6mm (42mm instead of 28.4mm) a force increase of 30% is realised. (top picture)

The UMX custom yoke can be used with the standard UM coils. With an width increase of just 2mm (23.1mm instead of 21.1mm) a force increase of 10% is realised. (below)

Upgraded options when there is slightly more power needed!

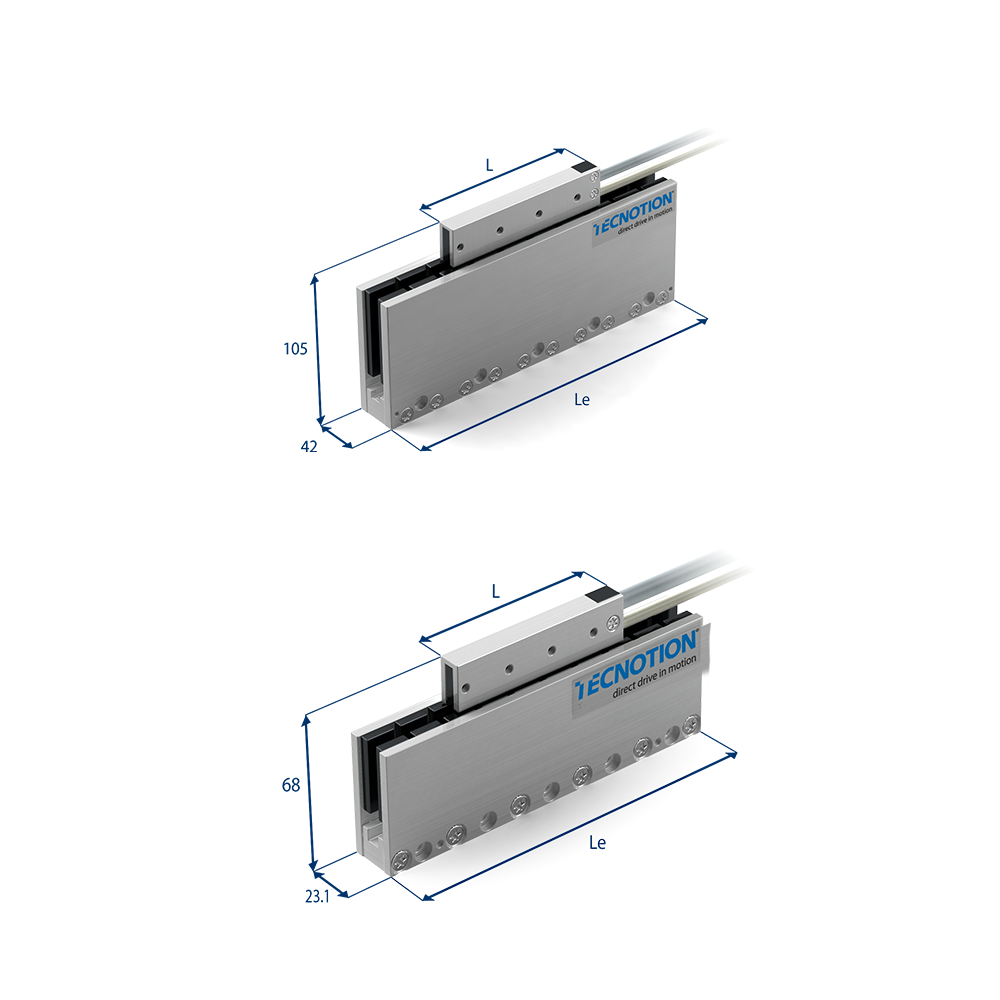

UMX and ULV Ironless motors with dimensions

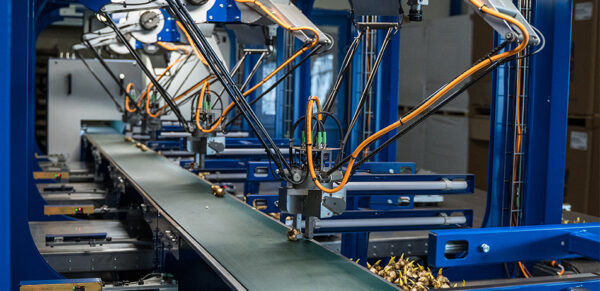

Brom Delta Robots Line With Bulb Flowers

We direct drive innovation in delta robots

The new generation of delta robots has one thing in common. Their design replaces the familiar servo motors with a gearbox for direct drive torque motors. Together with Tecnotion, Brom mechatronics designed and build the first delta robot production line to place bulb flowers into pots. The build-in frameless torque motors play an important role to increase productivity and reduce costs.

Watch the video

Resources

Motor portfolio brochure

All linear motors |Brochure| Version 3.0

More info

Motor sizing and selection webinar

Iron core motor |Webinar| Version 1.0

Watch now

Check all our downloadable resources

Digital Hall Module

For commutation, Tecnotion has an optional Digital Hall Module that can be used with our entire range of linear motors. Its sensors provide 3 digital outputs, each phase shifted 120 degrees, to determine the electrical angle between coils and magnets. If you do not use a controller that allows you to commutate within the servo drive, this module can be a cost-effective alternative. The digital Hall module requires a 4.5 to 28Vdc power supply.

Frequently asked questions

What are typical applications for Ironless motors?

What is a vacuum motor?

Product filter

Find the best motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.

Open product filter

Simulation tool

Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.

Discover more

Thank you for your interest in our motors. Please fill out the form to request more information about customized or tailor-made motors and one of our experts will get back to you.

UMX and ULX

Powerful ironless linear motors
