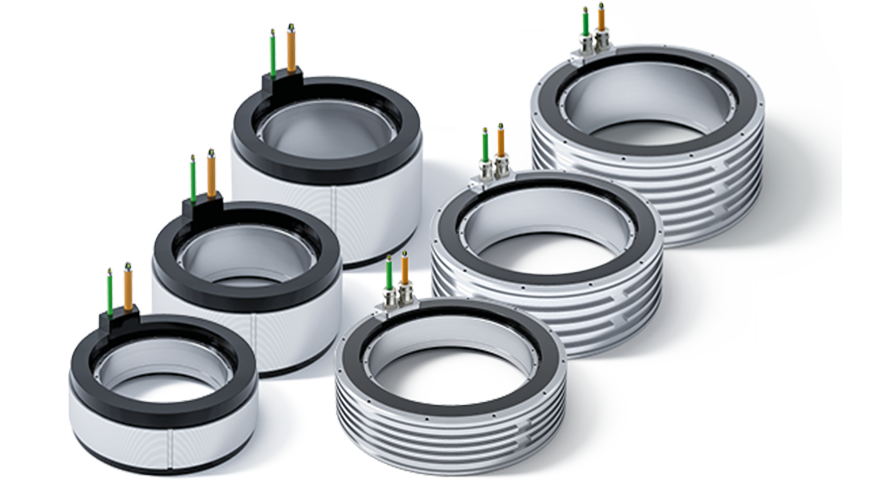

The QTL motor series are our largest torque motors, yet very compact for high torque density. The QTL is a frameless direct drive motor and therefore can be integrated directly into the machine structure, while the spacious open inner diameter enables wire and cable feedthrough.
The QTL motor series comes in six diameters (210-230-290-310-385-485 mm) and three heights (65-85-105 mm). They are available with (QTL 230- 310-385-485) or without cooling (QTL 210 and 290).
The advantages of the QTL motor series
• High voltage insulated, up to 300 VDC/600 VDC, bus voltage
• Good product repeatability
• 100% QC
• Large inner diameter
• Low stator and rotor mass
• Shielded cable with strain relief
• Low cogging value, Low total harmonic distortion (THD)
The QTL series is suitable for a variety of markets including machine tooling, laser cutting, rotary indexing tables, printing, and materials handling.
