Ironless motor |Brochure| 1.3
UF series
High continuous force for application with high duty cycles
It is exceptionally suited for applications with high duty cycles, for instance in the medical and semiconductor markets or for pick & place systems.

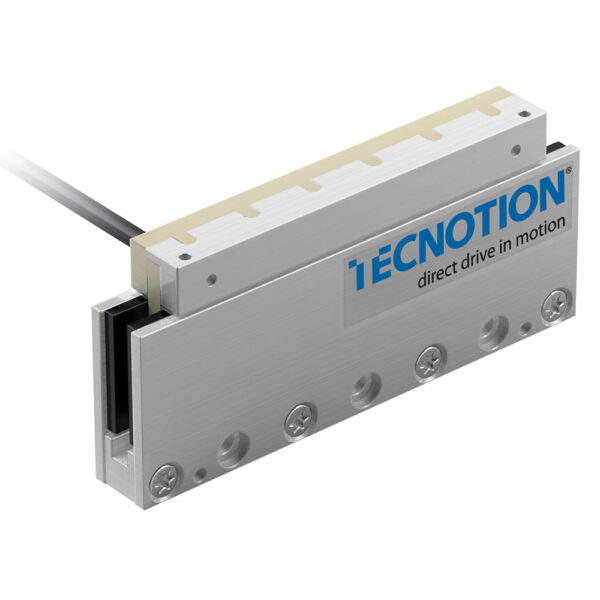

Ironless UF series
The UF Series is built specifically to sustain very high continuous forces for its footprint, which is only marginally larger than that of the UC.
It is exceptionally suited for applications with high duty cycles, for instance in the medical and semiconductor markets or for pick & place systems.

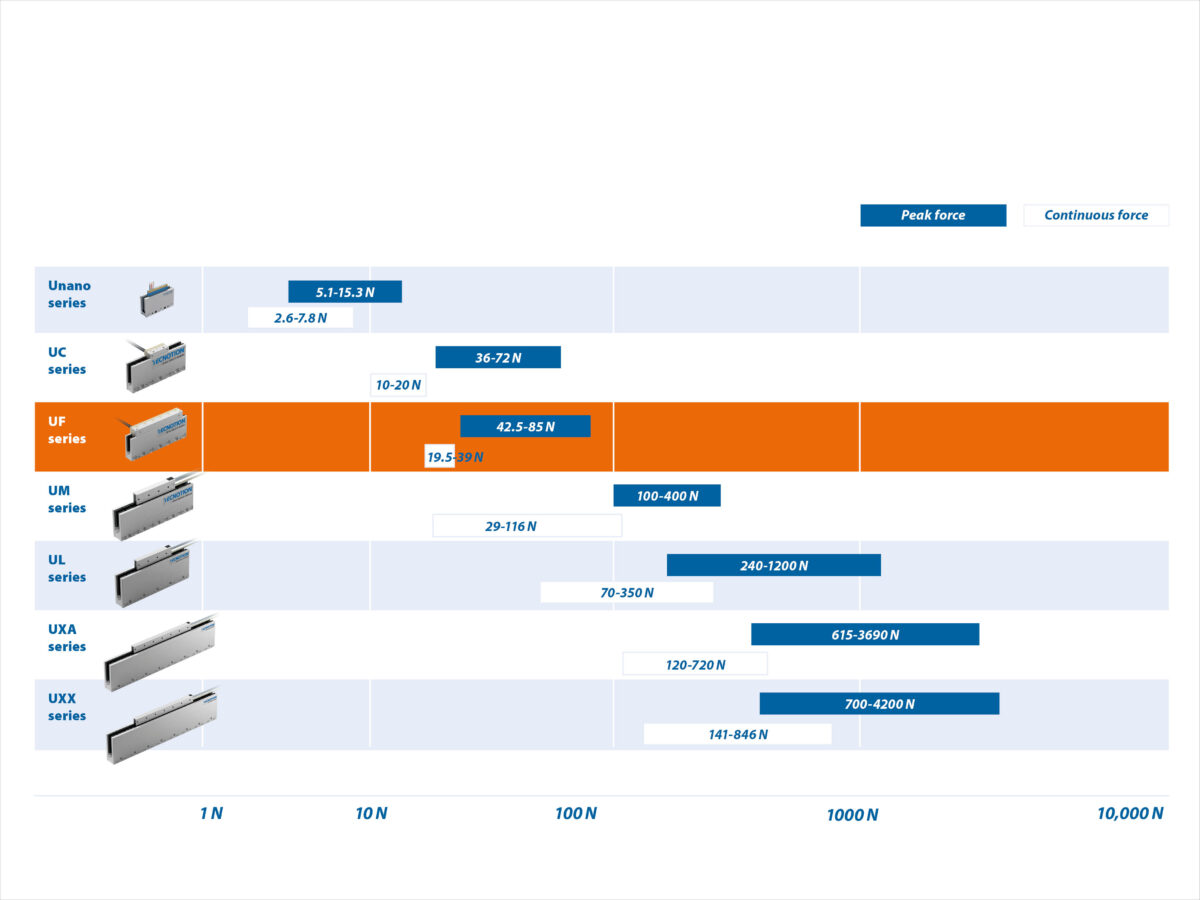

Force
Peak force: 42.5 – 85 N
Continuous force: 19.5 – 39 N
Coil Units: UF3 – UF6

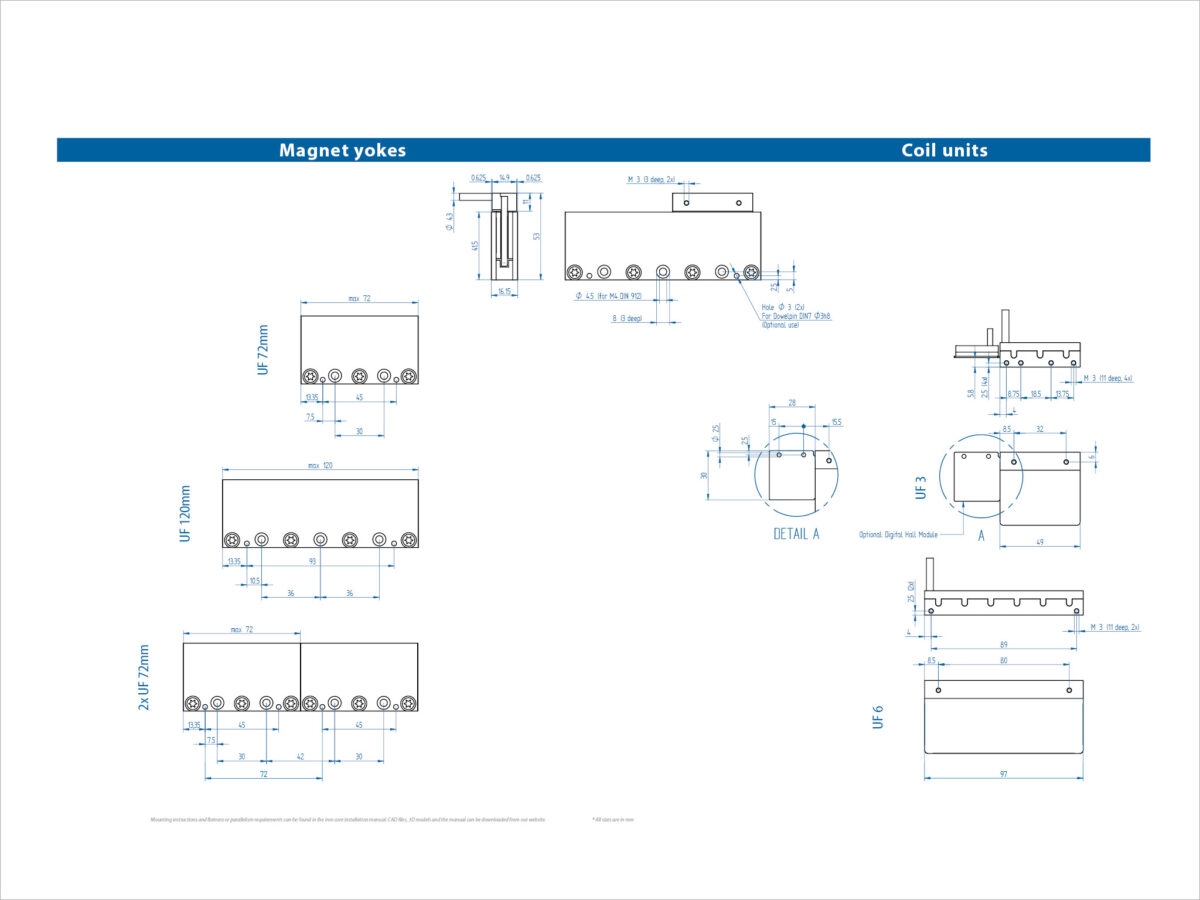

Magnet Yokes: UF72 – UF120

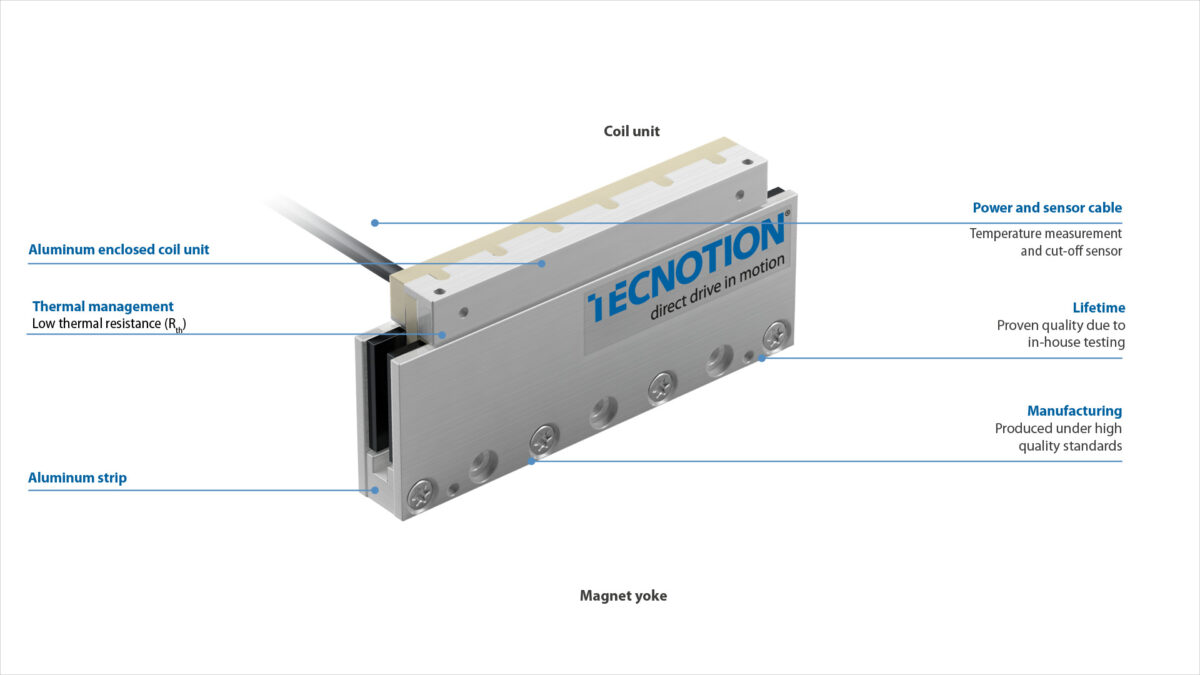

Properties

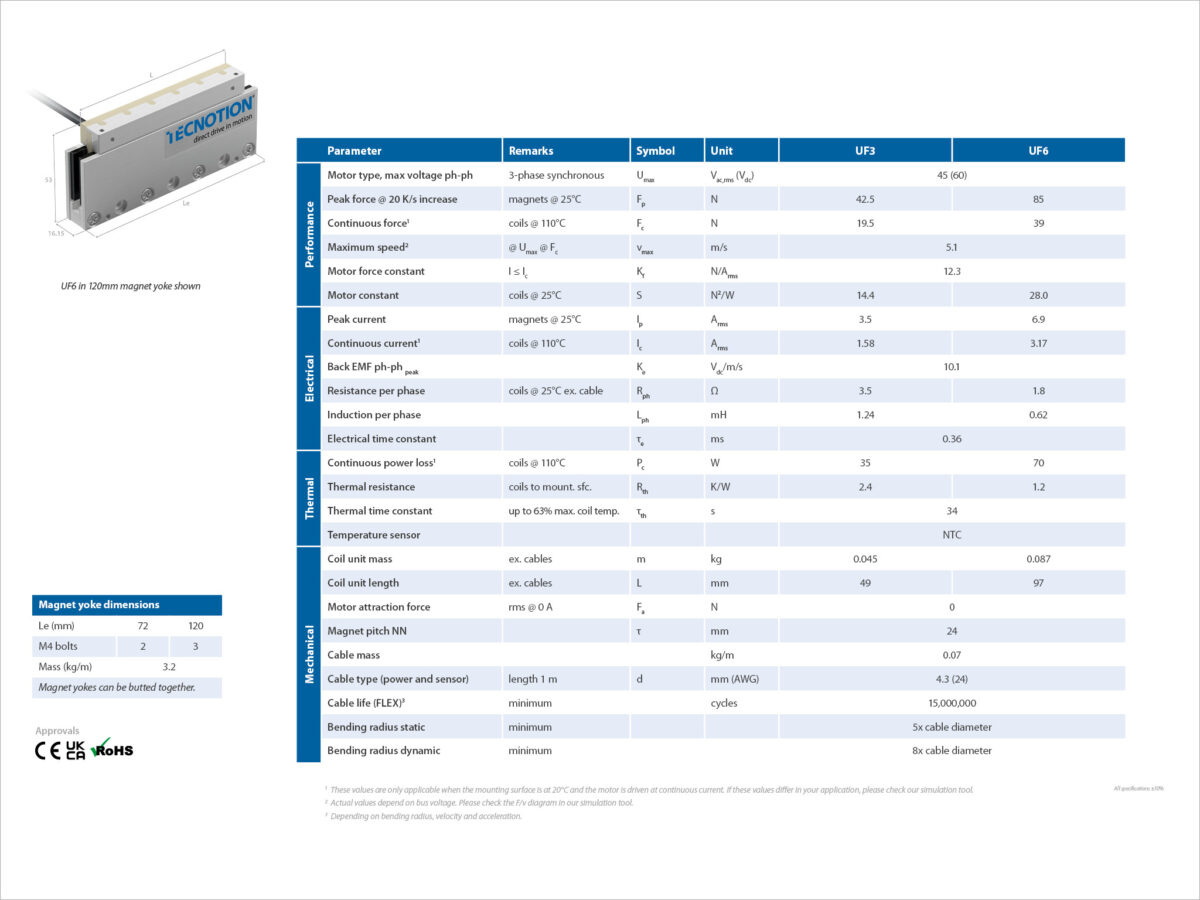

Specifications
Resources
Iron core motor |Webinar| Version 1.0
Ironless motor |Manual| Version 2.0
All linear motors |Spec sheet| 1.3
Ironless motor |CAD file| version 1.0
Ironless motor |CAD file| version 1.0
