Minimal Space. Maximum Impact! Designed for when every millimeter matters> the new IRONLESS UNANO SERIES
Semiconductors
Increase throughput and precision of your system
Display
Enhance accuracy and precision with linear motors
Science and aerospace
Improve motion quality for a variety of applications
Machine tooling
Robust solutions for increased speed and precision
Digital cutting
Create modular and high throughput applications
Printing
Increase printing speed and quality using linear motors
Robotics
Integrate compact solutions for guaranteed uptime and high dynamics
Life science
Establish precise and clean integrated solutions
Woodworking
Maximize performance and accuracy for high throughput
Stages and system solutions
Compact integration and high performance for your axis
Vacuum applications
Best performance for clean and vacuum applications
This motor stands out for its extremely high speed and exceptional thermal characteristics. Especially suited for applications in which highly accurate measuring is required.

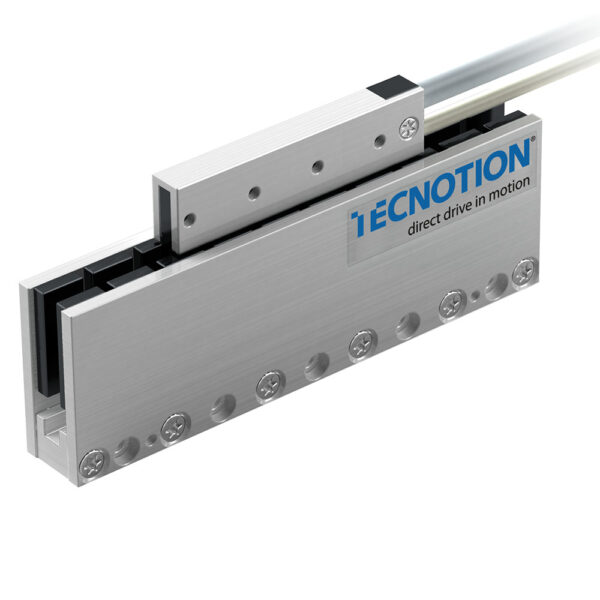

The mid-range UM ironless motors stand out for their extremely high speed and exceptional thermal characteristics which are the result of our unique production techniques.

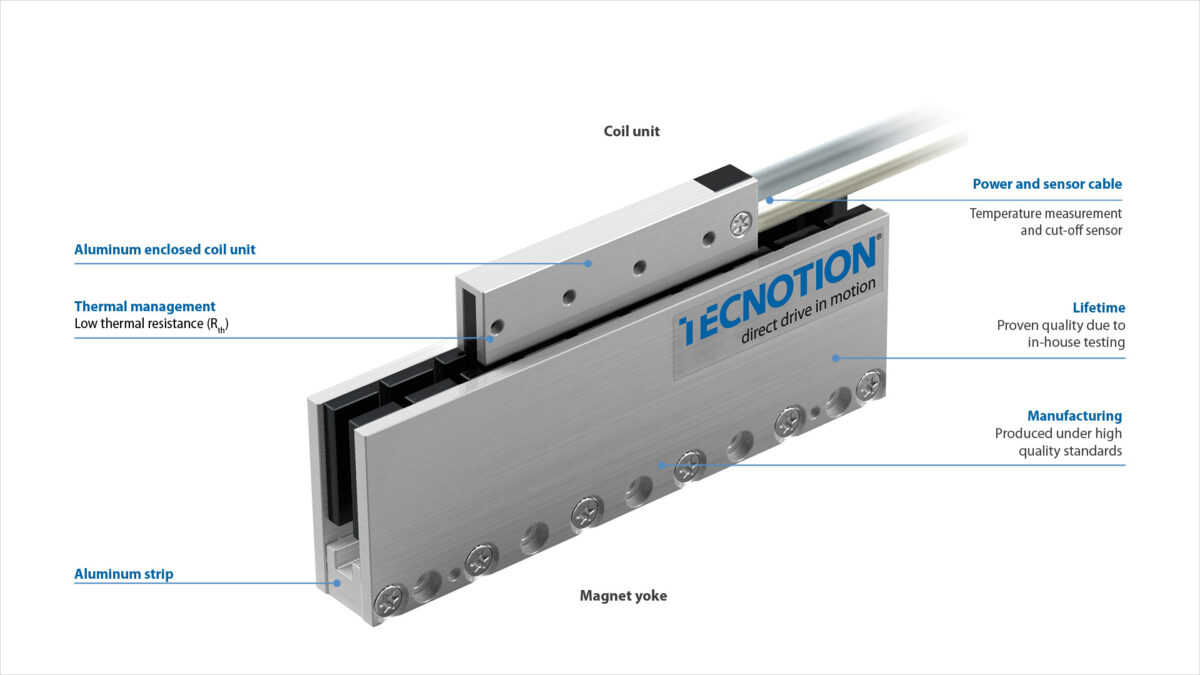

Being an ironless design the motor exhibits no cogging and has zero attraction force between the coil unit and the magnets. This makes the compact UM motors especially suited for applications in which highly accurate measuring is required.
Ironless motor |Brochure| 1.3
Iron core motor |Webinar| Version 1.0
Ironless motor |Manual| Version 2.0

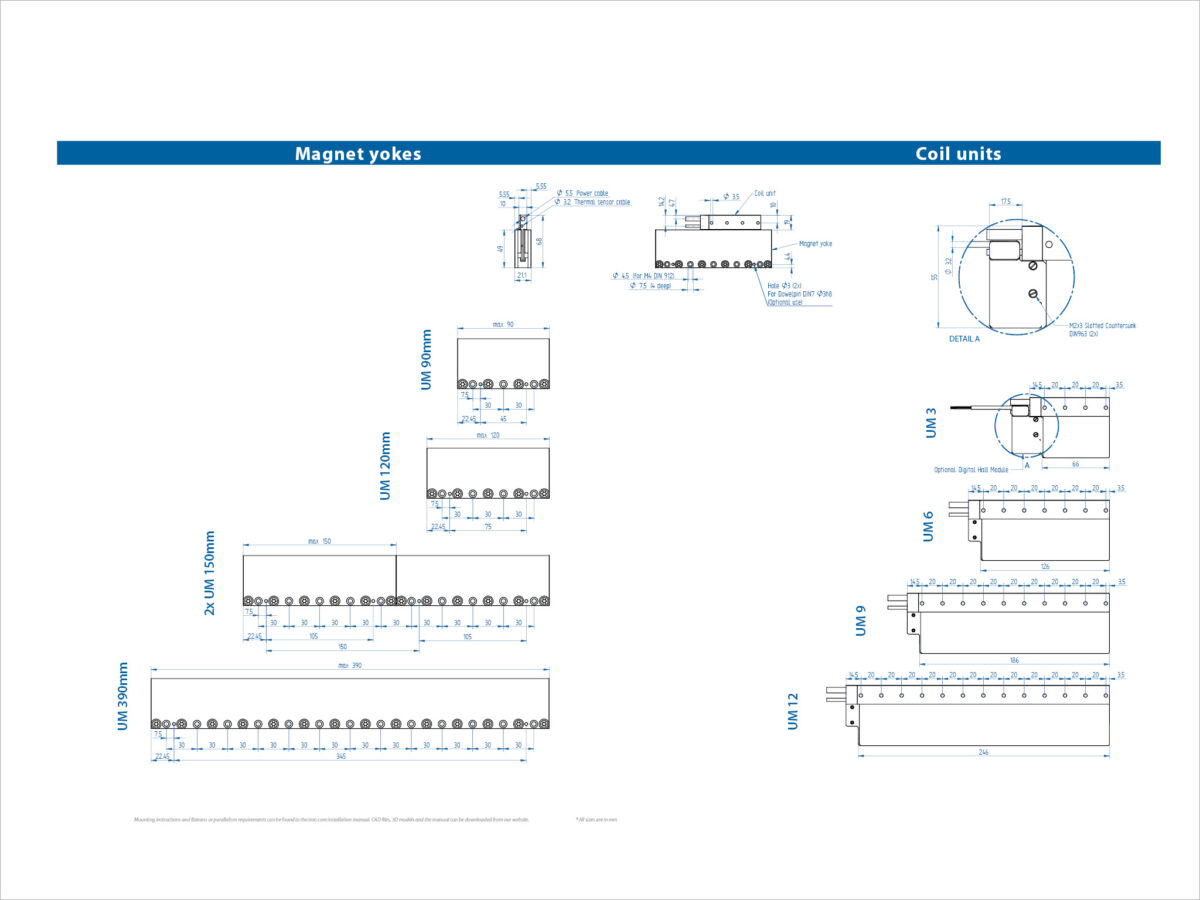

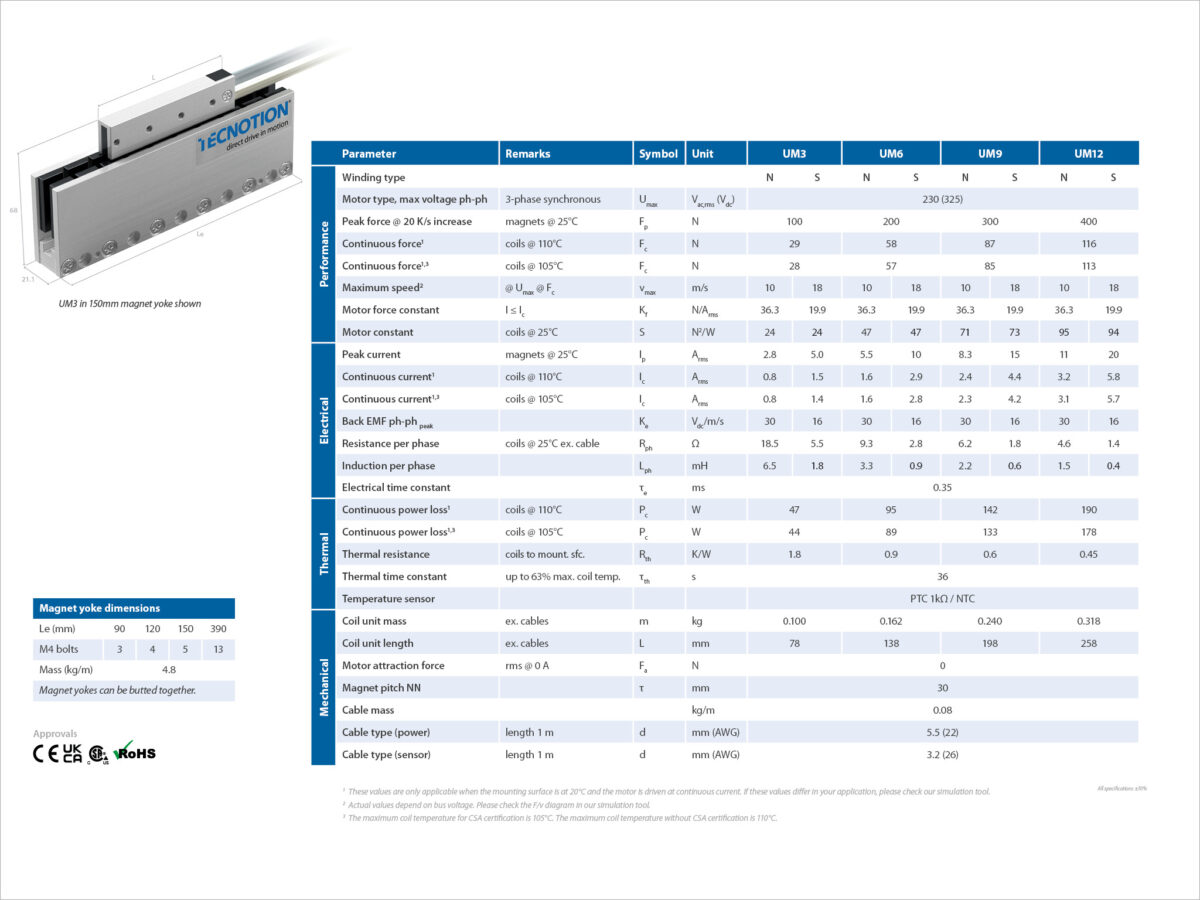

Ironless motor |Spec sheet| 1.3
Ironless motor |CAD file| version 1.0
Ironless motor |CAD file| version 1.0
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.

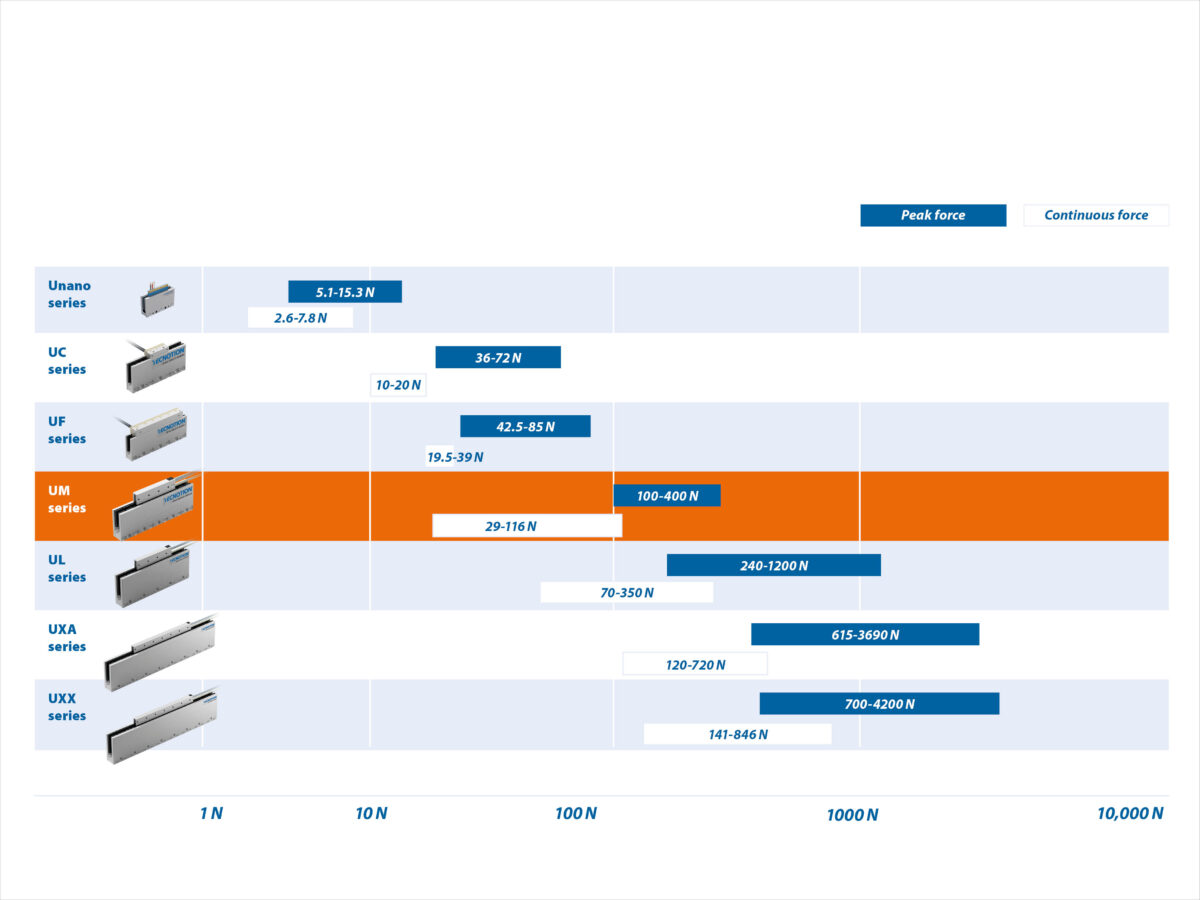

Find the best linear motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.
Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.
Mike Rolink and Stefan Jansen
Application Engineers
“Do you have a question about a motor? Or do you need technical support during an installation? Call us and one of our Application Engineers will help and support you throughout the entire process.”
