Torque motor |Manual| version 2.2
QTR 65 series
Compact sizing and low-voltage support
This motor is the smallest torque motor in the QTR range. Compact sizing and low voltage support make the 65 mm QTR motor ideal for robotics applications.
QTR 65 SERIES
The QTR 65 is the smallest torque motor in the Tecnotion torque motor range. This motor is optimized for small and low voltage applications. With a 65mm outer- and 17mm inner diameter this motor offers unique opportunities for small applications.

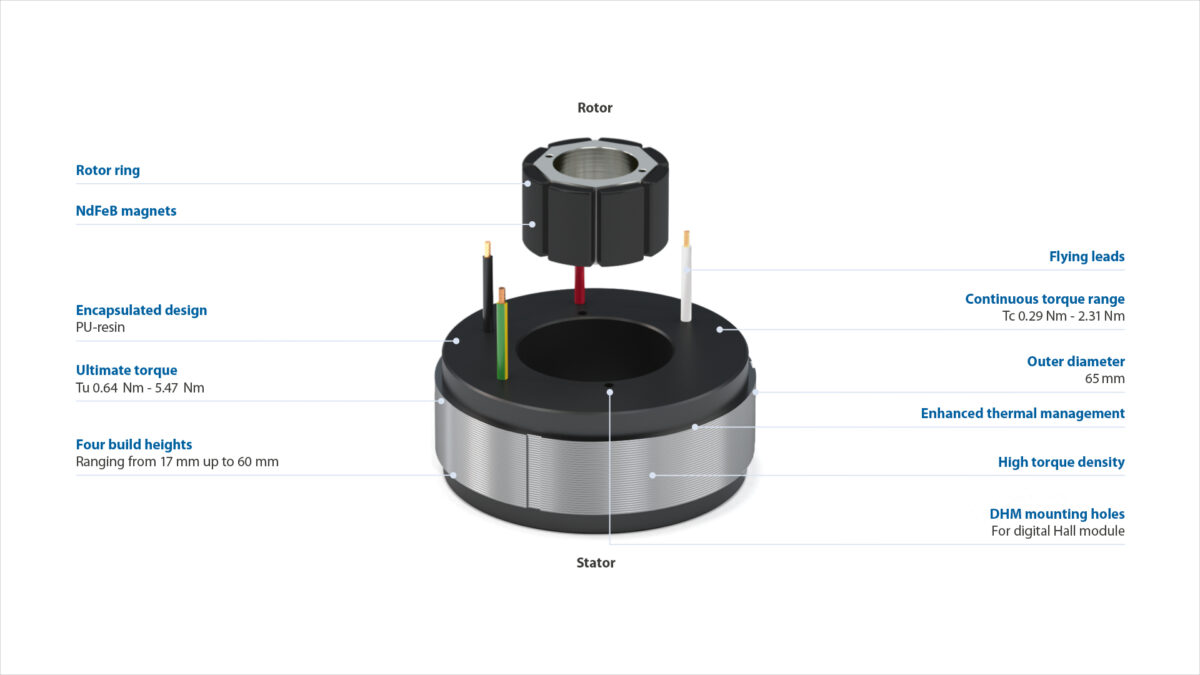

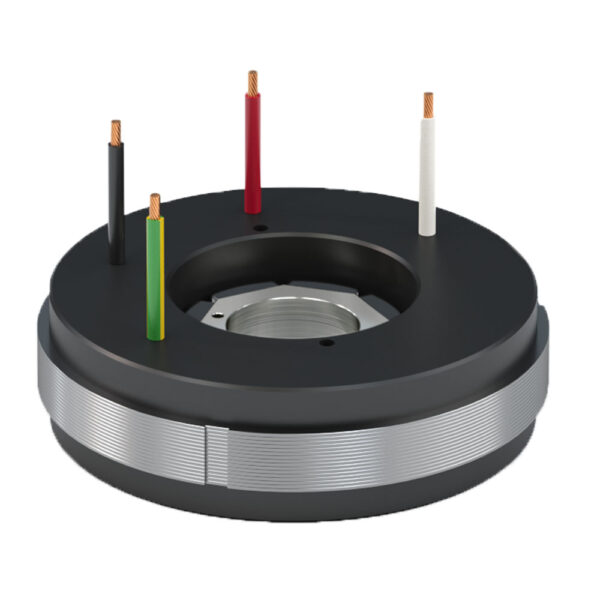

The 65 Series is available in four motor ‘heights’ or ‘sizes’, a 17, 25, 34, and 60 size motor. To provide maximum flexibility and integration the QTR 65 uses flying leads instead of a power cable. Check all advantages and features, for an explanation of torque motors.
Torque

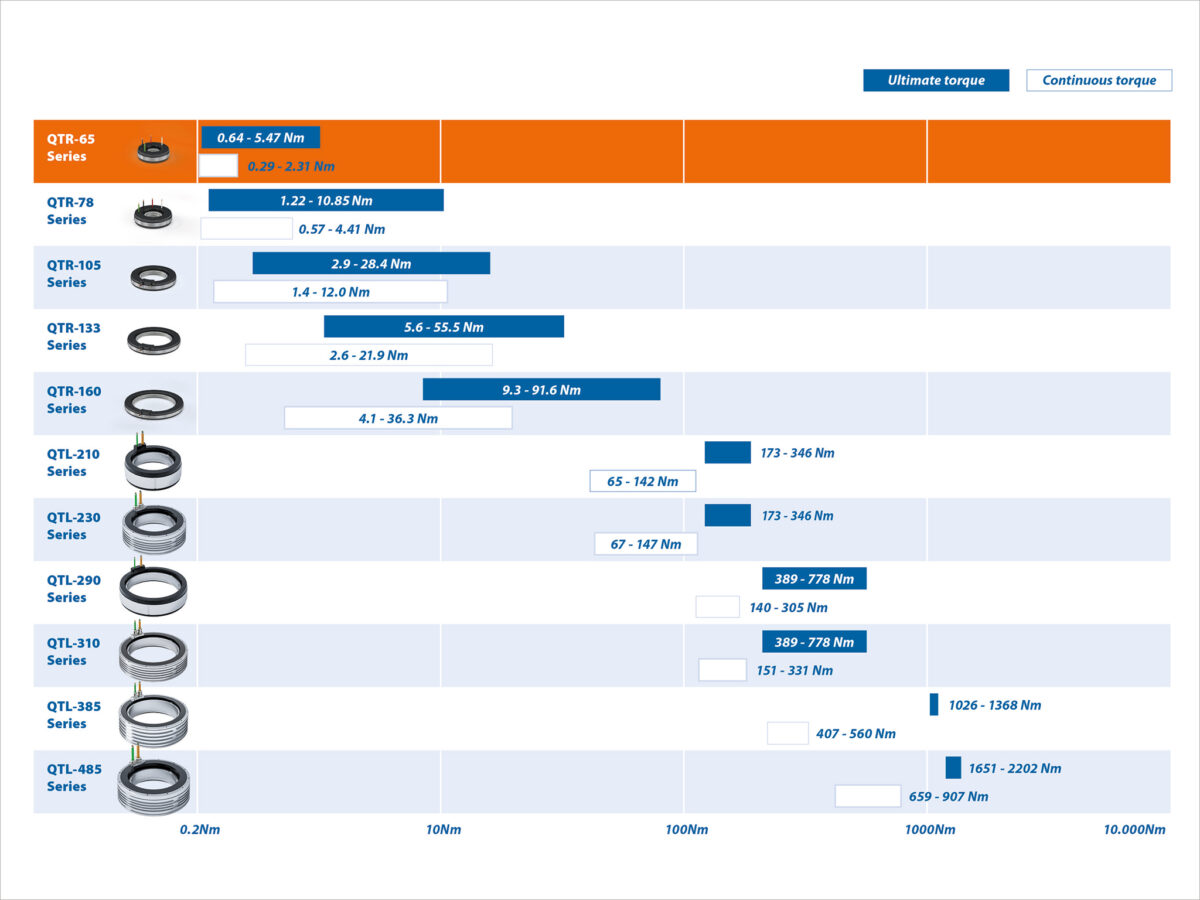

Ultimate torque: 0.64 – 5.47 Nm
Peak torque: 0.42 – 3.82 Nm
Continuous torque: 0.29- 2.31 Nm
The build heights are: 65-17 // 65-25 // 65-34 // 65-60
Properties
The new QTR 160 high stacks motors give the most torque while remaining compact. QTR high-stack motors are excellent for many semiconductor applications, such as wafer handling and translational movement. The motors ensure accurate rotation and safe transport to the next station.
Specifications
Resources
Torque motor |Brochure| Version 2.3
All linear motors |Brochure| Version 3.0
Torque motor |Webinar| Version 1.0

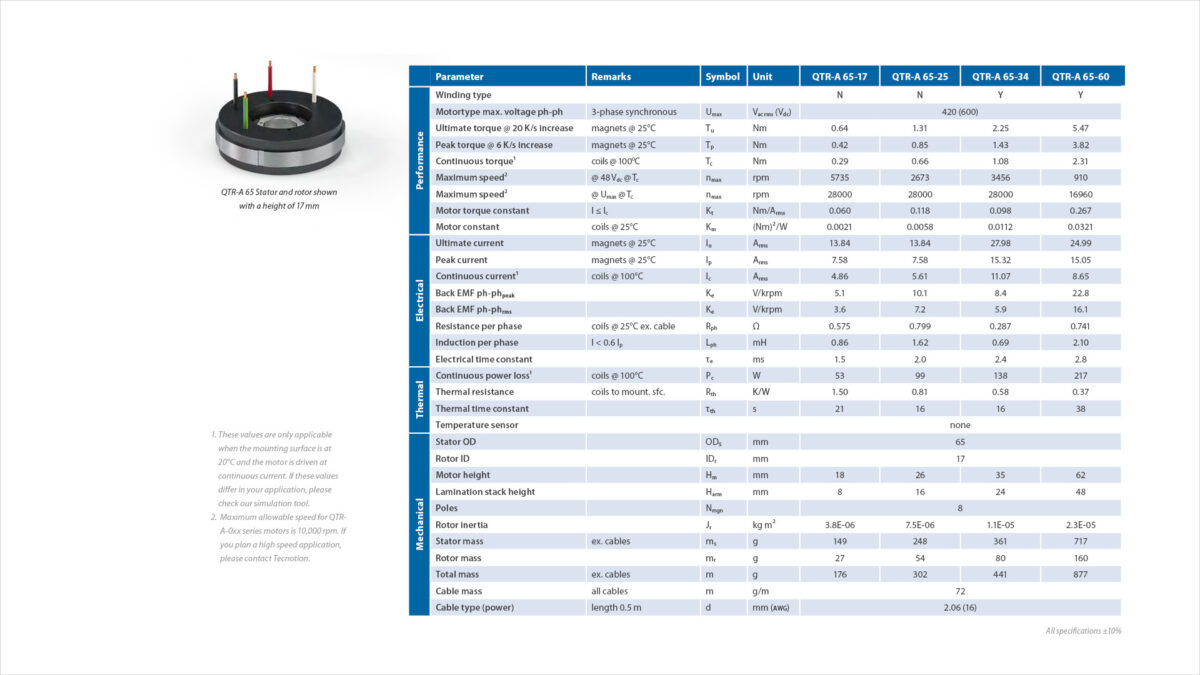

Torque motor |Spec sheet| 2.3

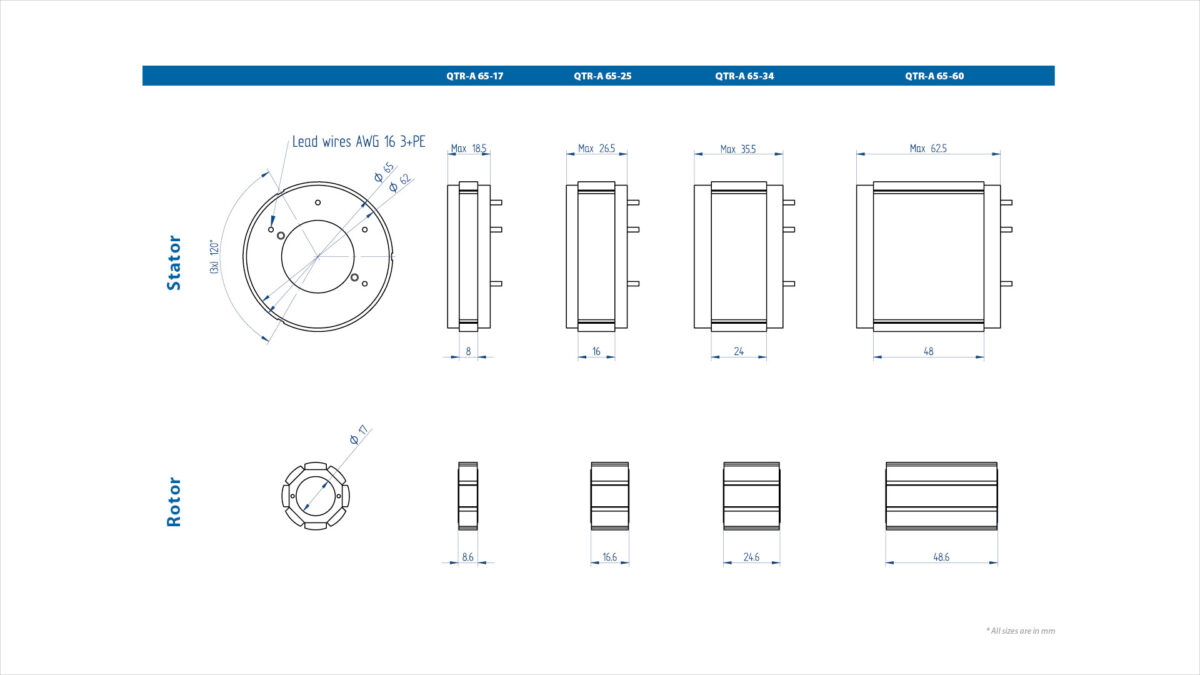

Torque motor |CAD file| version 1.0
