As with the 65 Series motor, the 78 series motor is optimized for low voltage applications with a small build-space available. This is a favourite motor in semiconductor machinery.

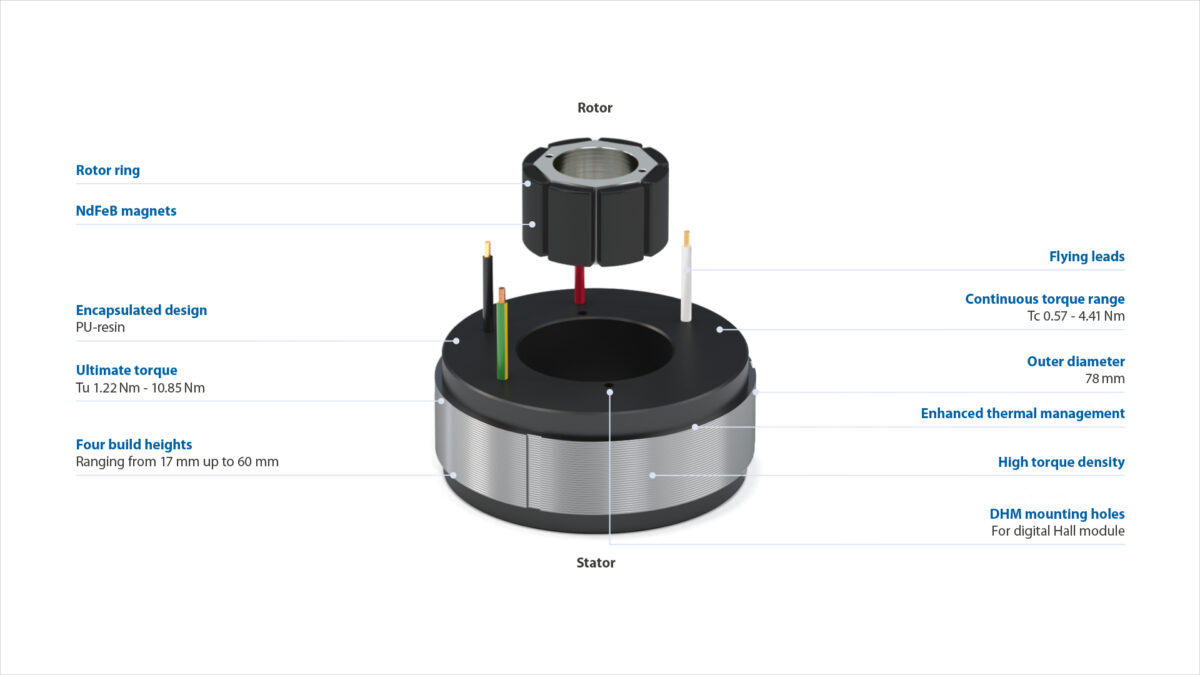

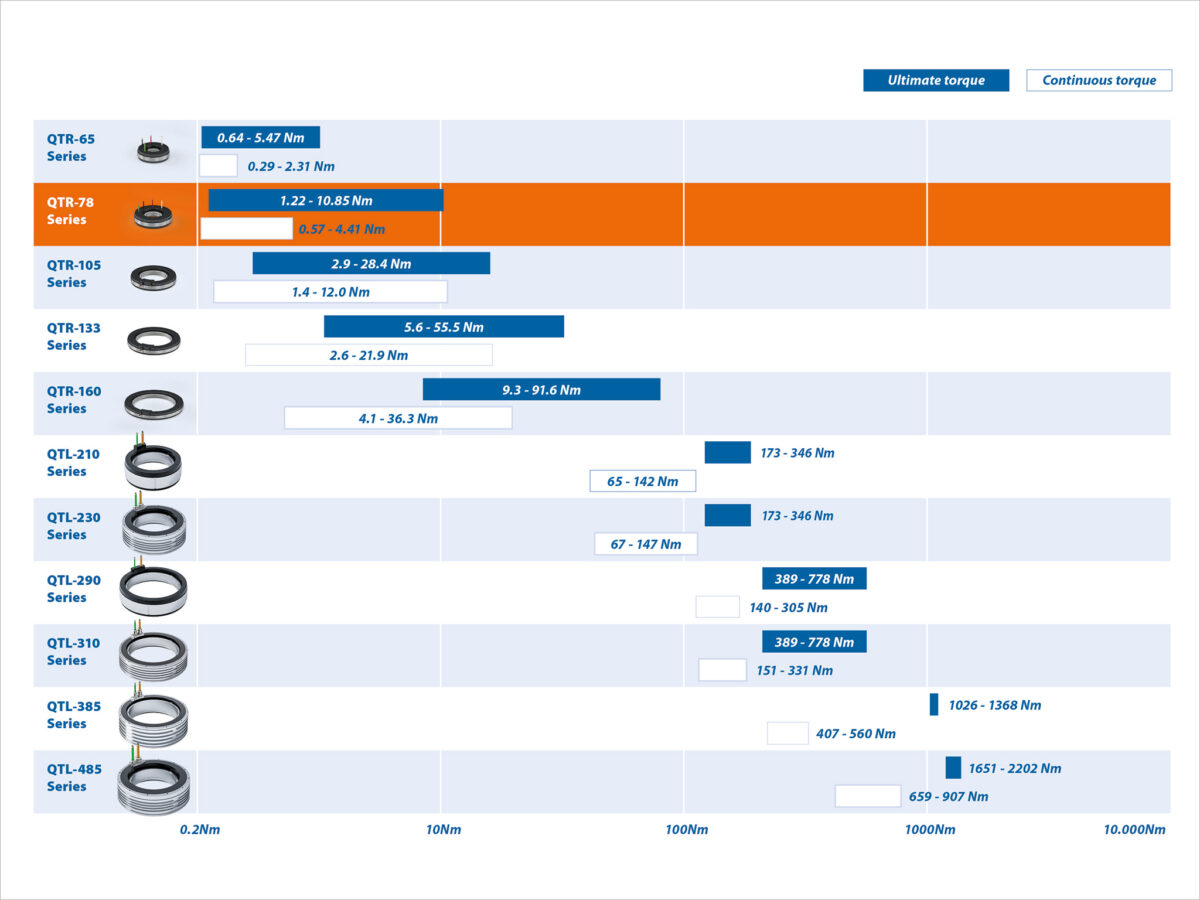

The QTR 78 is the second size available in the Tecnotion QTR range. This series offers a continuous torque ranging from 0.57 up to 4.41Nm. The largest QTR 78-60 motor offers a peak torque of over 7.5Nm.

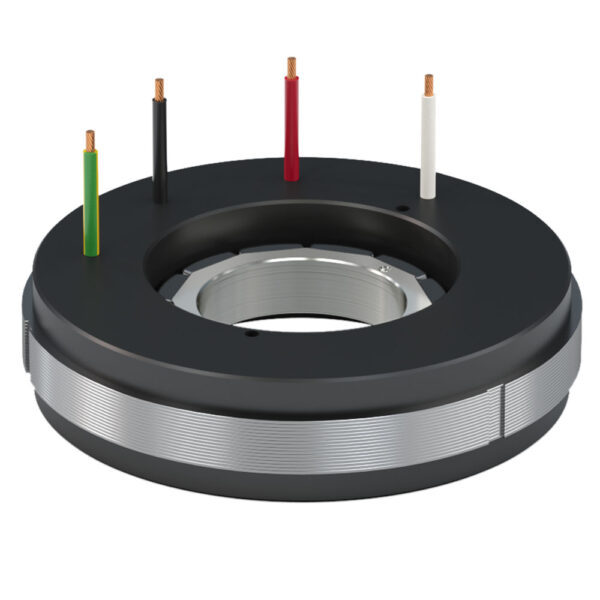

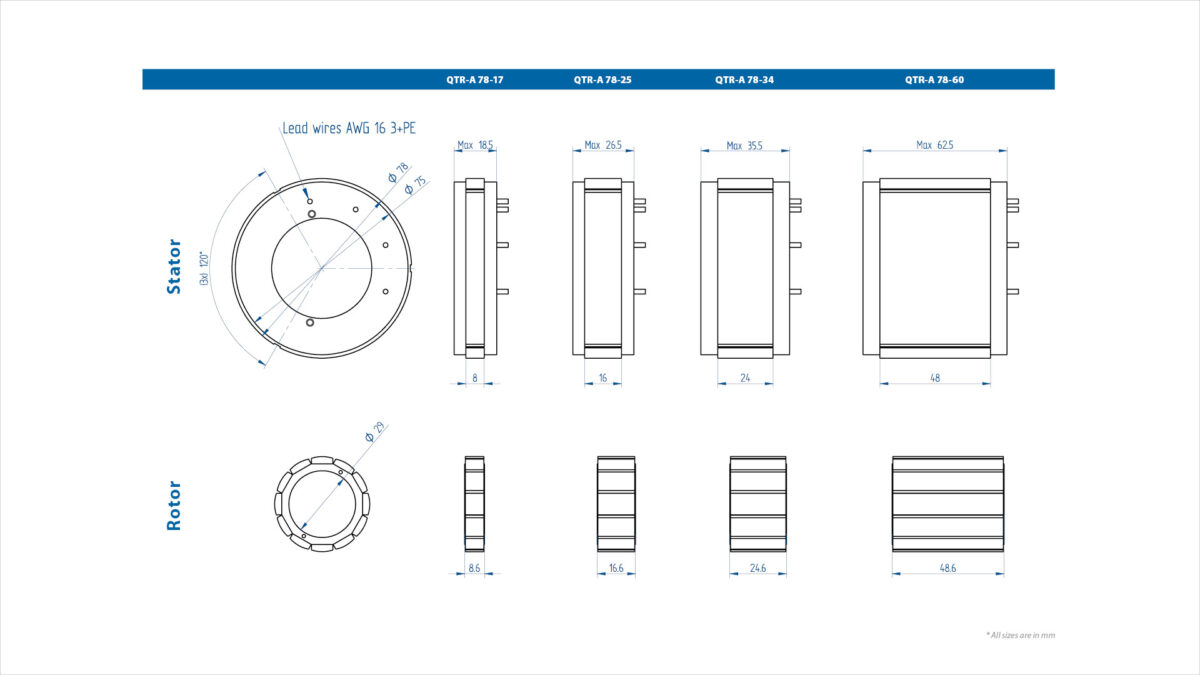

To provide maximum flexibility and integration the QTR 78 uses flying leads instead of a power cable. The build heights of the QTR 78 are: 78-17 // 78-25 // 78-34 // 78-60. Check all advantages and features, for an explanation of torque motors.
The new QTR 160 high stacks motors give the most torque while remaining compact. QTR high-stack motors are excellent for many semiconductor applications, such as wafer handling and translational movement. The motors ensure accurate rotation and safe transport to the next station.
Torque motor |Manual| version 2.2
Torque motor |Brochure| Version 2.3
All linear motors |Brochure| Version 3.0
Torque motor |Webinar| Version 1.0

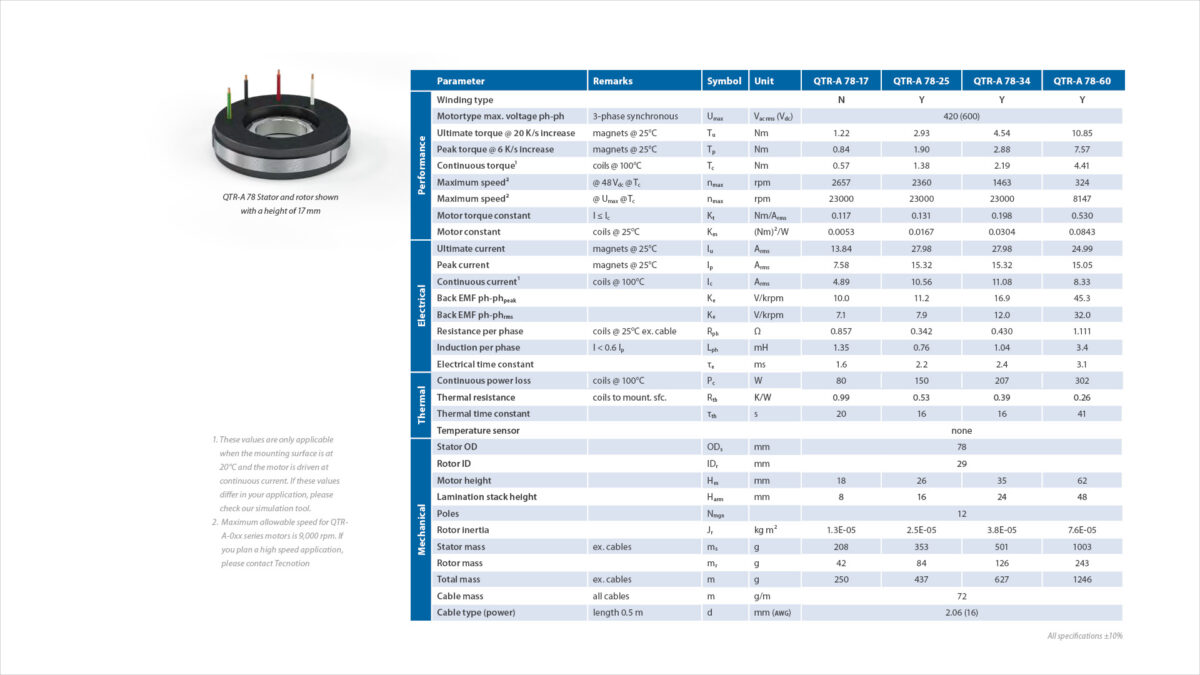

Torque motor |Spec sheet| 2.3
Torque motor |CAD file| version 1.0
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
Find the best torque motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.
Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.
