Iron core motor |Brochure| 1.2
TD82 series
Maximum stroke, Maximum force density
Ultra short build size allows for the longest available stroke length.
Iron core motor TD82 series

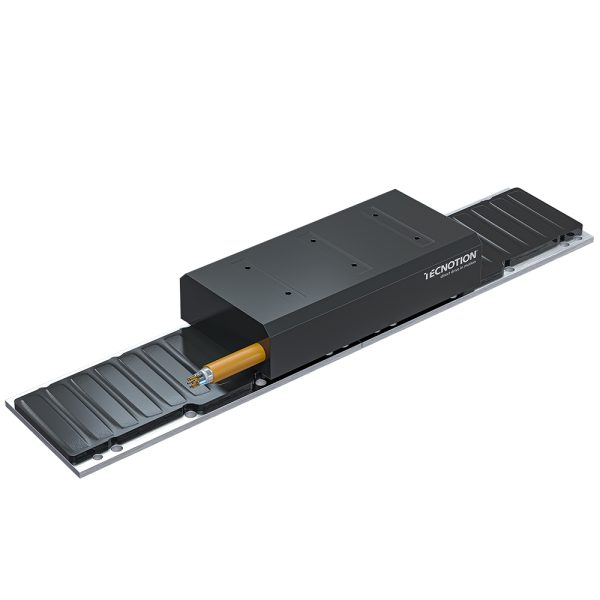

Featuring short coils, the TD82 Series reduces required magnet plate length, optimizing stroke length for greater system efficiency. Engineered for demanding applications that require long stroke lengths and high continuous force, the TD82 series brings impressive force density to an ultra-short motor design.

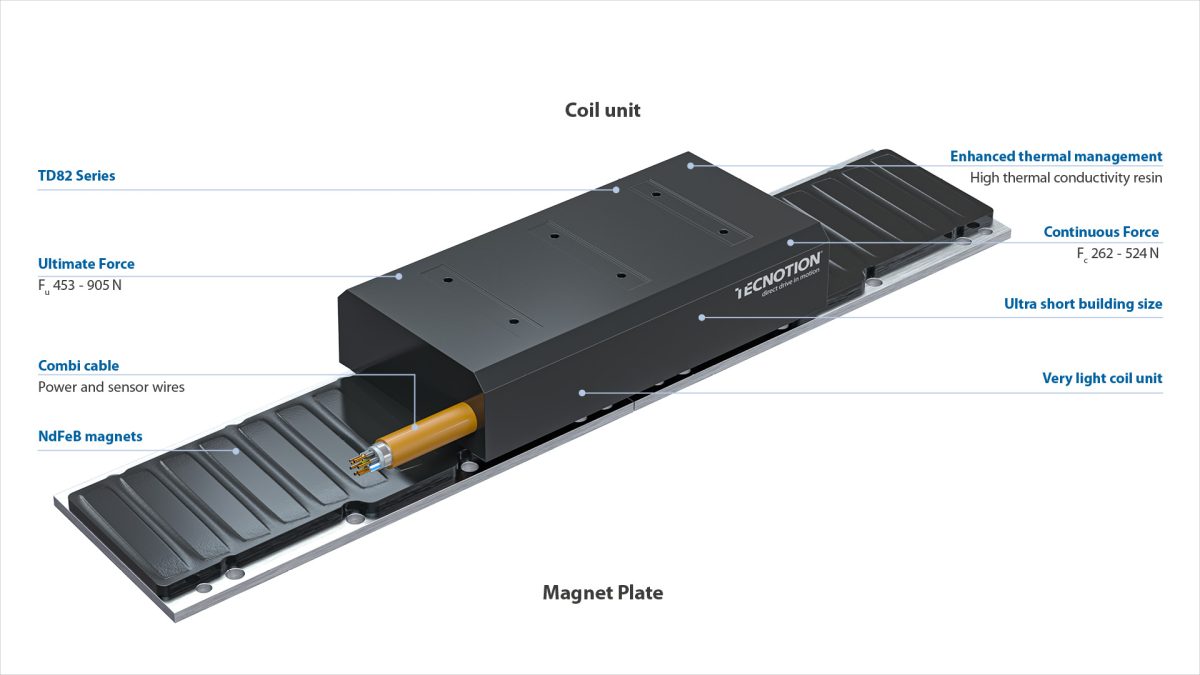

The lightweight coil unit enhances dynamics, while high thermal conductivity resin and the Pt1000 sensor work together for superior thermal regulation. The hybrid cable with combined power and sensor wires minimizes bulk, making it easier to integrate into compact machine layouts. If your application demands high performance in minimal space, the TD82 offers an optimal balance of power, size, and reliability.
Build height 41 mm | Coil unit width 82 mm

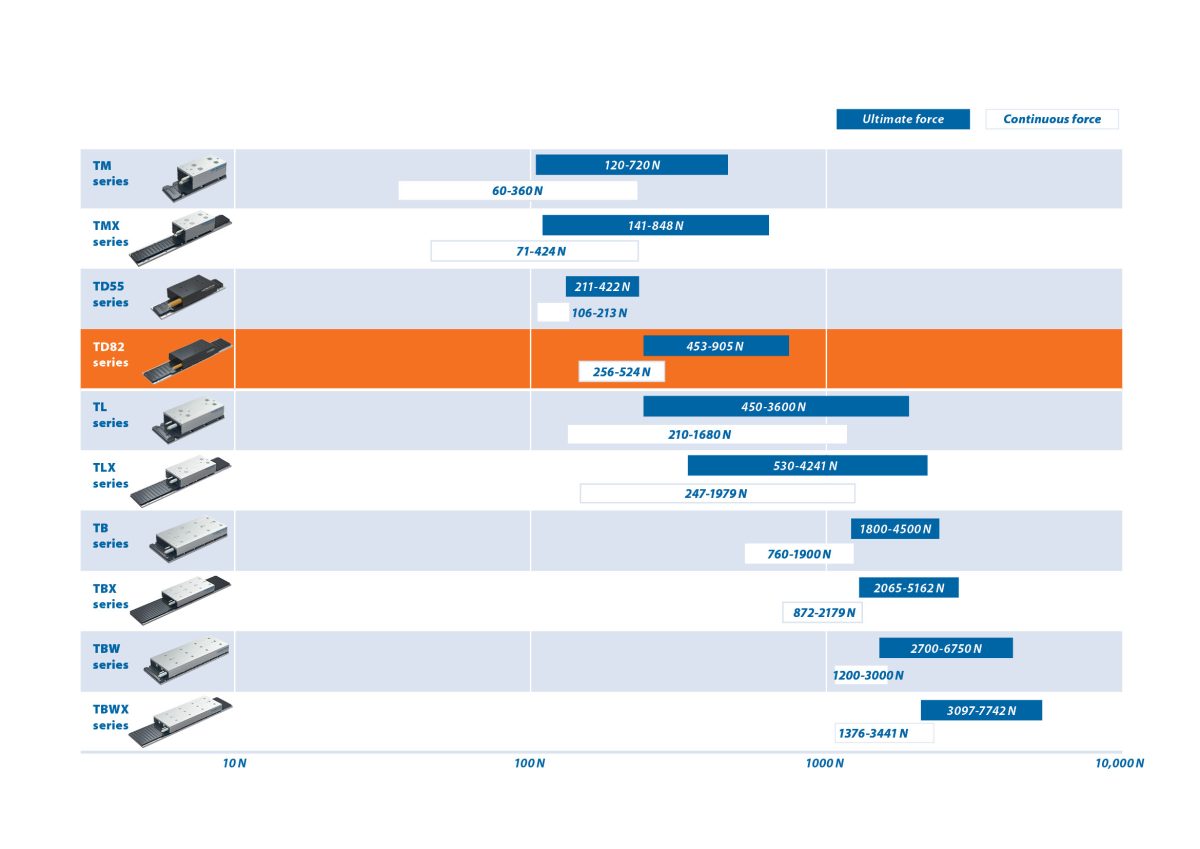

Force
Ultimate force: 211 – 905 N
Peak force: 161 – 805 N
Continuous force: 106 – 524 N
Coil Units: TD82-3, TD82-6 – Magnet Plates: TD82-192, TD82-288
Properties

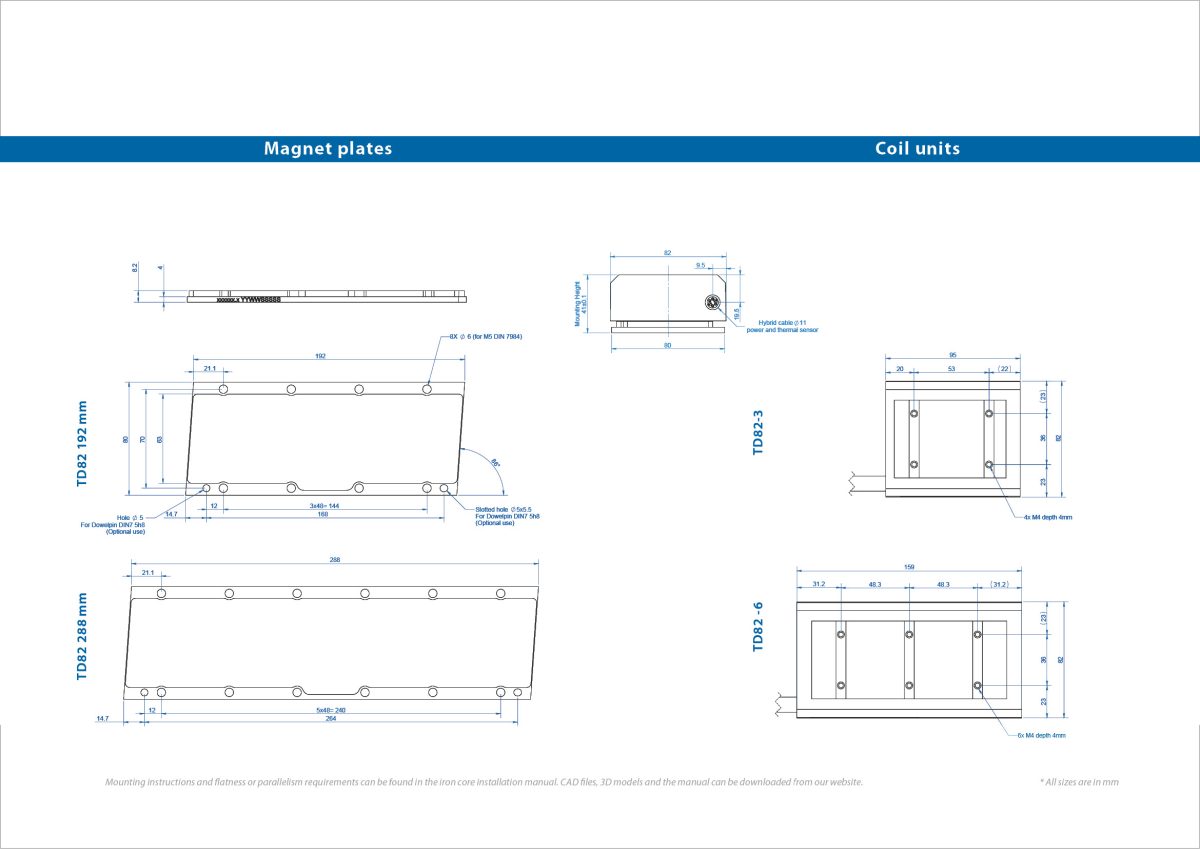

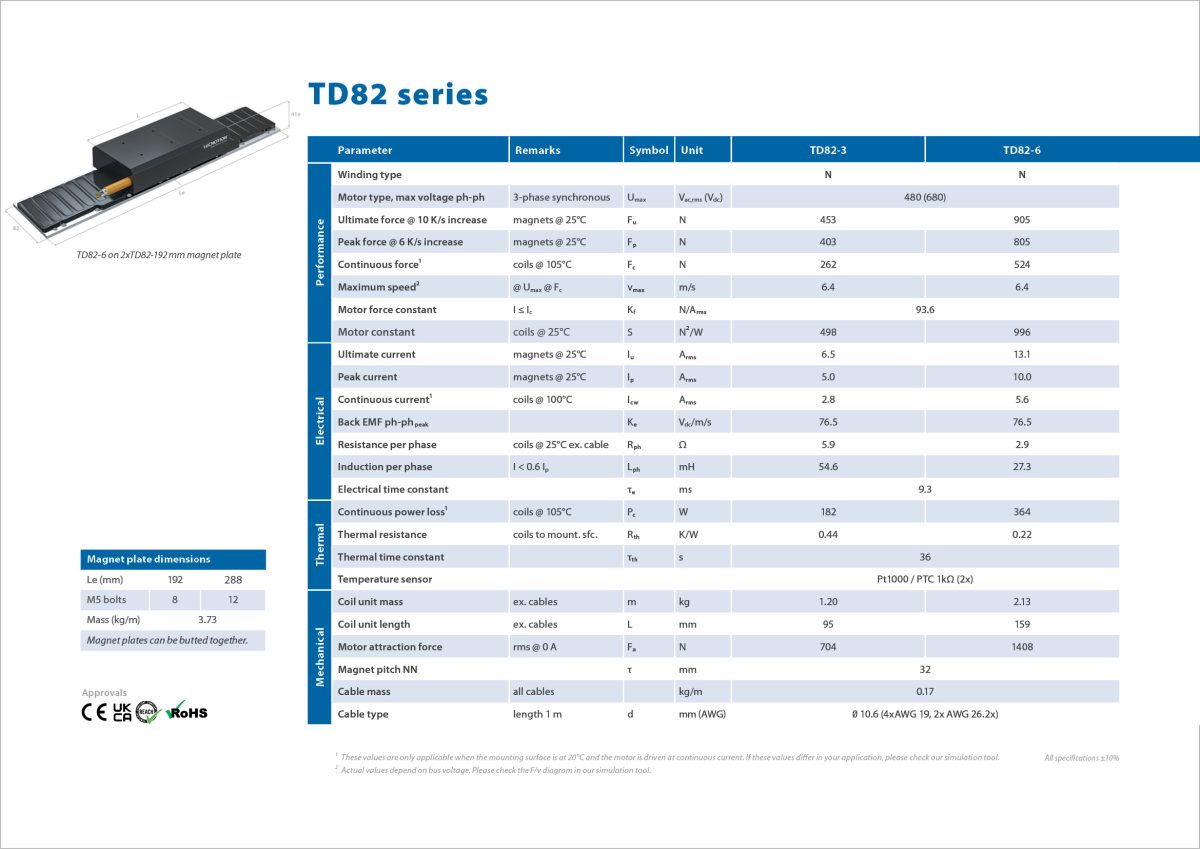

Specifications
Increase the available force of your machine
Coupling of iron core motors
Resources
Iron core motor |Leaflet| version 1.0
Iron core motor |Spec sheet| 1.2
Iron core motor |Spec sheet| 1.2
Iron core motor |Manual| version 2.1
Iron core motor |CAD file| version 1.1
Iron core motor |CAD file| 1.1
