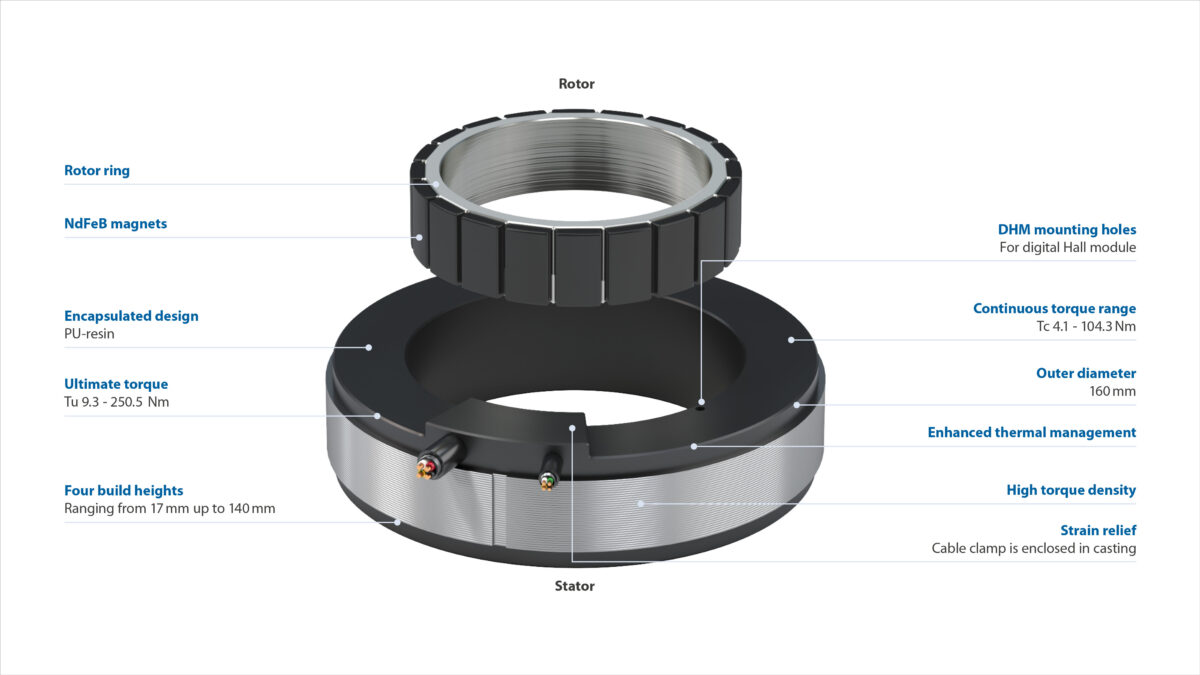

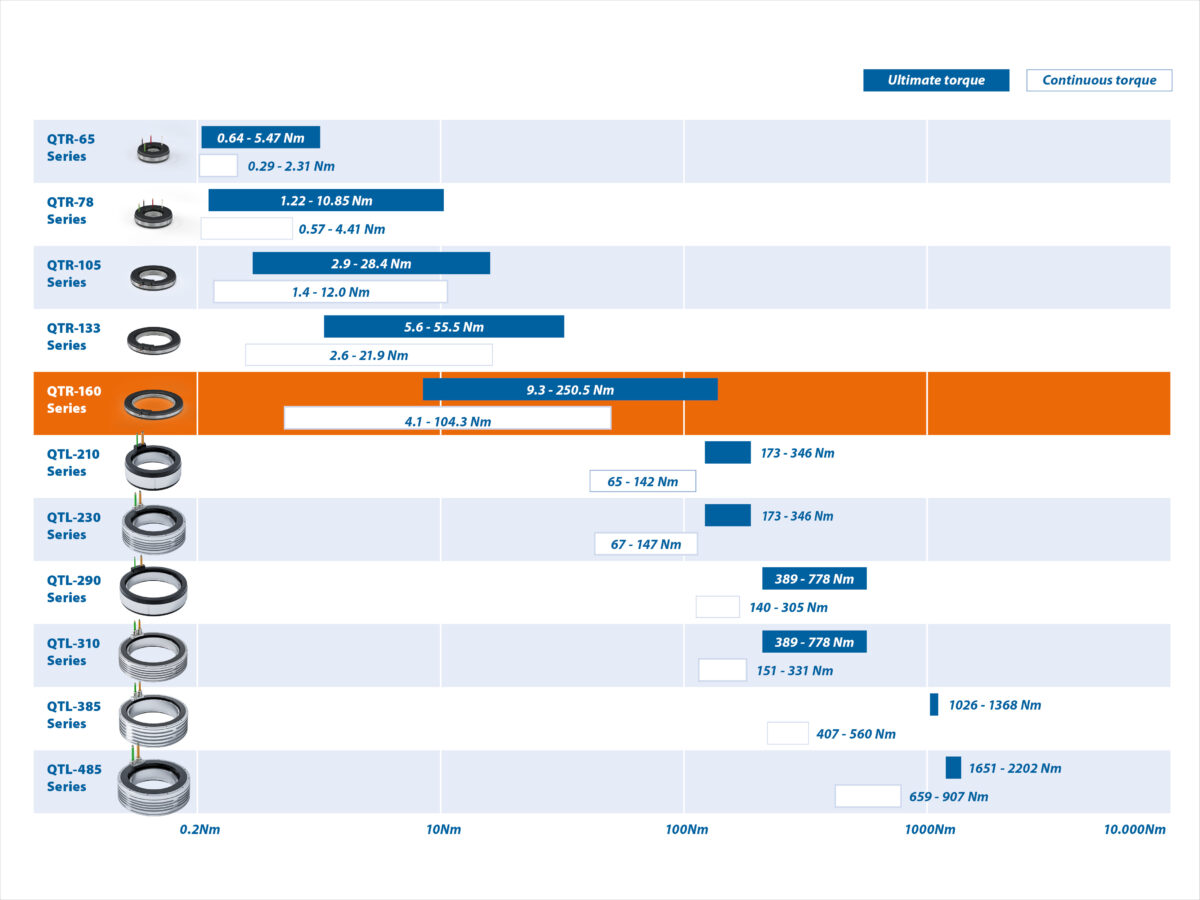

The QTR 160 series is the largest in diameter of the QTR motor range. They are the best choice for implementing factory automation to the fullest.
The QTR 160 series is the largest in diameter of the medium QTR motor range. The smallest motor measures just 17 mm in height with a continuous torque 4.1Nm, the largest motor excels with a 158.8 Nm peak torque.
Power and size make that the QTR 160 Series motors can often replace large factory machinery. They are the best choice when implementing factory automation to the fullest. Check all advantages and features, for an explanation of torque motors.

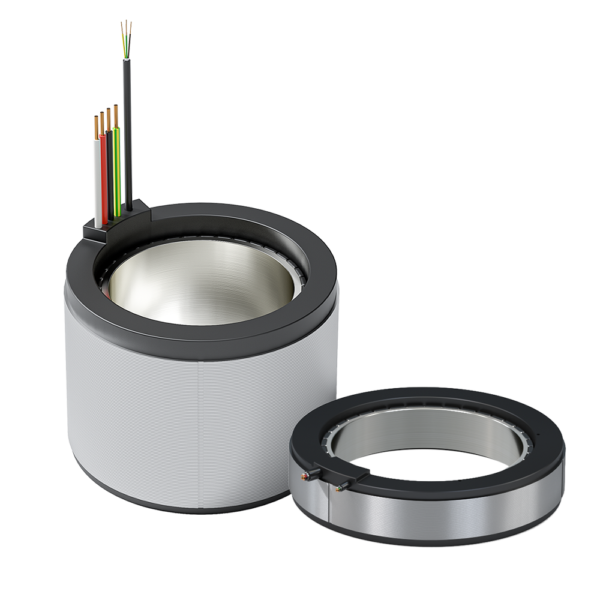

The new QTR 160 high stacks motors give the most torque while remaining compact. QTR high-stack motors are excellent for many semiconductor applications, such as wafer handling and translational movement. The motors ensure accurate rotation and safe transport to the next station.
Torque motor |Manual| version 2.2
Torque motor |Brochure| Version 2.3
Torque motor |Webinar| Version 1.0
Torque motor |Leaflet| version 1.0

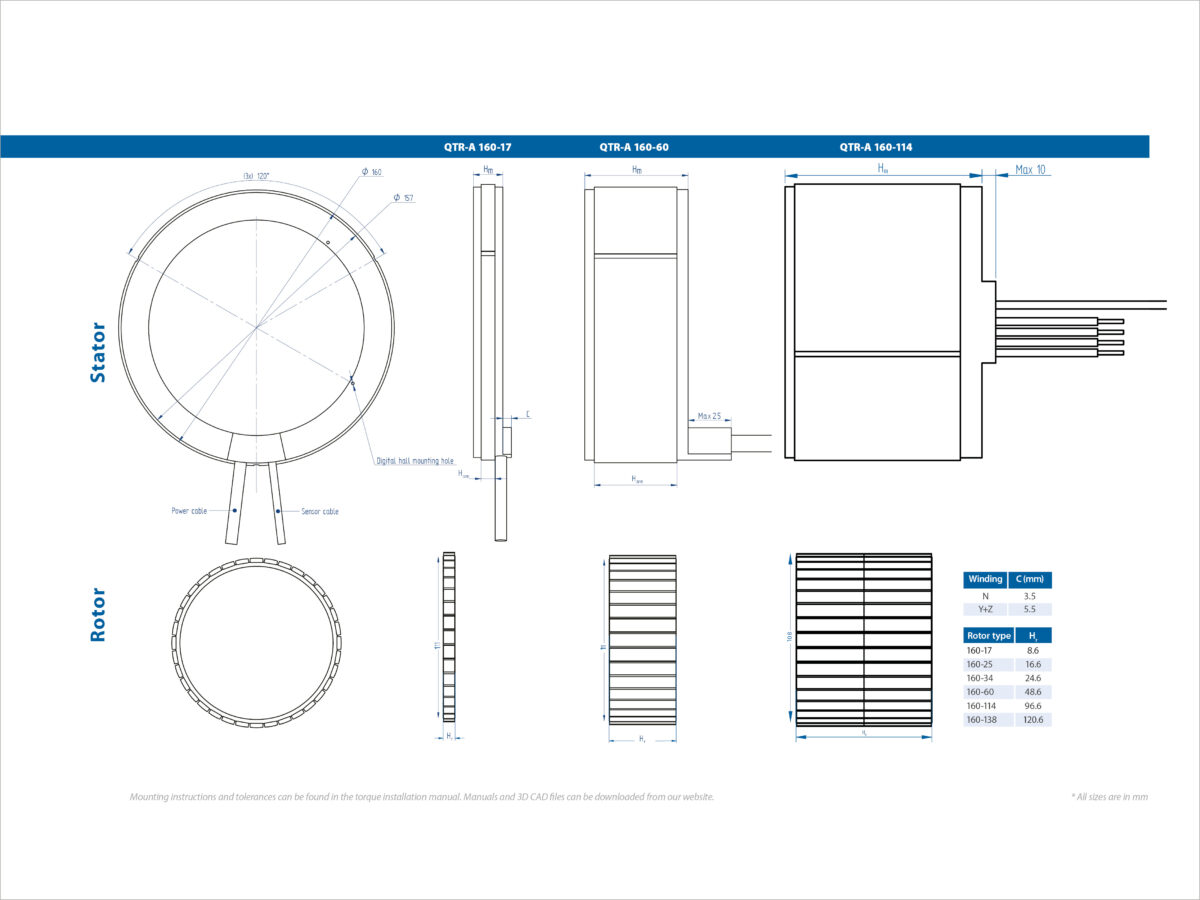

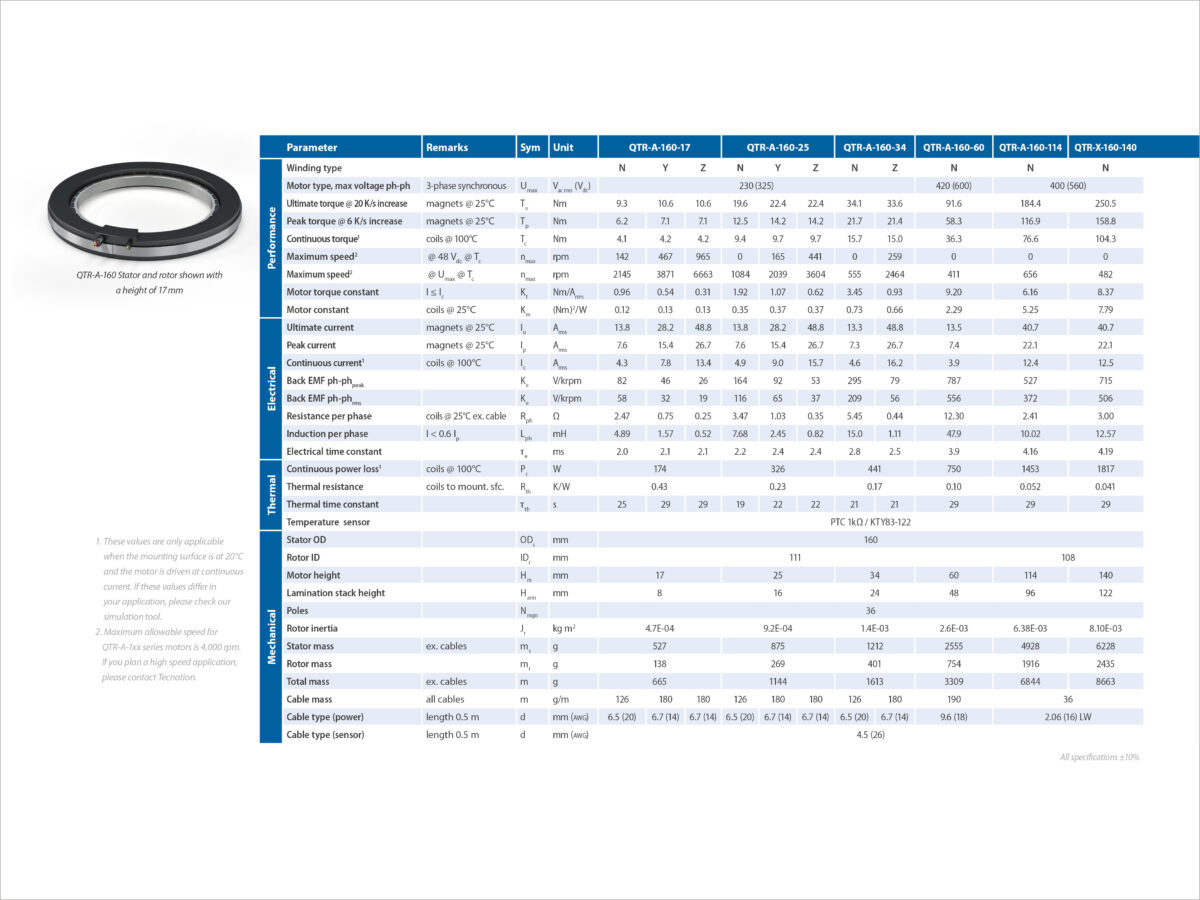

Torque motor |Spec sheet| version 2.3
Torque motor |CAD file| version 1.0
Torque motor |CAD file| version 2.0
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
Find the best torque motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.
Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.
Mike Rolink and Stefan Jansen
Application Engineers
“Do you have a question about a motor? Or do you need technical support during an installation? Call us and one of our Application Engineers will help and support you throughout the entire process.”
