Iron core motor |Brochure| 1.2
TD55 series
Unique low build height
The perfect addition to our motor portfolio, compact performance in a low-profile design

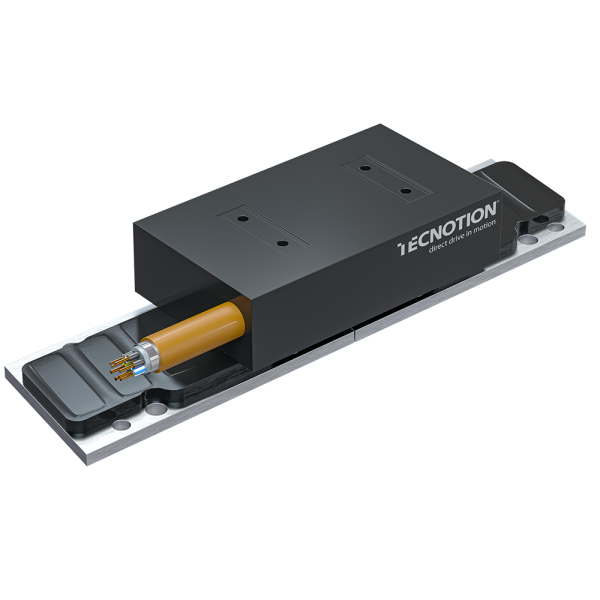

Iron core motor TD55 series
Built for tight spaces—without sacrificing performance. The TD55 series delivers serious continuous force in a surprisingly compact design. With its low build height, this motor is ideal for OEM applications where space is limited but reliability and output cannot be compromised.
Despite its slim dimensions, the TD55 features a lightweight coil unit, improving dynamic responsiveness. Thermal performance is carefully managed: a high-conductivity resin and an integrated Pt1000 sensor ensure stable temperature monitoring. The hybrid combi cable combines power and sensor wiring, offering improved flexibility and streamlined cable management.
Build height 32,1 mm | Coil unit width 55 mm

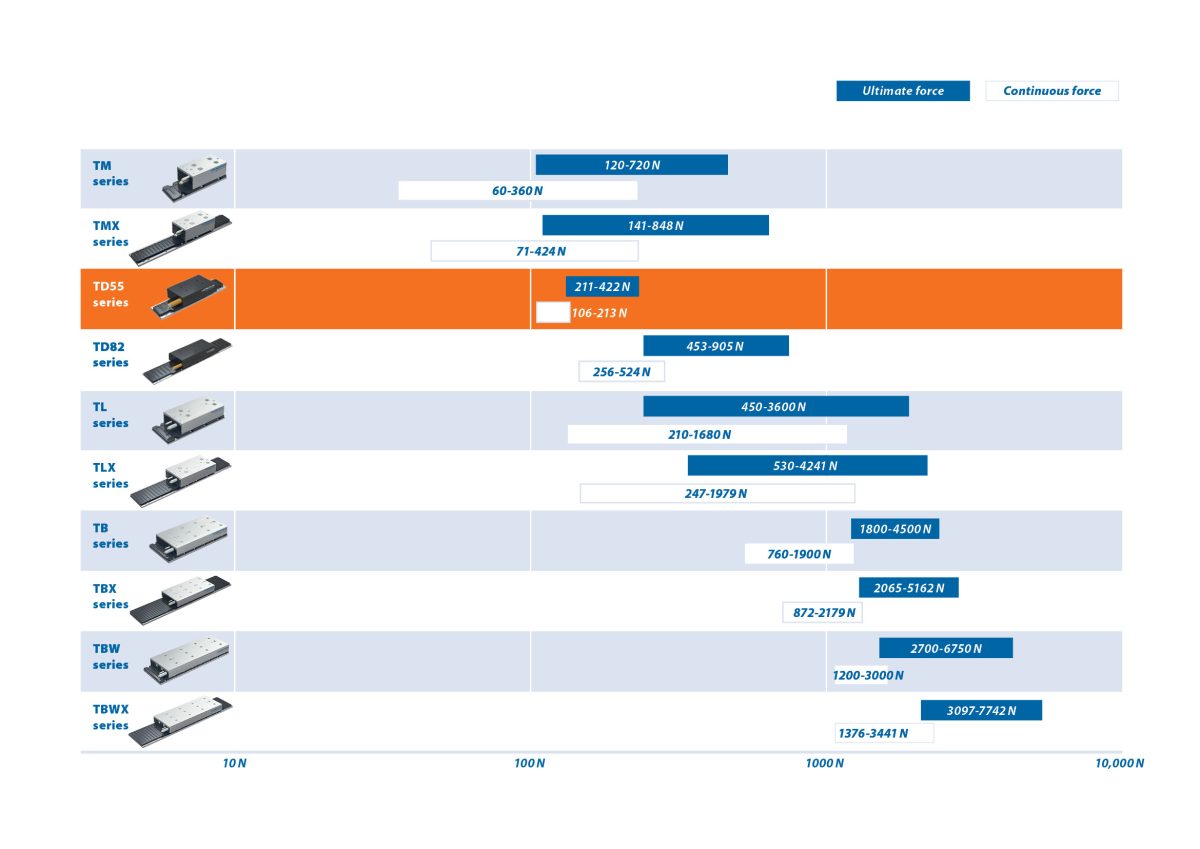

Force
Ultimate force: 211 – 422 N
Peak force: 161 – 323 N
Continuous force: 106 – 213 N
Coil Units: TD55-3, TD55-6
Magnet Plates: TD55-96, TD55-384

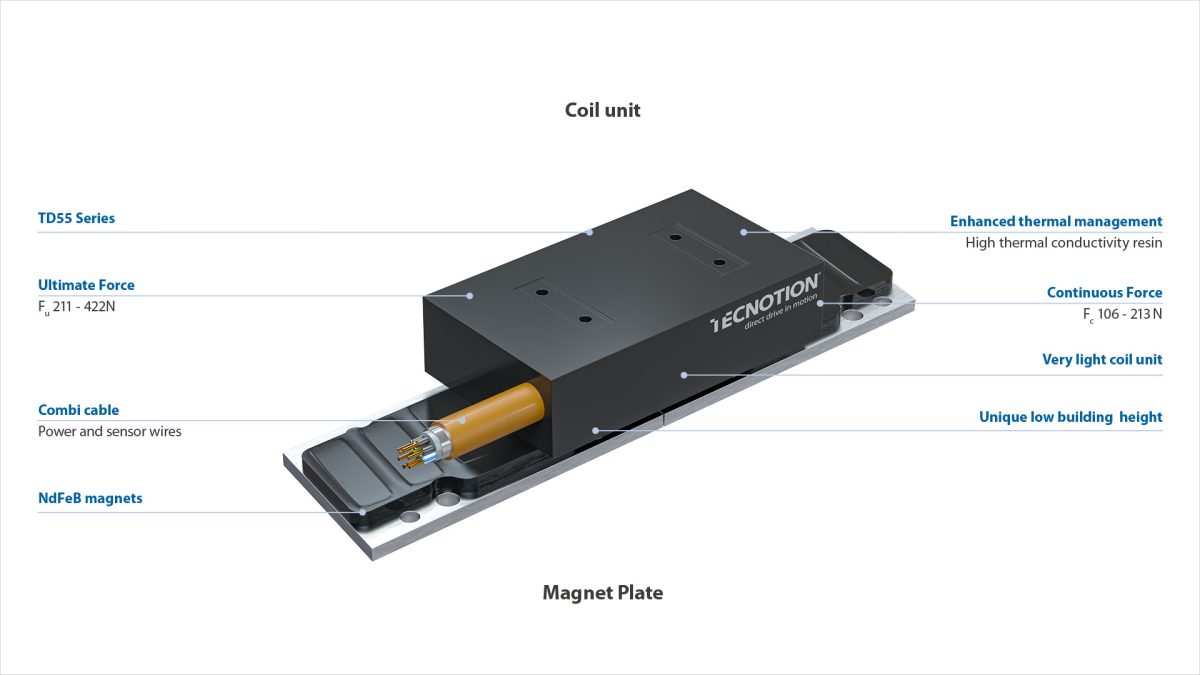

Properties

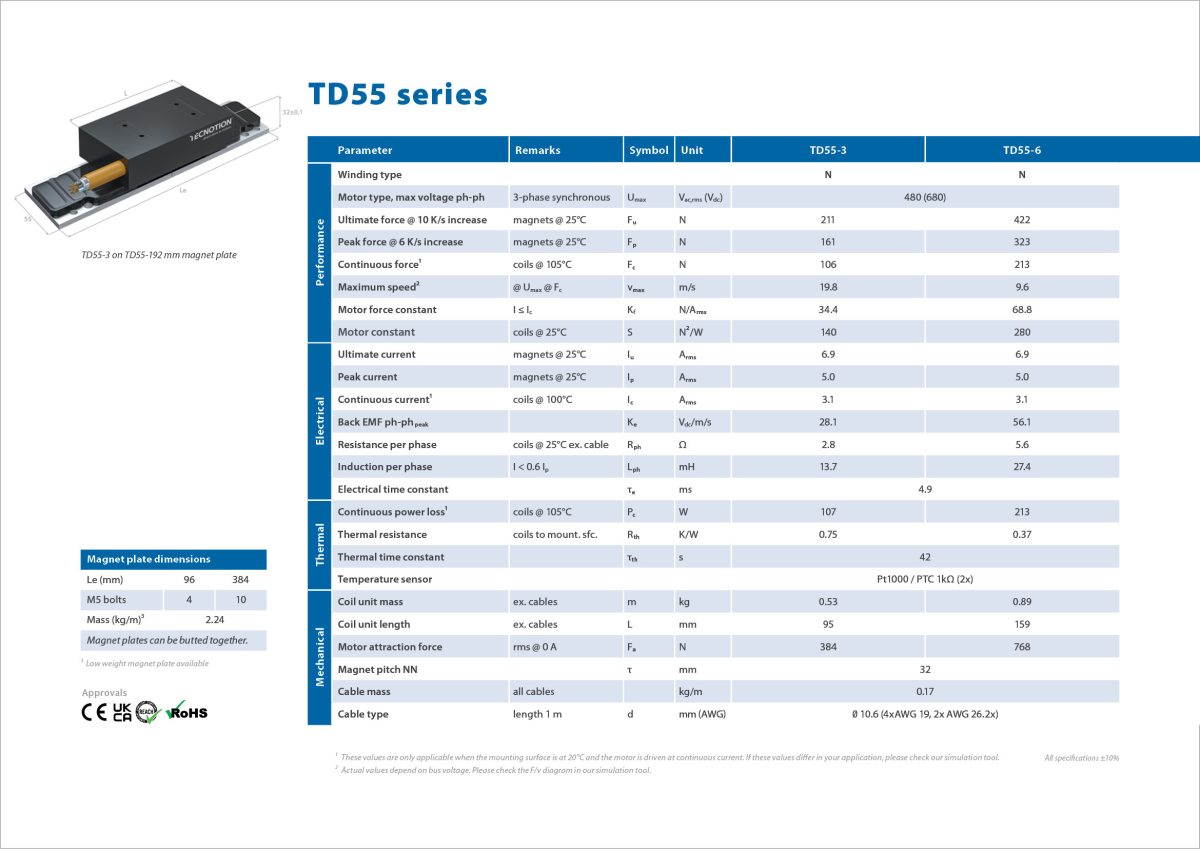

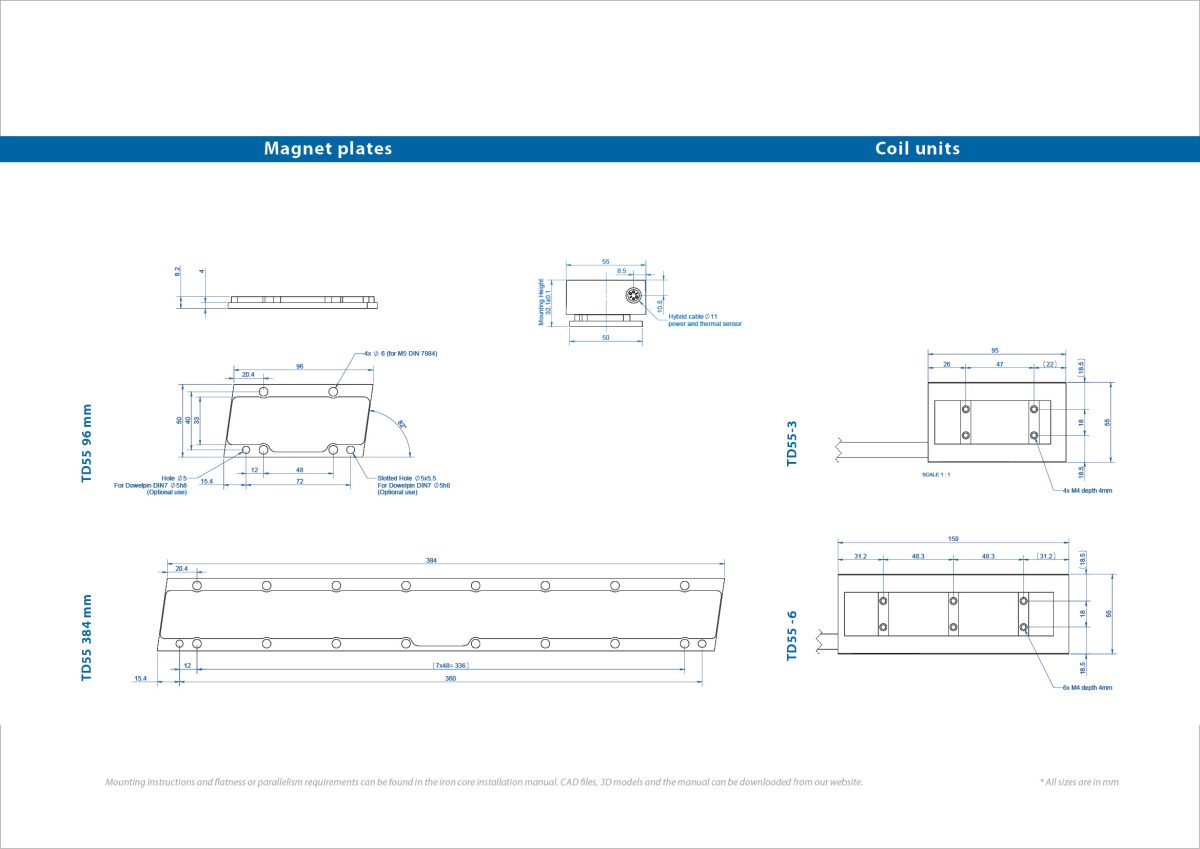

Specifications
Increase the available force of your machine
Coupling of iron core motors
Resources
Iron core motor |Leaflet| version 1.0
Iron core motor |Spec sheet| 1.2
Iron core motor |Manual| version 2.1
Iron core motor |CAD file| version 1.1
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
