It features a fully integrated, highly efficient cooling system that enables the TBW to reach even higher continuous forces than the standard version and sustain extreme accelerations while maintaining its sub-micron position accuracy.

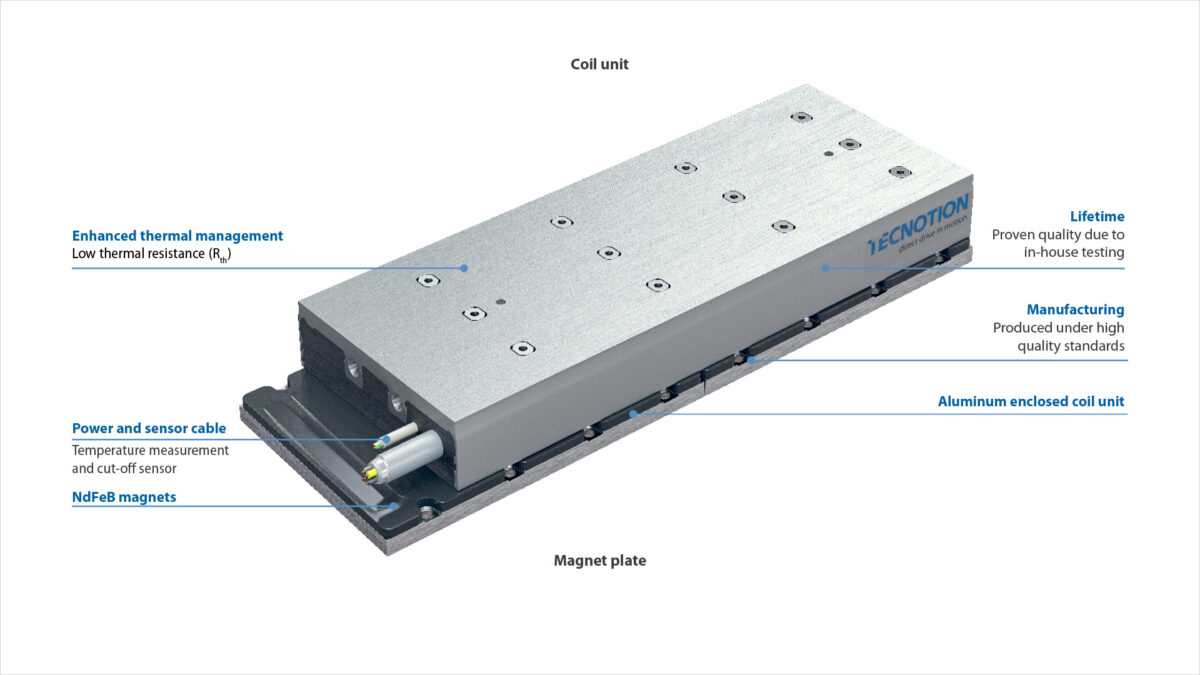

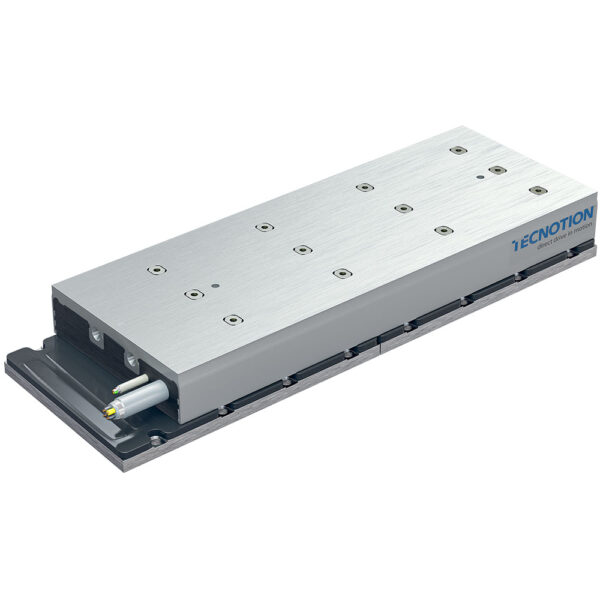

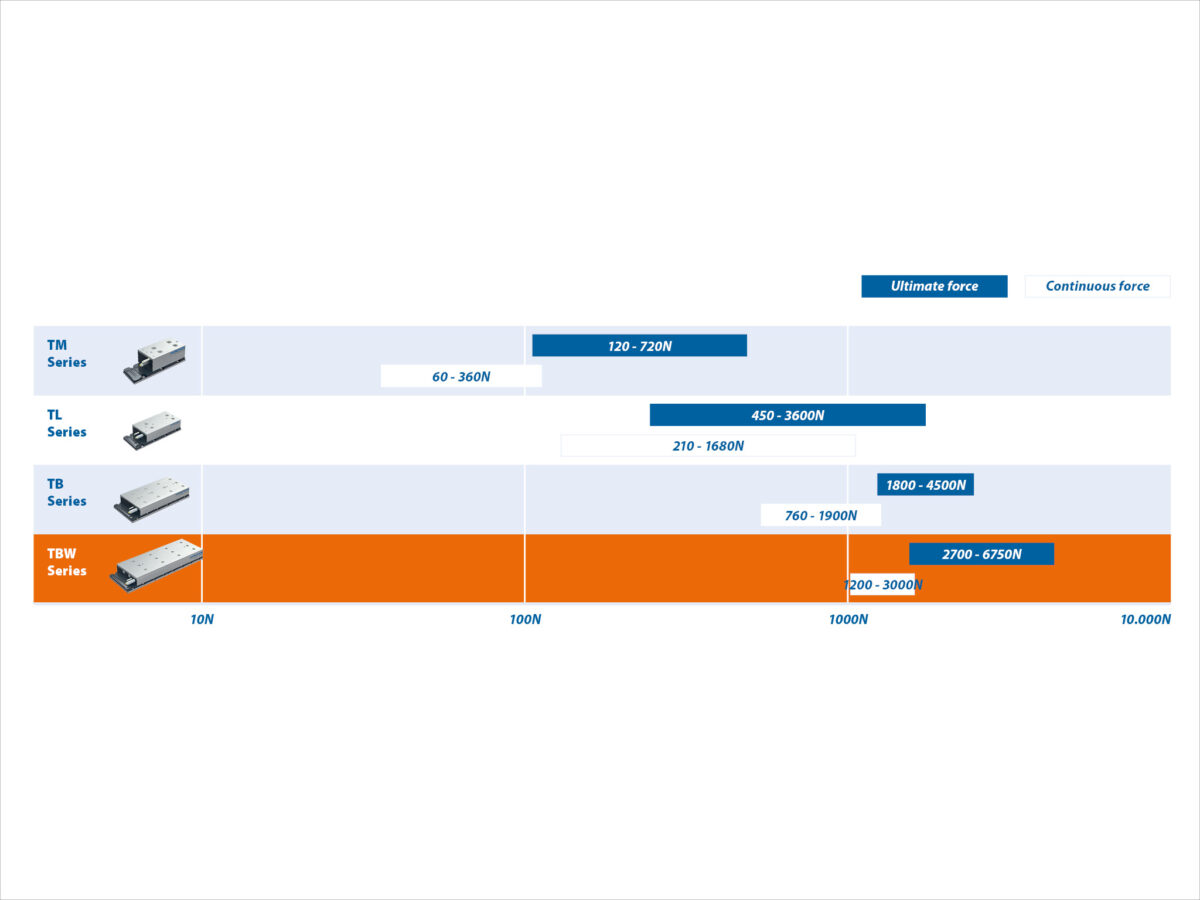

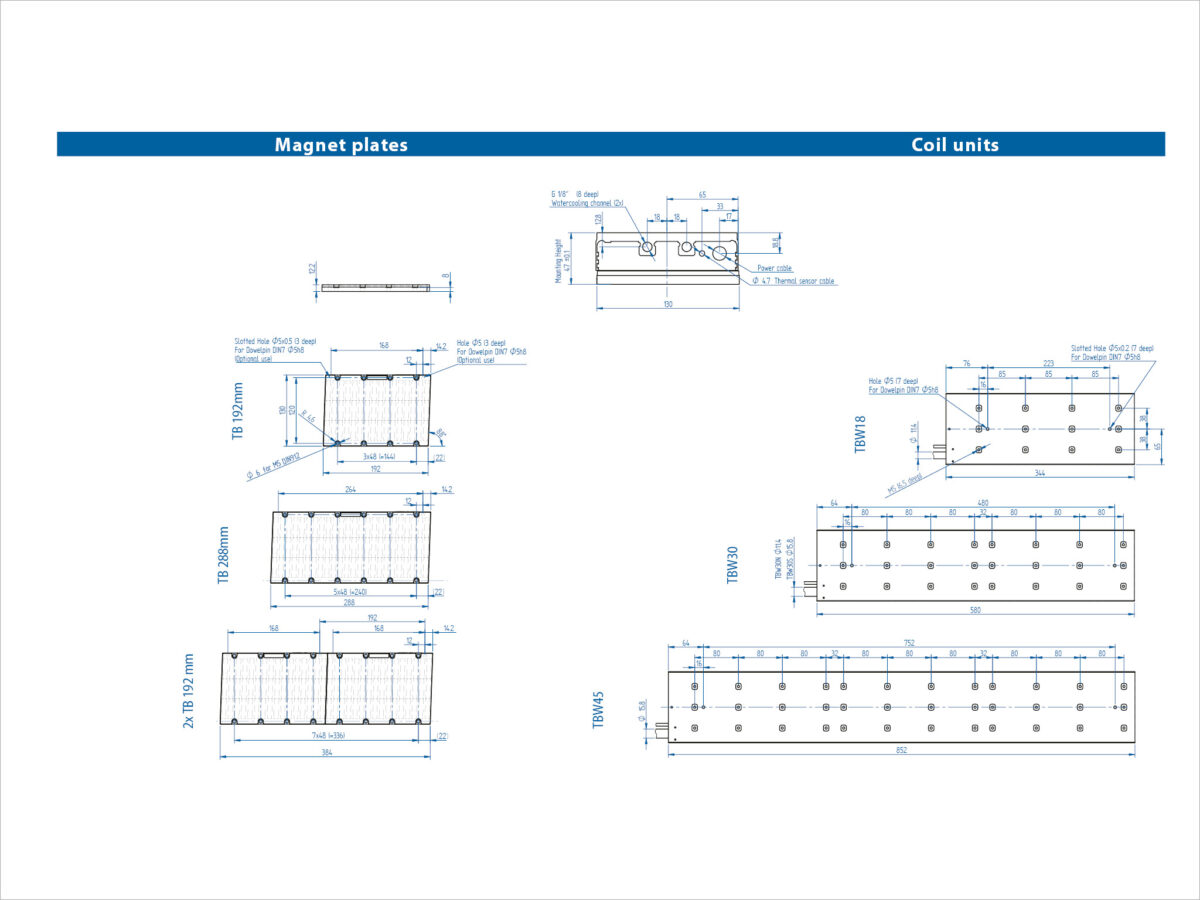

The TBW iron core linear motor series is the water cooled variant of the TB series. It features a fully integrated, highly efficient cooling system that enables the TBW to reach even higher continuous forces than the standard version and sustain extreme accelerations while maintaining its sub-micron position accuracy.
Since heat is not dissipated into the machine´s construction, it is especially suited for applications where thermal management is an issue.
Iron core motor |Brochure| 1.2
Iron core motor |Webinar| Version 1.0

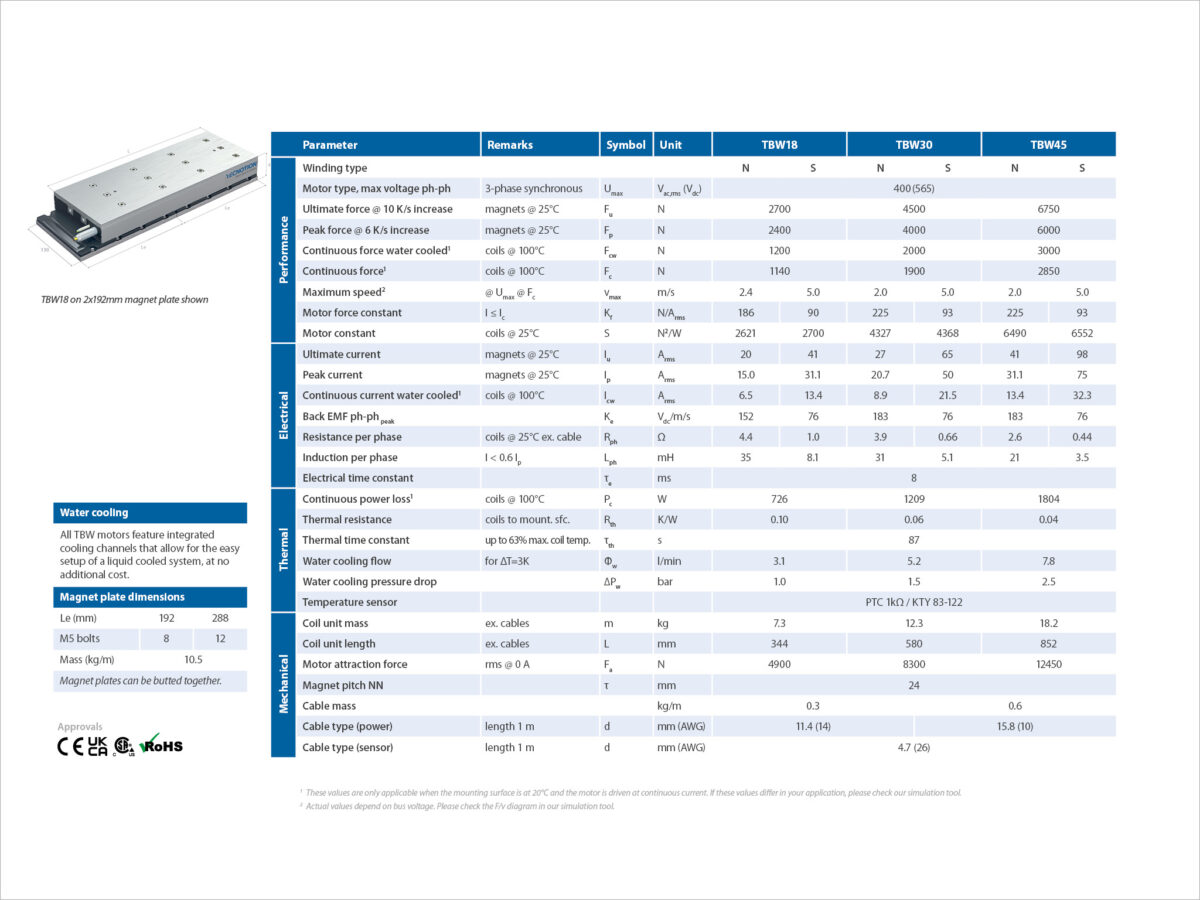

All linear motors |Spec sheet| version 1.0
Iron core motor |Manual| version 2.1
Iron core motor |CAD file| version 1.0
Iron core motor |CAD file| version 1.0
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.

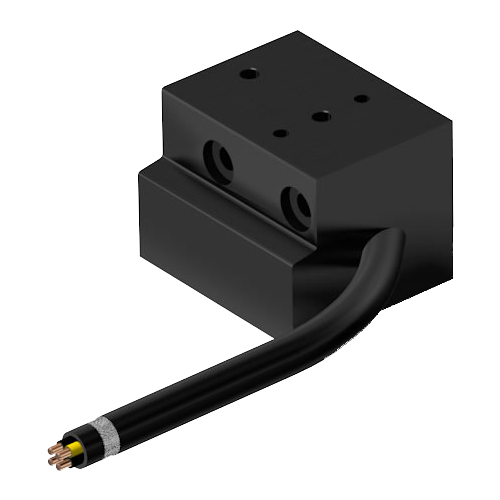

For commutation, Tecnotion has an optional Digital Hall Module that can be used with our entire range of linear motors. Its sensors provide 3 digital outputs, each phase shifted 120 degrees, to determine the electrical angle between coils and magnets. If you do not use a controller that allows you to commutate within the servo drive, this module can be a cost-effective alternative. The digital Hall module requires a 4.5 to 28Vdc power supply.
Linear motors can be positioned extremely accurately by using optical encoders and rulers. If this is not required this expensive setup can be replaced by an Analog Hall module. This module uses the magnet track, as opposed to the ruler, as the linear scale. It can be easily mounted on our iron core motors and communicates with practically all standard servo controllers. The Analog Hall module requires a standard 5Vdc power supply.
