Torque motor |Manual| version 2.2
Torque QTR 133 series
High peak force with a large range of options
This series is the second medium-range QTR motor. High peak force make the QTR 133 Series ideal for testing equipment.

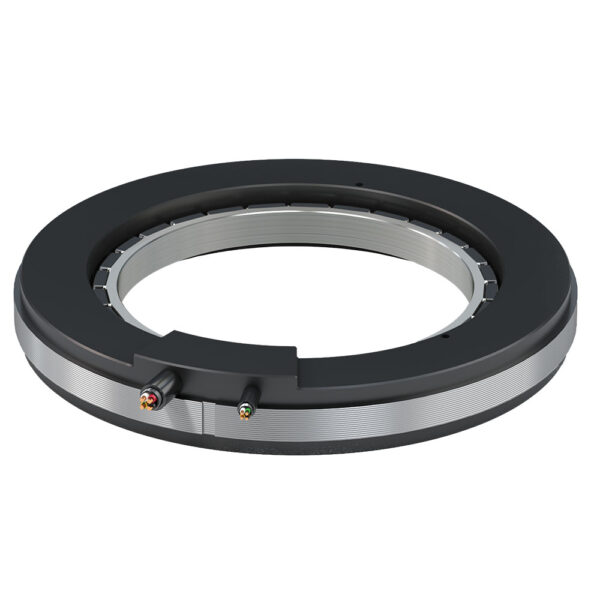

QTR133 SERIES

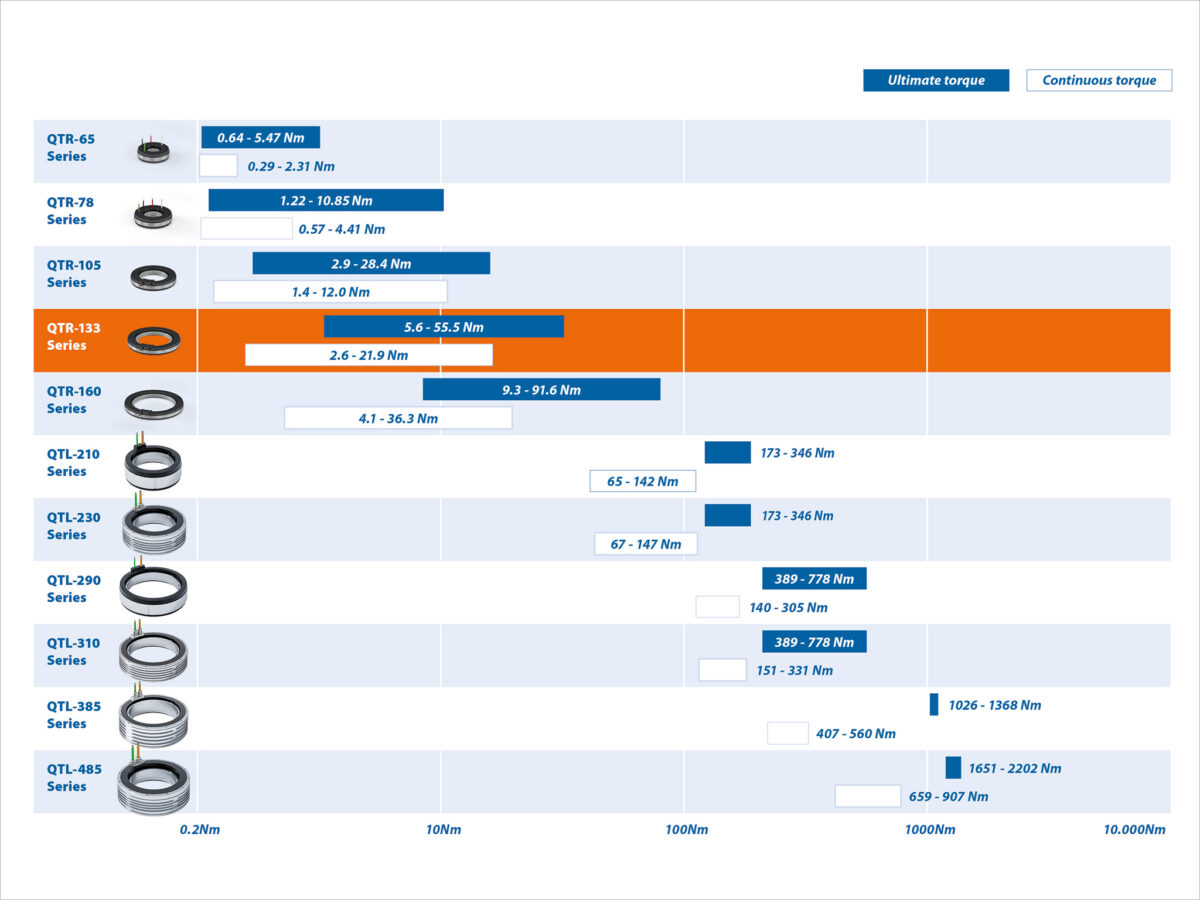

The QTR 133 is the second medium-range QTR motor. It covers the torque range from 2.6 to 21.9Nm. The largest 60mm high QTR 133-60 motor offers a peak torque of 35.3Nm.
Different winding types make the motor suitable for a wide variety of semiconductor and robotics applications for low voltage or even 600V applications.
Torque
Ultimate torque: 5.6 – 55.5 Nm
Peak torque: 3.8 – 35.3 Nm
Continuous torque: 2.6 – 21.9 Nm
The build heights are: 133-17 //133-25 // 133-34 // 133-60

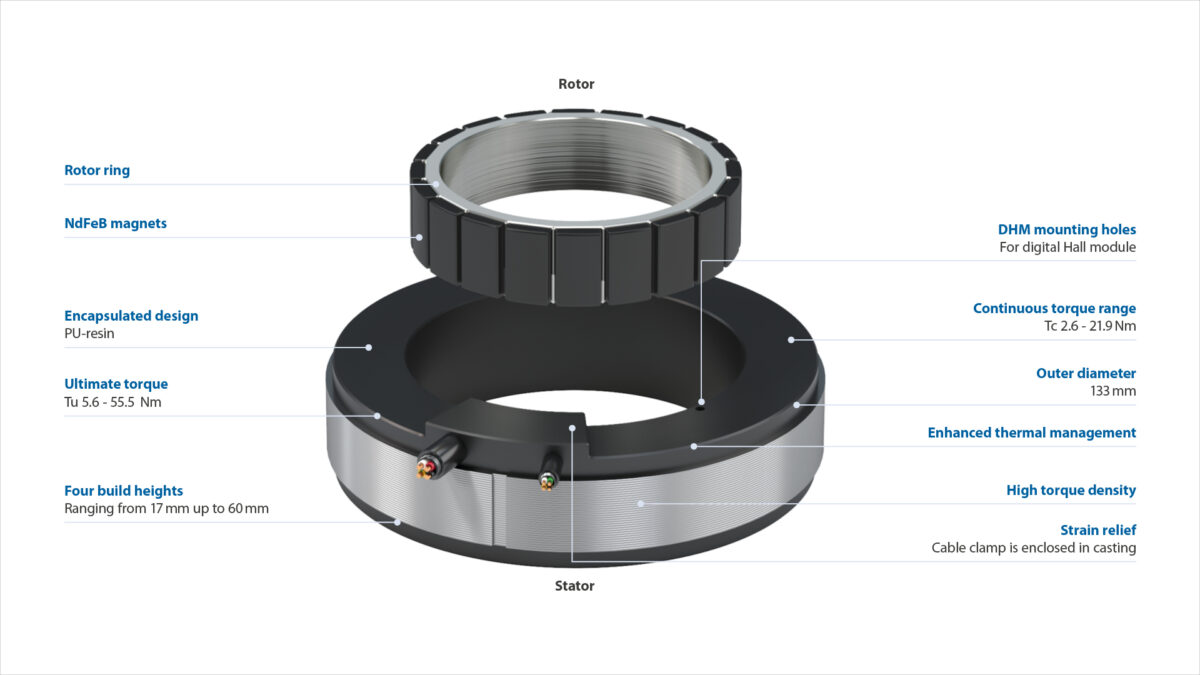

Properties
The new QTR 160 high stacks motors give the most torque while remaining compact. QTR high-stack motors are excellent for many semiconductor applications, such as wafer handling and translational movement. The motors ensure accurate rotation and safe transport to the next station.
Specifications
Resources
Torque motor |Brochure| Version 2.3
Torque motor |Webinar| Version 1.0

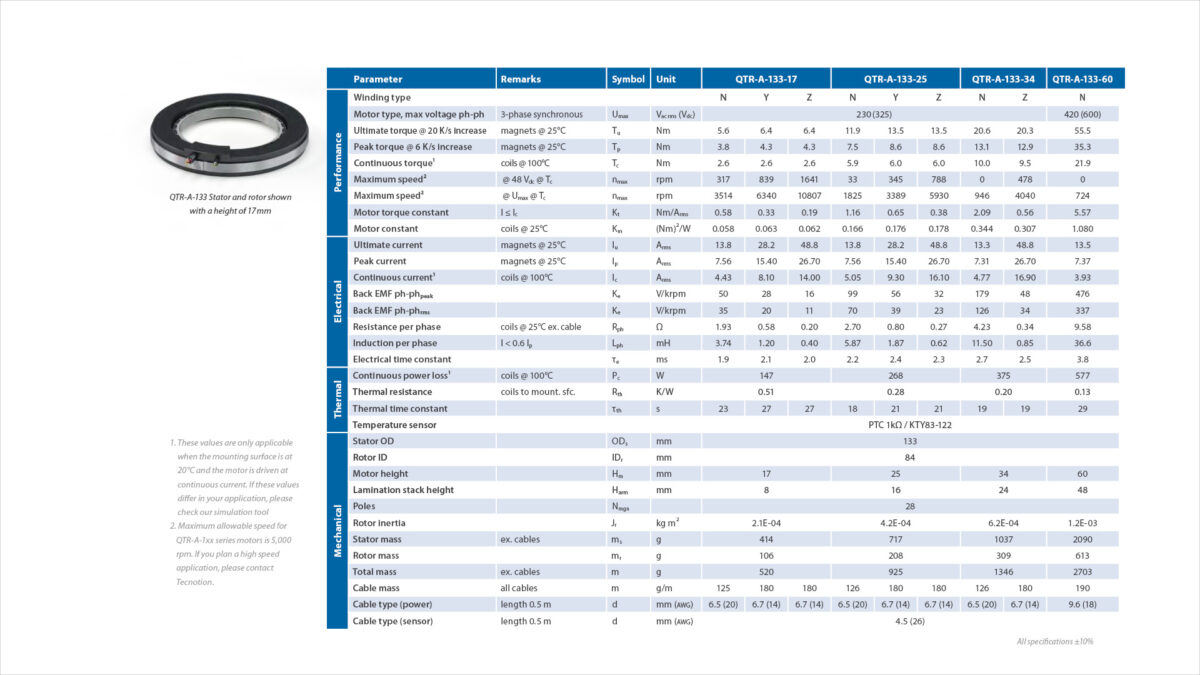

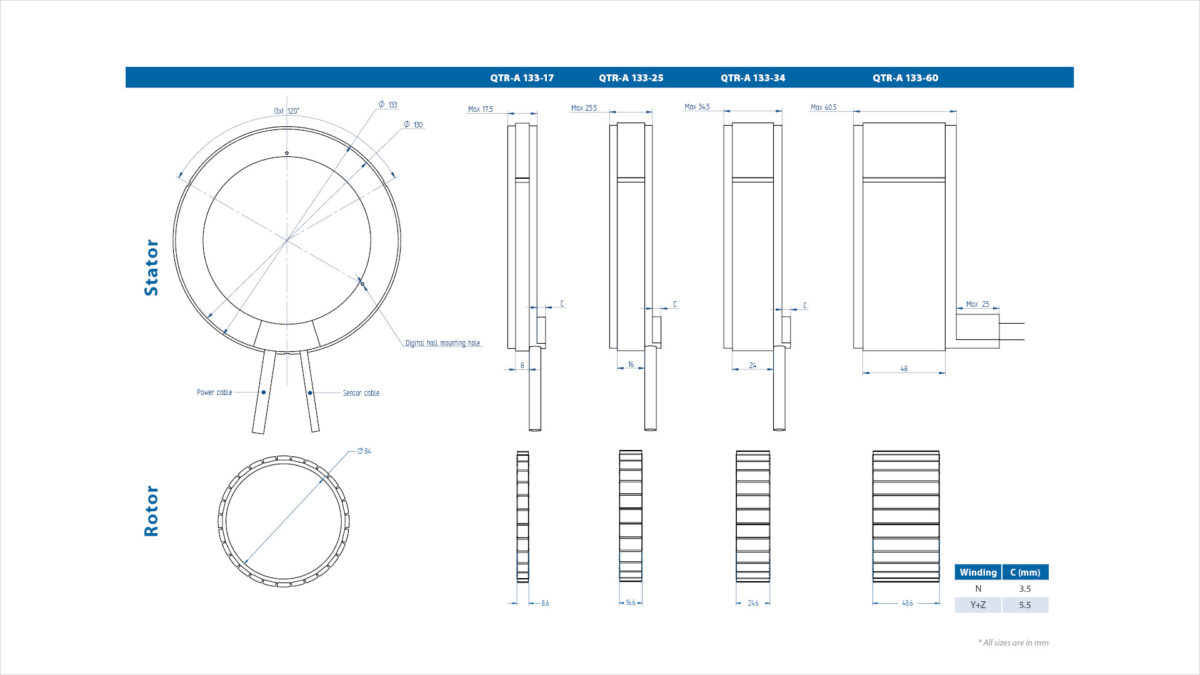

Torque motor |Spec sheet| 2.3
Torque motor |CAD file| version 1.0
Torque motor |CAD file| version 1.0
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
