Ironless motor |Brochure| 1.3
Unano series
Minimal Space. Maximum Impact.

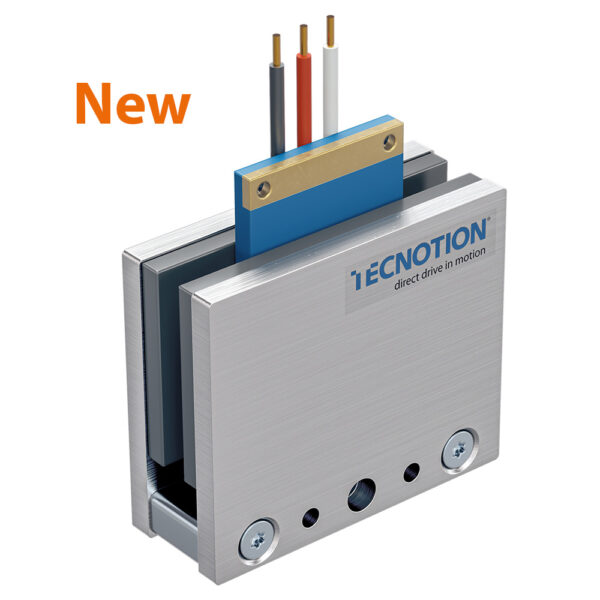

The Unano ironless linear motor is our smallest standard ironless motor. Purpose-built for high-end applications where size, precision, and reliability matter most.
Ironless Unano series
Designed for when every millimeter matters, these ultra-compact motors deliver reliable, smooth and powerful performance in one of the smallest form factors on the market – 17mm coil unit. It’s more than just small—it’s a serious alternative to piezo and spindle motors, with the added benefits of direct drive.
Their micrometer precision makes these motors ideal for highly accurate applications, such as Metrology and inspection stages, microscopy tables, flying probe axis, and multi-carrier stages. Thanks to its flexible design, the Unano series always fits your needs.

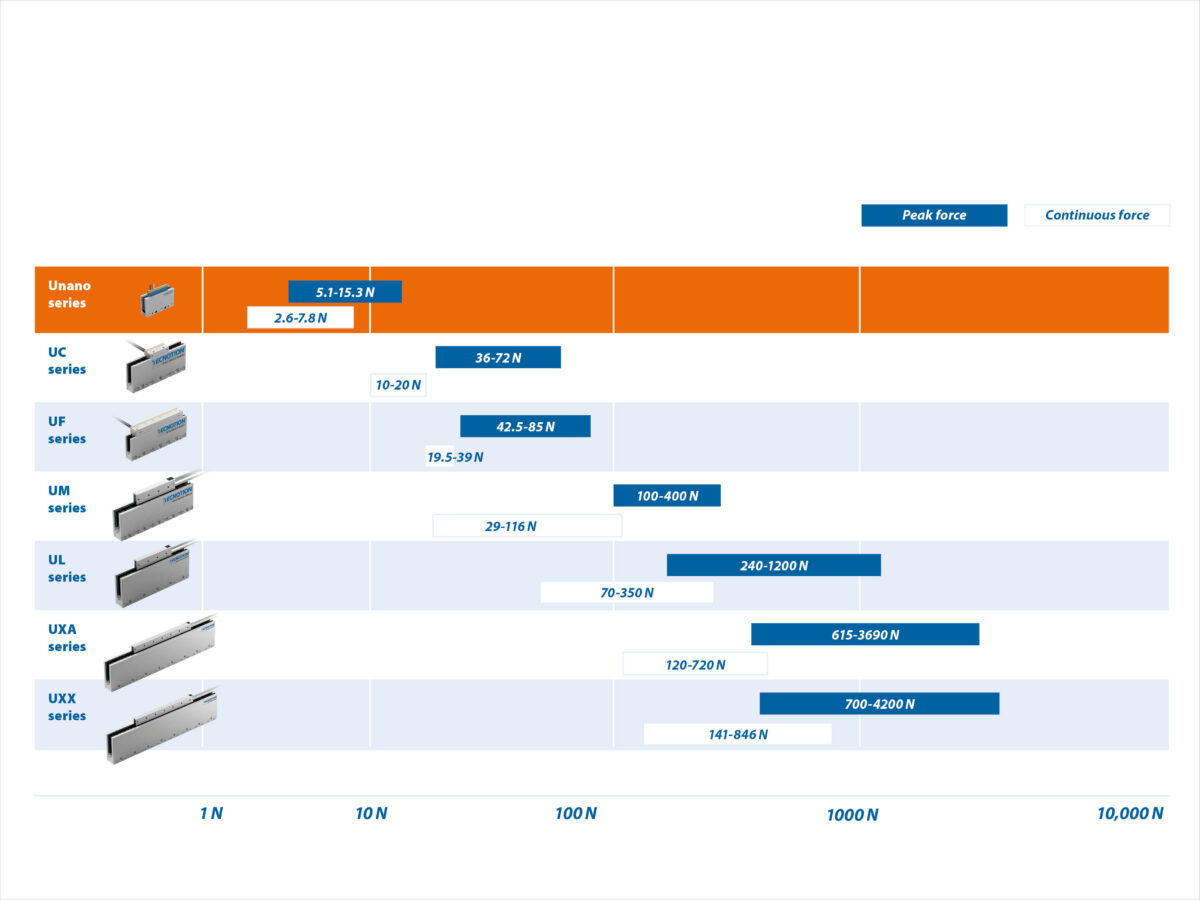

Force
Peak force: 5.1 – 15.3 N
Continuous force: 2.6 – 7.8 N
Coil Units: Unano3 – Unano6 – Unano9
Magnet Yokes: Unano34 – Unano51

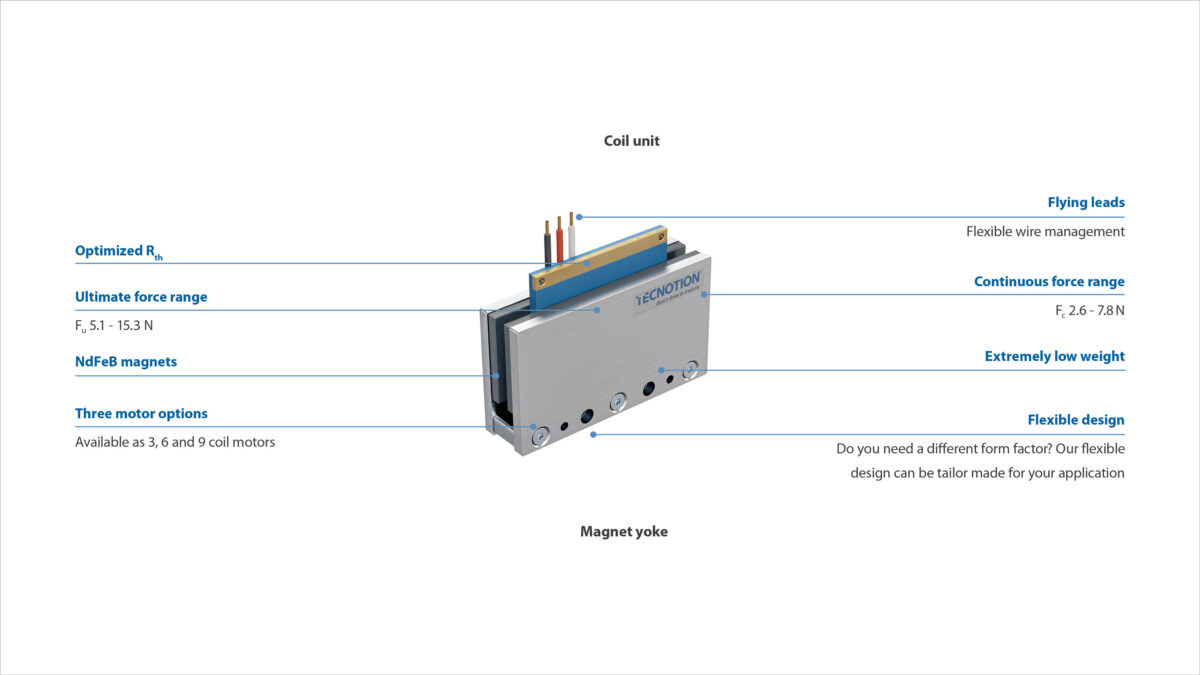

Properties

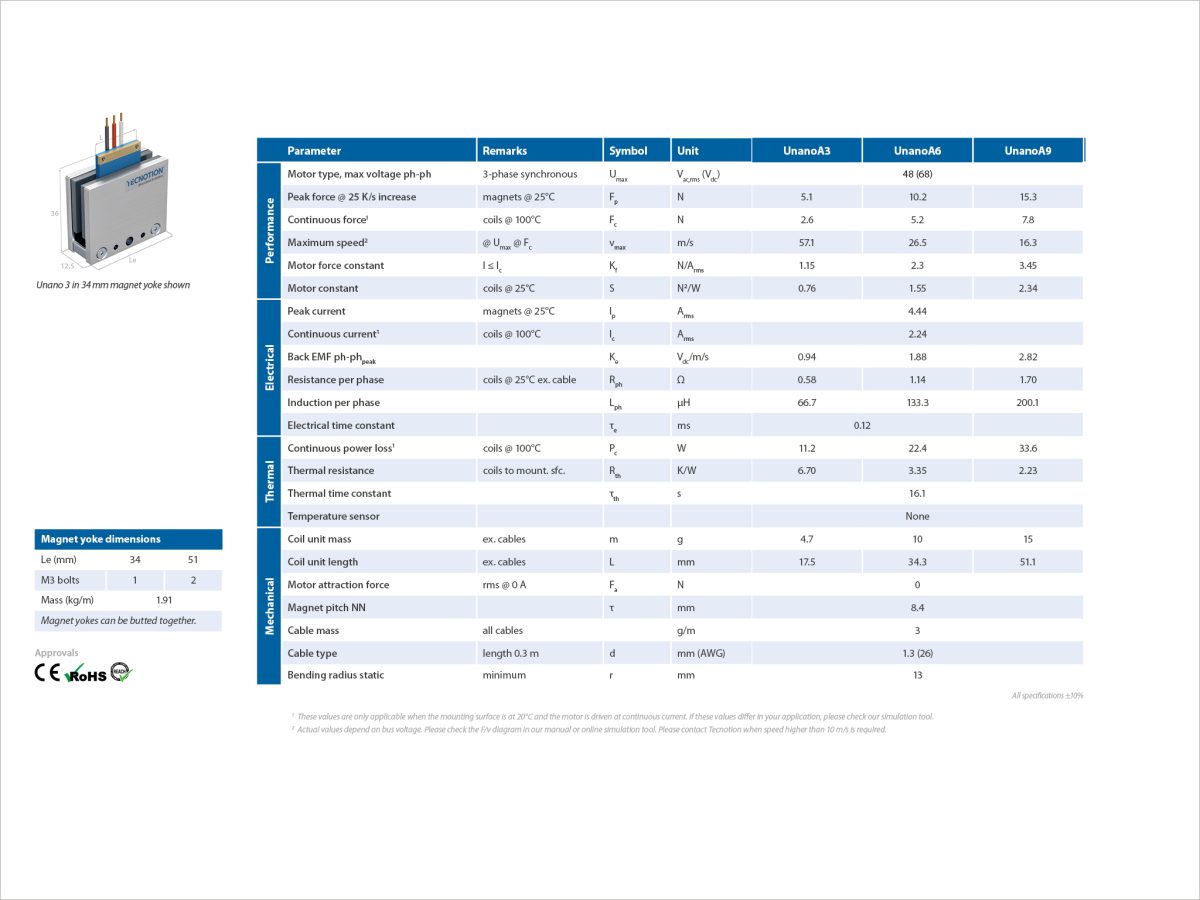

Specifications
Resources
All linear motors |Brochure| Version 3.0
Ironless motor |Leaflet| 1.0
Ironless motor |Leaflet| 1.1
All linear motors |Spec sheet| 1.3
Ironless motor |CAD file| version 1.0
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
Product filter
Find the best linear motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.
Simulation tool
Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.
