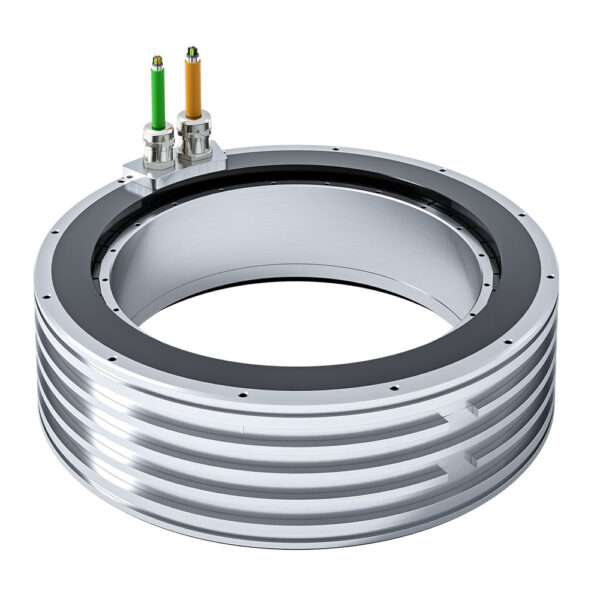

The torque QTL 310 series is based on the QTL 290 with the addition of cooling channels. It is especially suited for applications where thermal management is an issue.

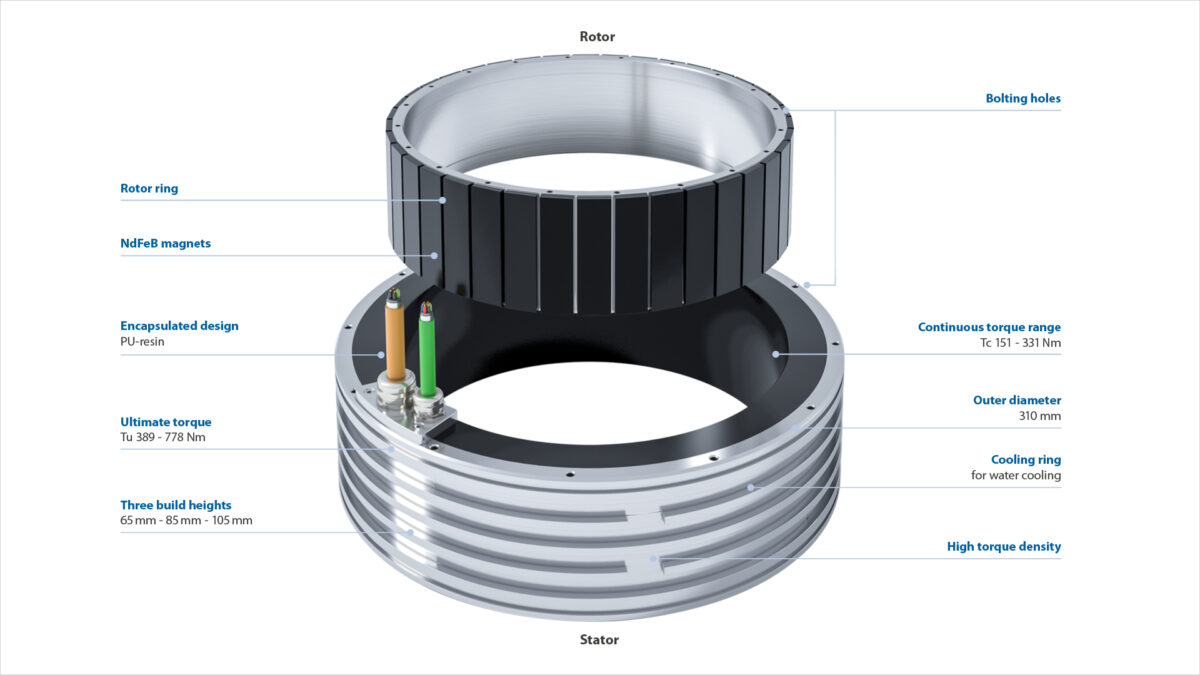

The QTL 310 series is based on the QTL 290 with the addition of cooling ring. The cooling ring provides bolting holes for easy installation. This cooling ring should be closed with the housing, which creates a cooling channel. The motor is a reliable heavy duty workhorse.
Because of the integrated cooling channels the motor reaches a very high continuous torque without losing precision. Even with the addition of active cooling the motor is very compact and has a high torque density. It is especially suited for applications where thermal management is an issue.
The new QTR 160 high stacks motors give the most torque while remaining compact. QTR high-stack motors are excellent for many semiconductor applications, such as wafer handling and translational movement. The motors ensure accurate rotation and safe transport to the next station.
Torque motor |Manual| version 2.2
Torque motor |Brochure| Version 2.3
All linear motors |Brochure| Version 3.0
Torque motor |Webinar| Version 1.0

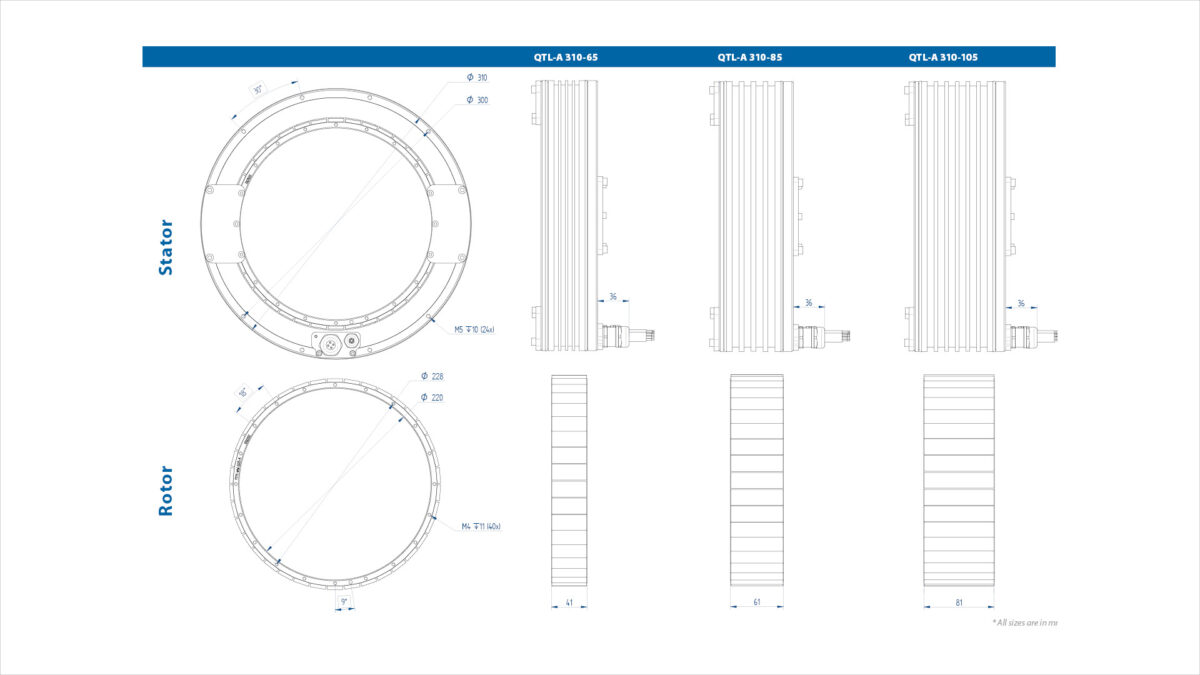

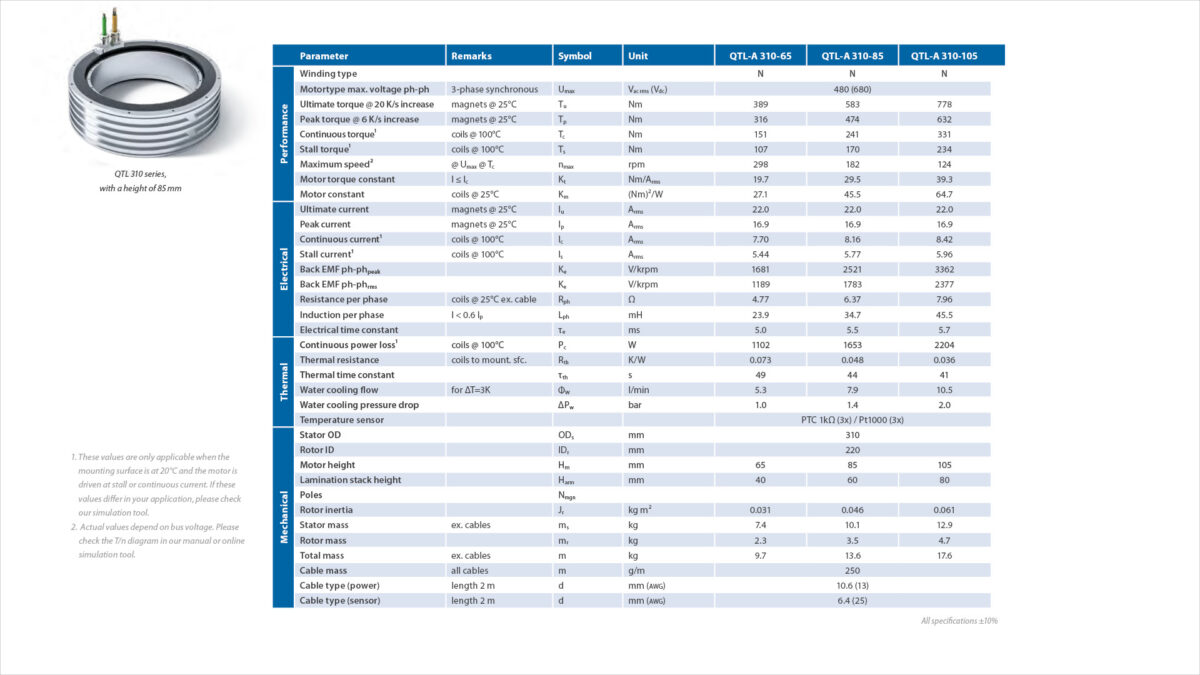

Torque motor |Spec sheet| version 2.3
Torque motor |CAD file| version 1.0
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
Find the best torque motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.
Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.
