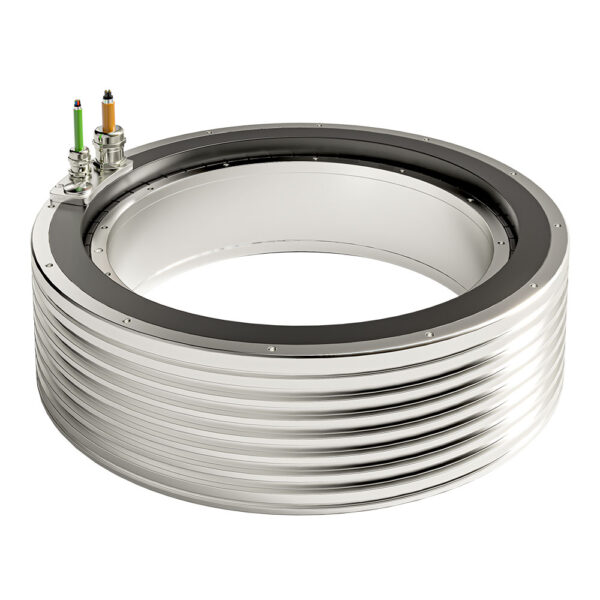

With a big inner diameter, QTL 385 is very suitable to integrate into an (existing) application in a wide variety of markets like rotary indexing tables, printing machinery, and materials handling.

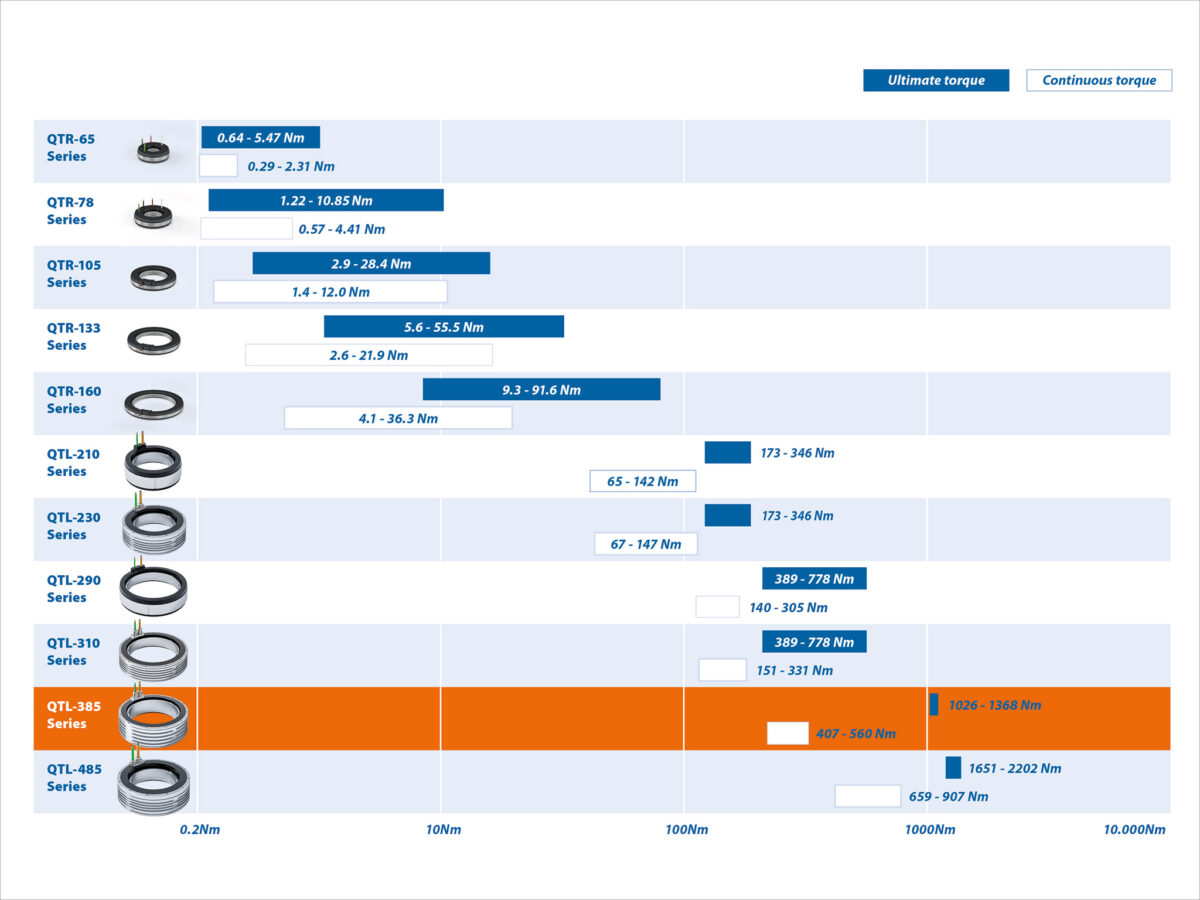

The QTL 385 is one of the high-torque Tecnotion motor series. With a big inner diameter, it is very suitable to integrate into an (existing) application in a wide variety of markets like rotary indexing tables, printing machinery, and materials handling.

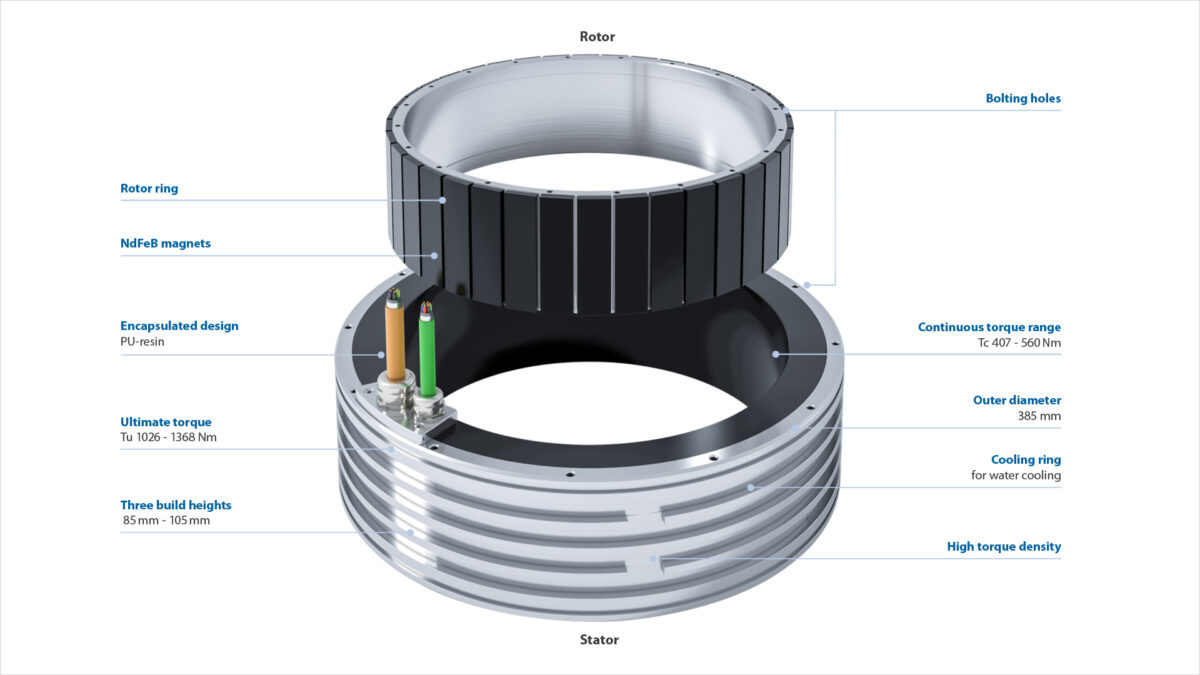

It has a cooling ring, which should be closed with the housing, creating a cooling channel. It will deliver 407-560 Nm continuous torque and 1026-1368 Nm ultimate torque, depending on the motor height.
Ultimate torque: 1026 – 1368 Nm
Peak torque: 833 – 1111 Nm
Continuous torque: 407 – 560 Nm
The build heights are: 385-85 // 385-105
The new QTR 160 high stacks motors give the most torque while remaining compact. QTR high-stack motors are excellent for many semiconductor applications, such as wafer handling and translational movement. The motors ensure accurate rotation and safe transport to the next station.
Torque motor |Manual| version 2.2
Torque motor |Brochure| Version 2.3
Torque motor |Webinar| Version 1.0
Torque motor |Webinar| Version 1.0

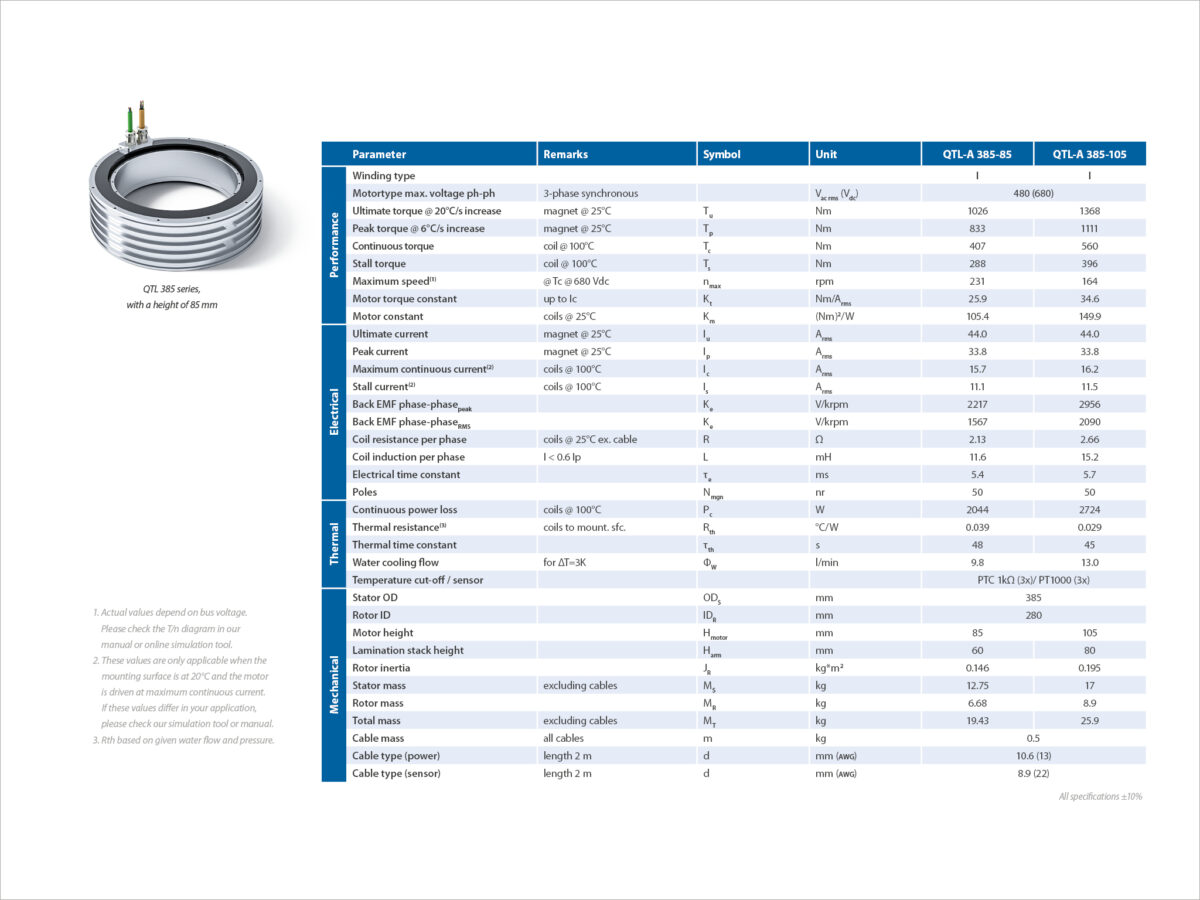

Torque motor |Spec sheet| version 2.3

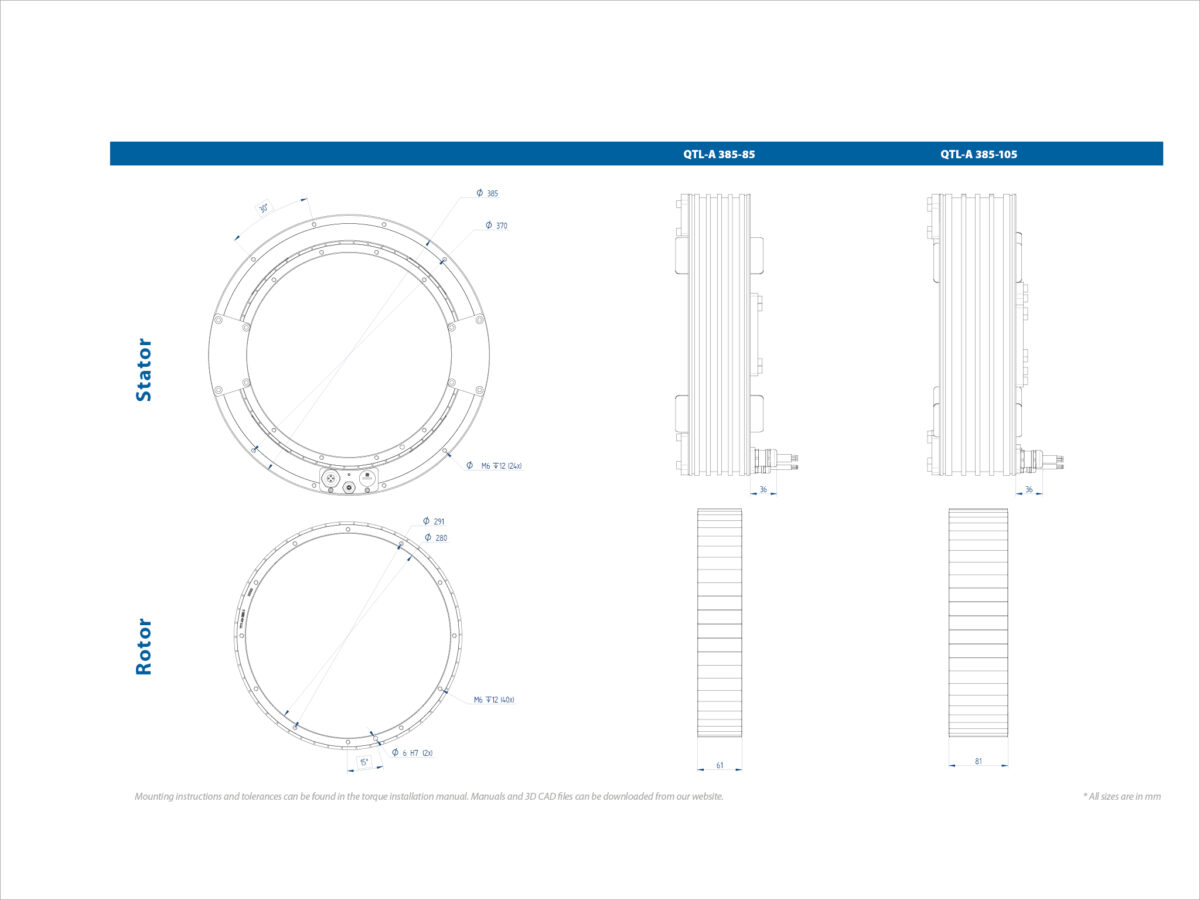

Torque motor |CAD file| version 1.0
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
Find the best torque motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.
Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.
