Torque motor |Manual| version 2.2
Torque QTL 230 series
With integrated water cooling to reach very high continuous torque
The QTL 230 has the same electromagnetic design as the QTL 210 but has enhanced water cooling thermal management.
QTL 230 SERIES

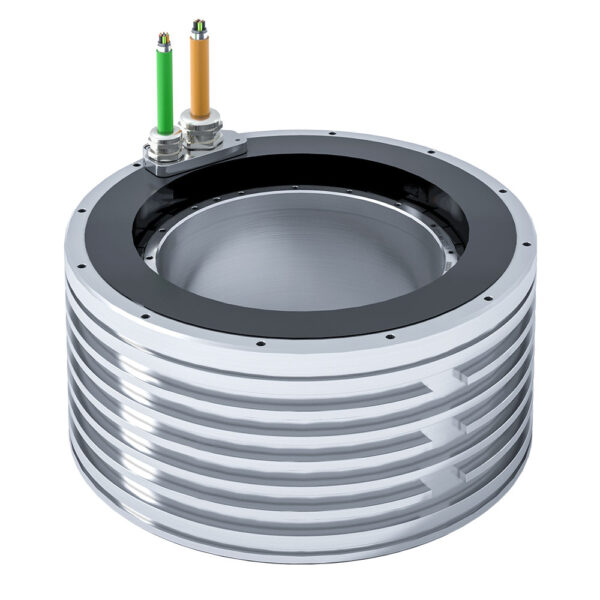

The QTL 230 is essentially a QTL 210 motor with a cooling ring for high continuous torque even in combination with high duty cycles and dynamic movement profiles.
This cooling ring should be closed with the housing, which creates a cooling channel. It will deliver 67-146 Nm continuous torque and 173-346 Nm ultimate torque, depending on the motor height.

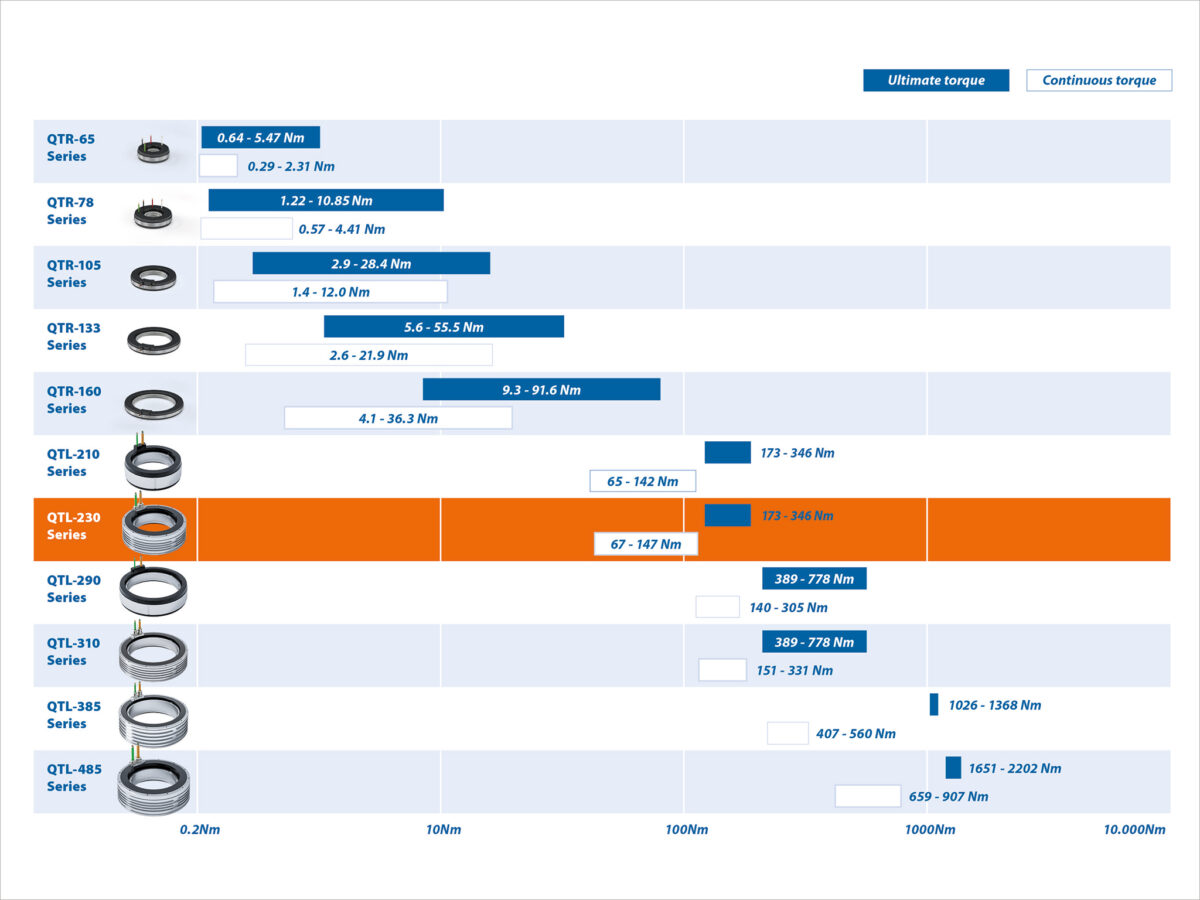

Torque
Ultimate torque: 173 – 346 Nm
Peak torque: 140 – 281 Nm
Continuous torque: 67 – 147 Nm
The build heights are: 230-65 // 230-85 // 230-105

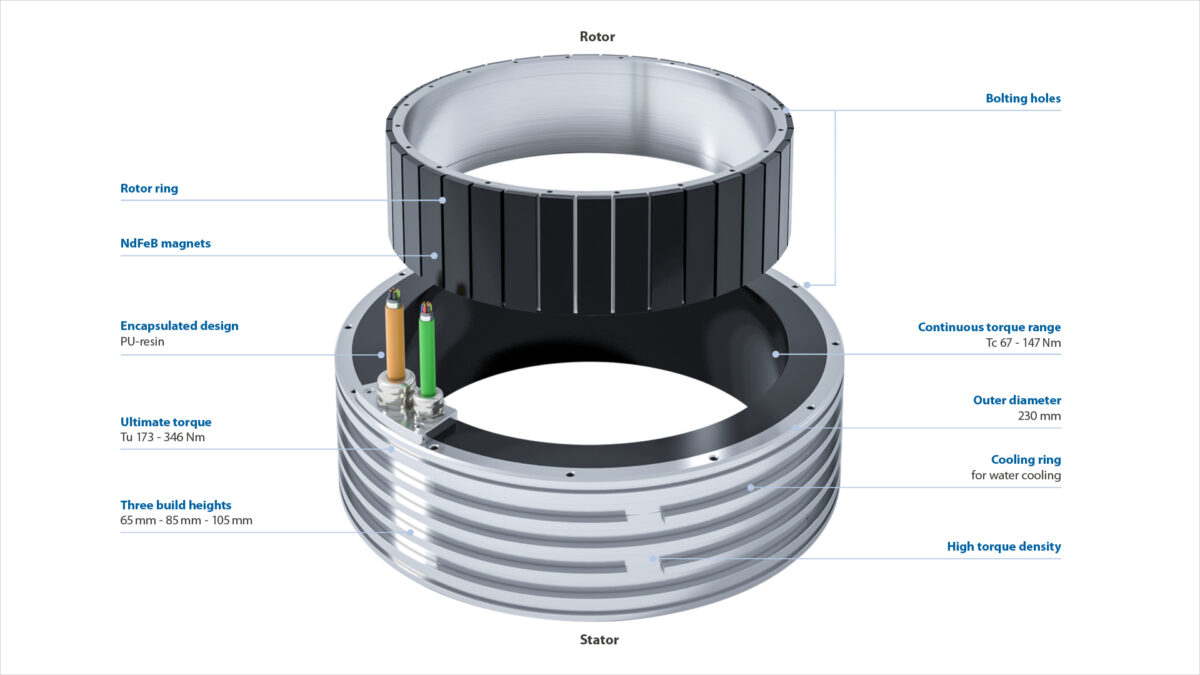

Properties
The new QTR 160 high stacks motors give the most torque while remaining compact. QTR high-stack motors are excellent for many semiconductor applications, such as wafer handling and translational movement. The motors ensure accurate rotation and safe transport to the next station.
Specifications
Resources
Torque motor |Brochure| Version 2.3
All linear motors |Brochure| Version 3.0
Torque motor |Webinar| Version 1.0

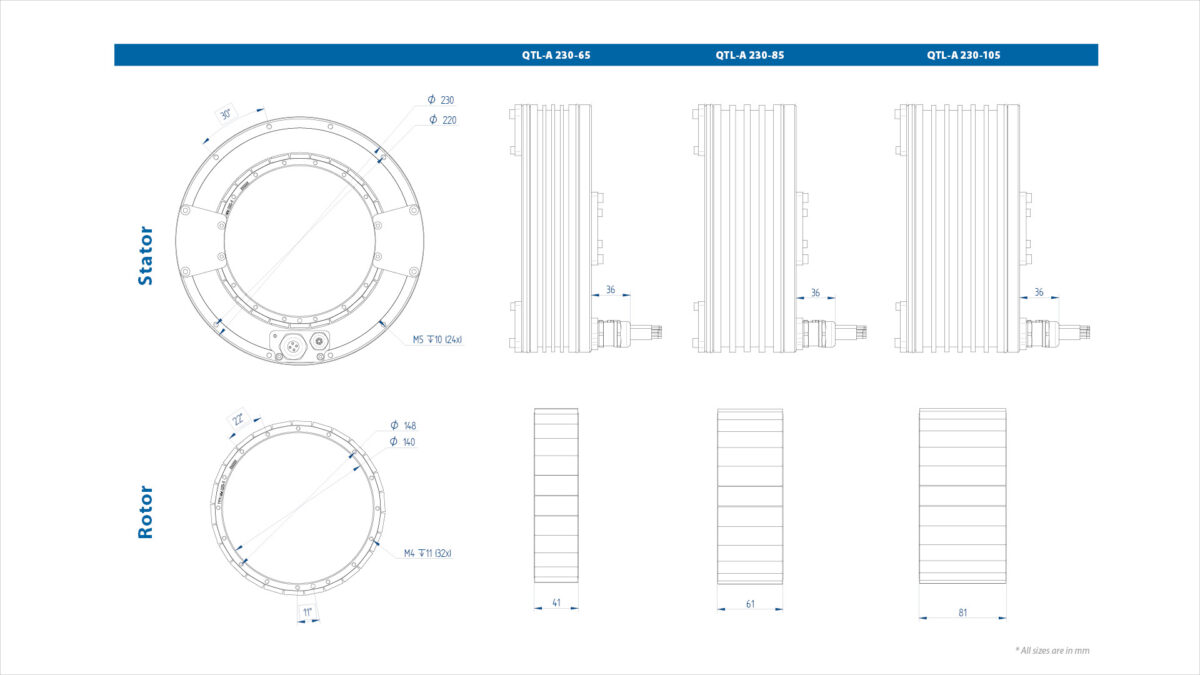

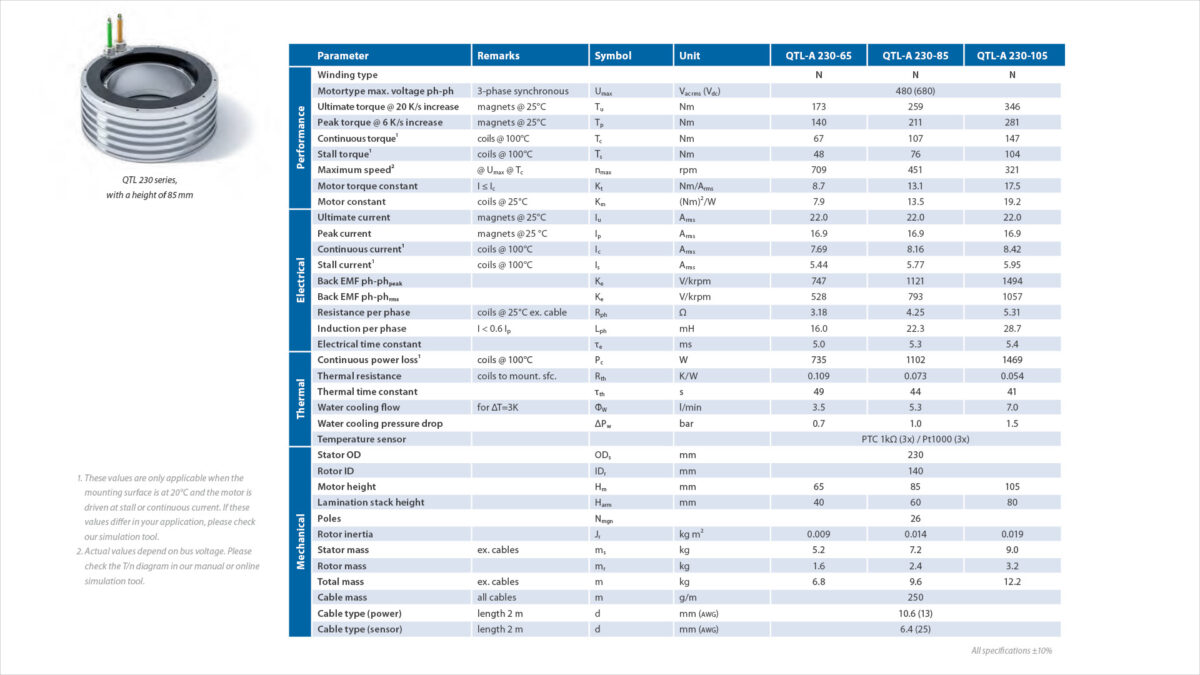

Torque motor |Spec sheet| 2.3
Torque motor |CAD file| version 1.0
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
