This motor is suitable to integrate into an (existing) application in a wide variety of markets like rotary indexing tables, printing machinery, and materials handling.

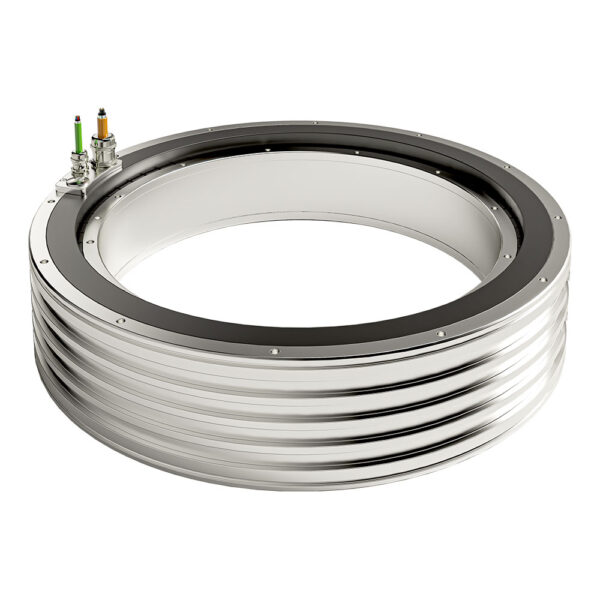

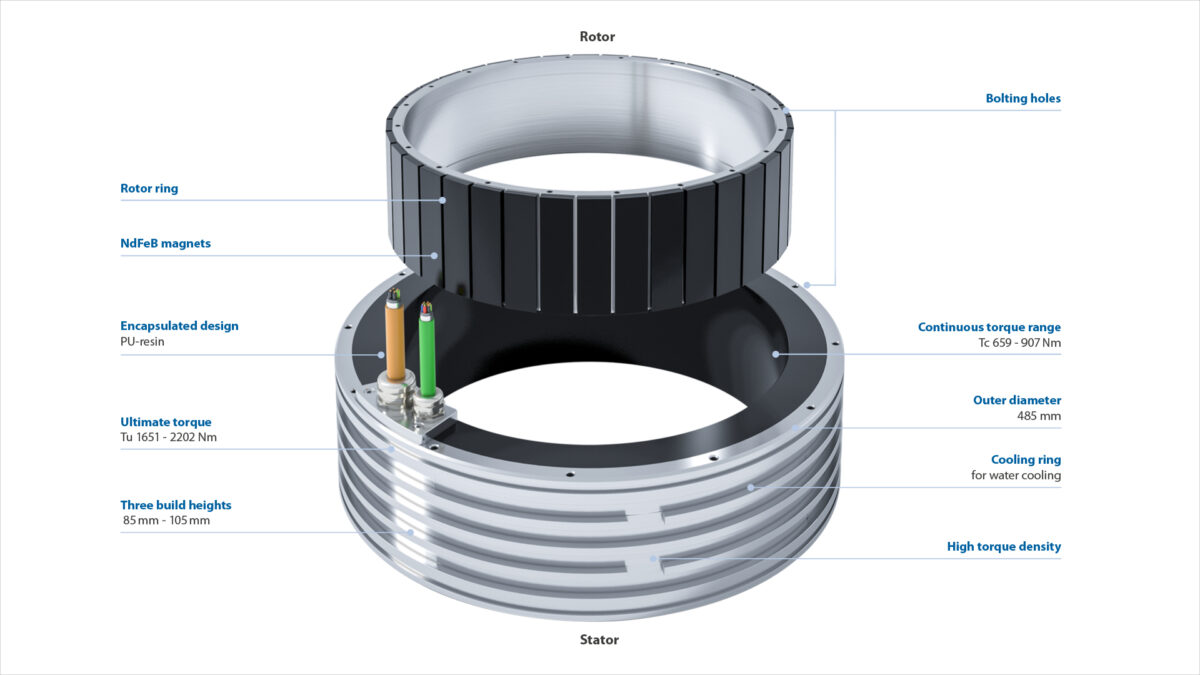

The QTL 485 is the largest of the high-torque Tecnotion motor series. It has a cooling ring, which should be closed with the housing, creating a cooling channel. It has the same efficient and space-saving electromagnetic design scaled up for even higher torque demands.

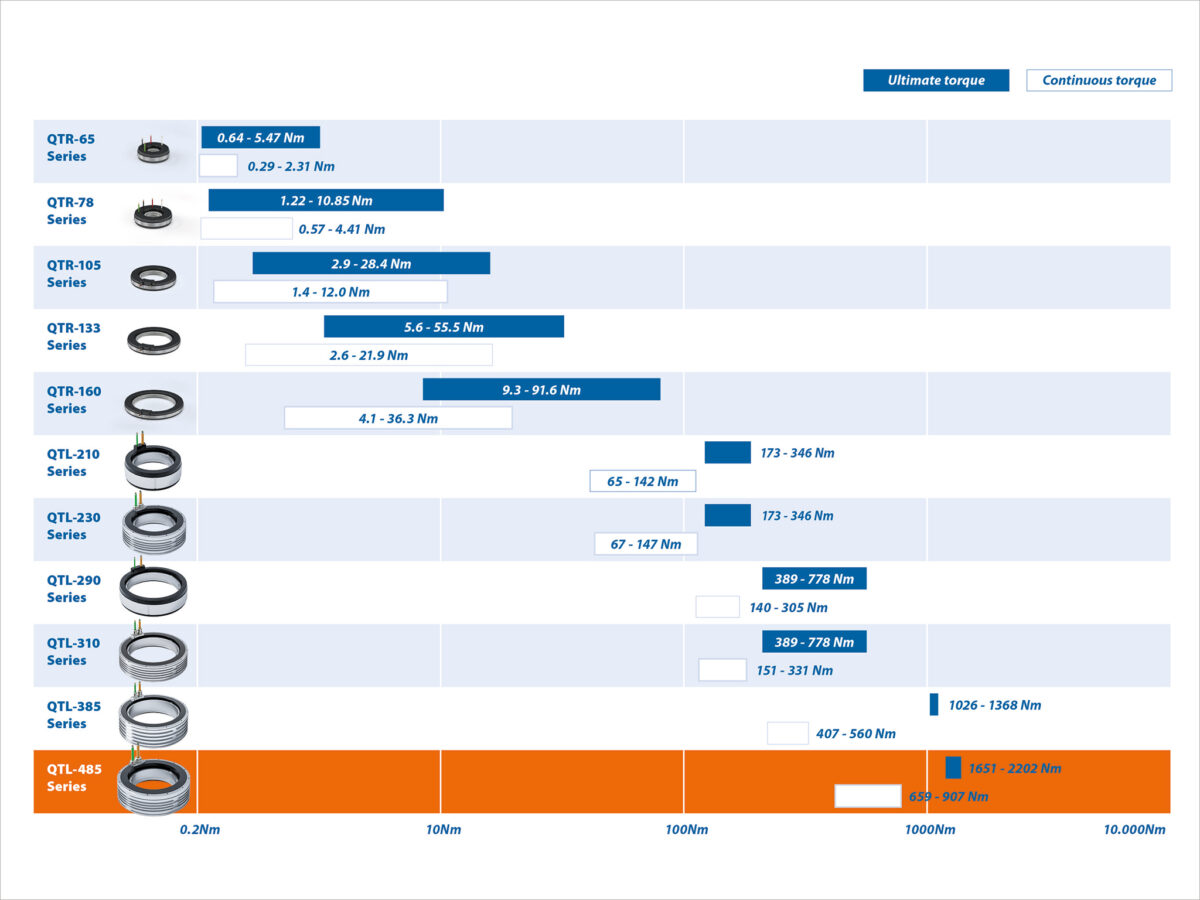

With a big inner diameter, it is suitable to integrate into an (existing) application like rotary indexing tables, and materials handling. It will deliver 659-907 Nm continuous torque and 1651-2202 Nm ultimate torque, depending on the motor height.
The new QTR 160 high stacks motors give the most torque while remaining compact. QTR high-stack motors are excellent for many semiconductor applications, such as wafer handling and translational movement. The motors ensure accurate rotation and safe transport to the next station.
Torque motor |Manual| version 2.2
Torque motor |Brochure| Version 2.3
Torque motor |Webinar| Version 1.0
Torque motor |Webinar| Version 1.0

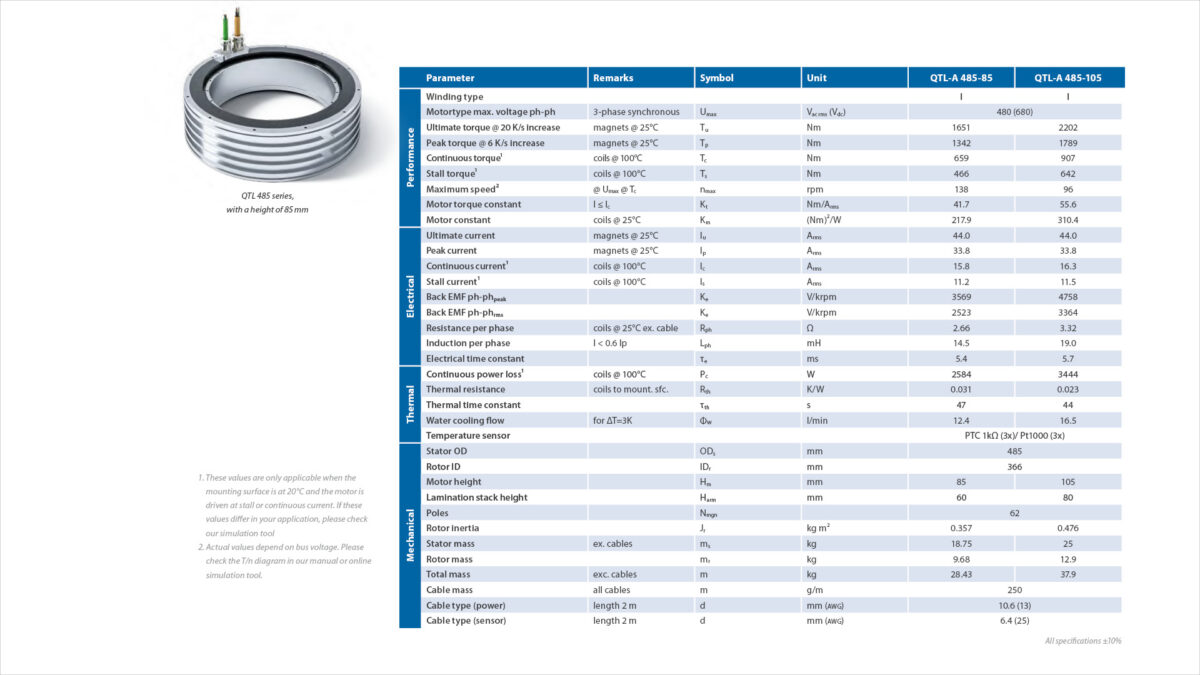

Torque motor |Spec sheet| version 2.3

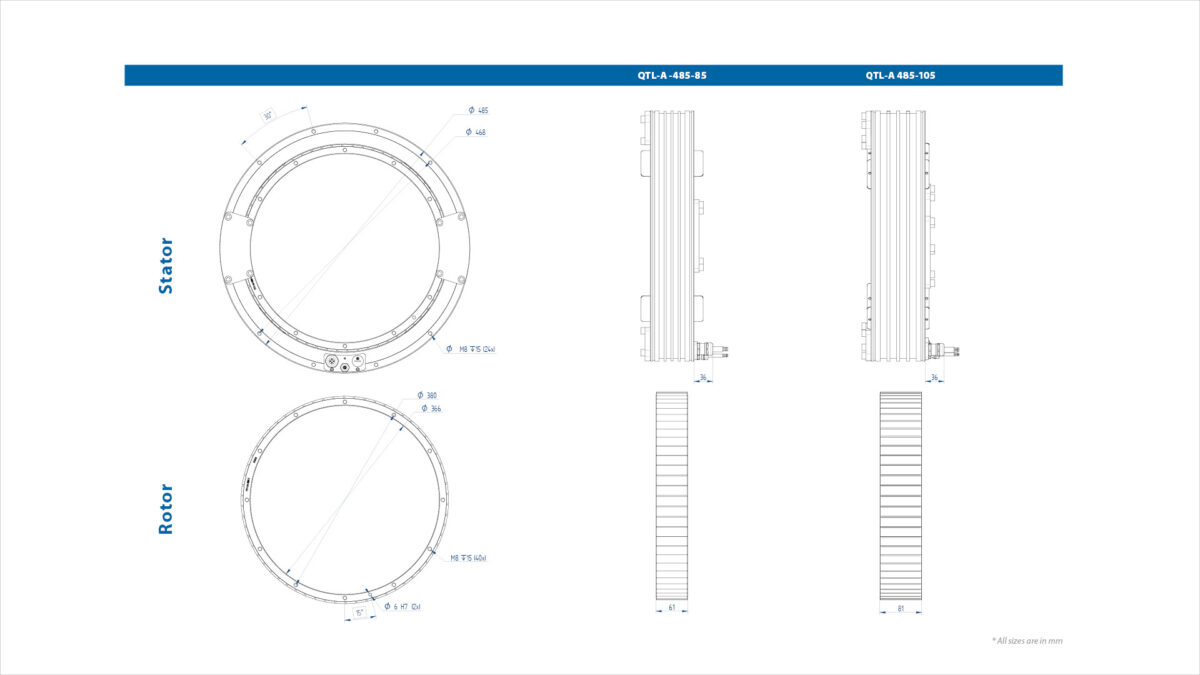

Torque motor |CAD file| version 1.0
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
Find the best torque motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.
Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.
