UMV – G2 series
High positioning accuracy and repeatability
Ideal for applications that require extreme accuracy.
Vacuum UMV-G2 series
The UMV coils are the smallest coils in the vacuum-rated linear motor series. Specifically suitable for low loads and tight spaces because of the short length.
This motor is ideal for positioning e.g. in gantries, or high dynamic, light weight applications which require extreme accuracy.

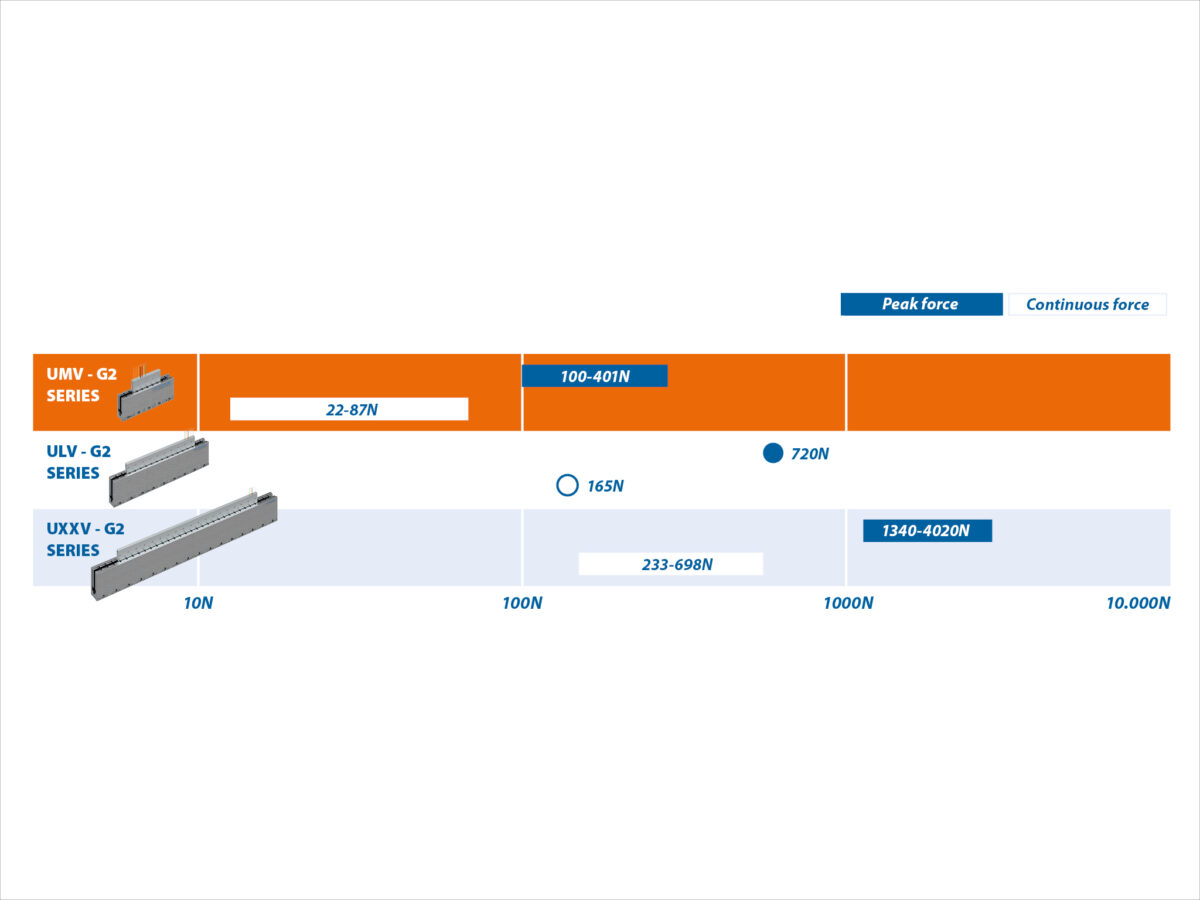

Force
Peak force: 100 – 401 N
Continuous force: 22 – 87 N
Coil units: UMV3 – UMV6 G2 – UMV12 G2

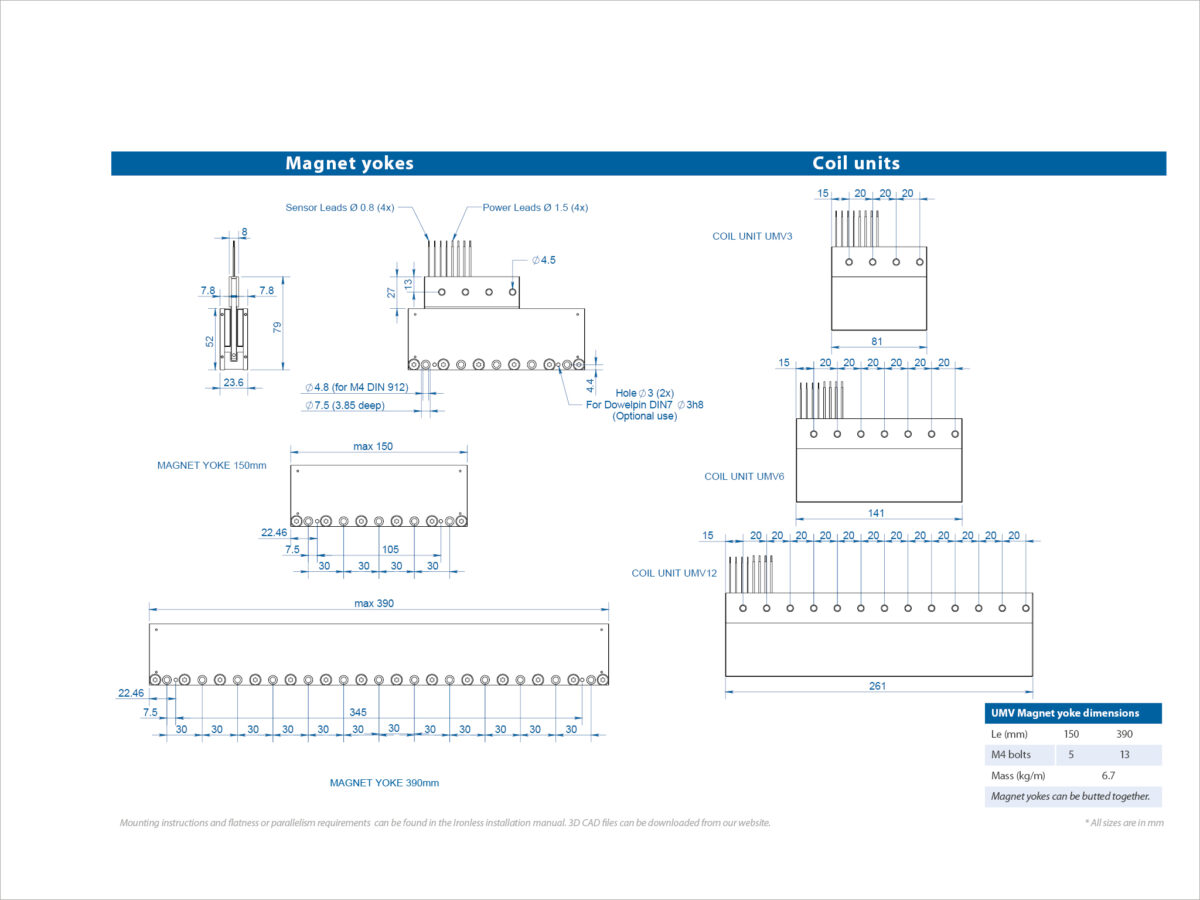

Magnet yokes: UMV 150mm, UMV 390mm
The new benchmark in vacuum motors
This video introduces the vacuum generation 2 motors of Tecnotion.

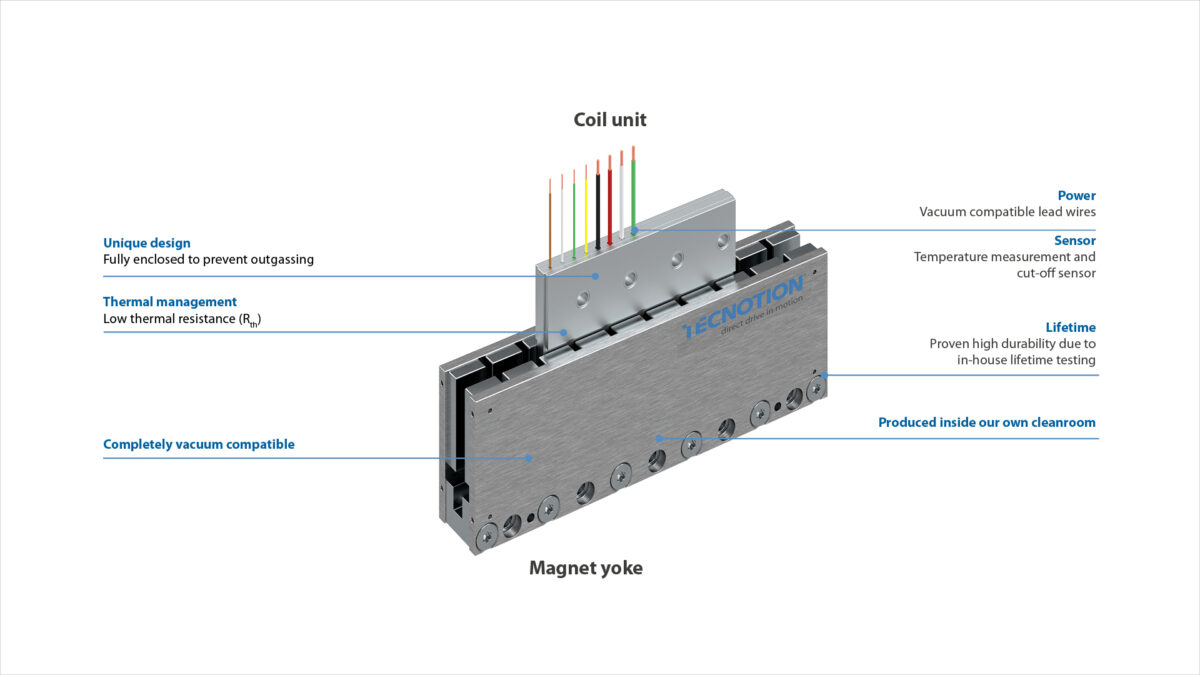

Properties

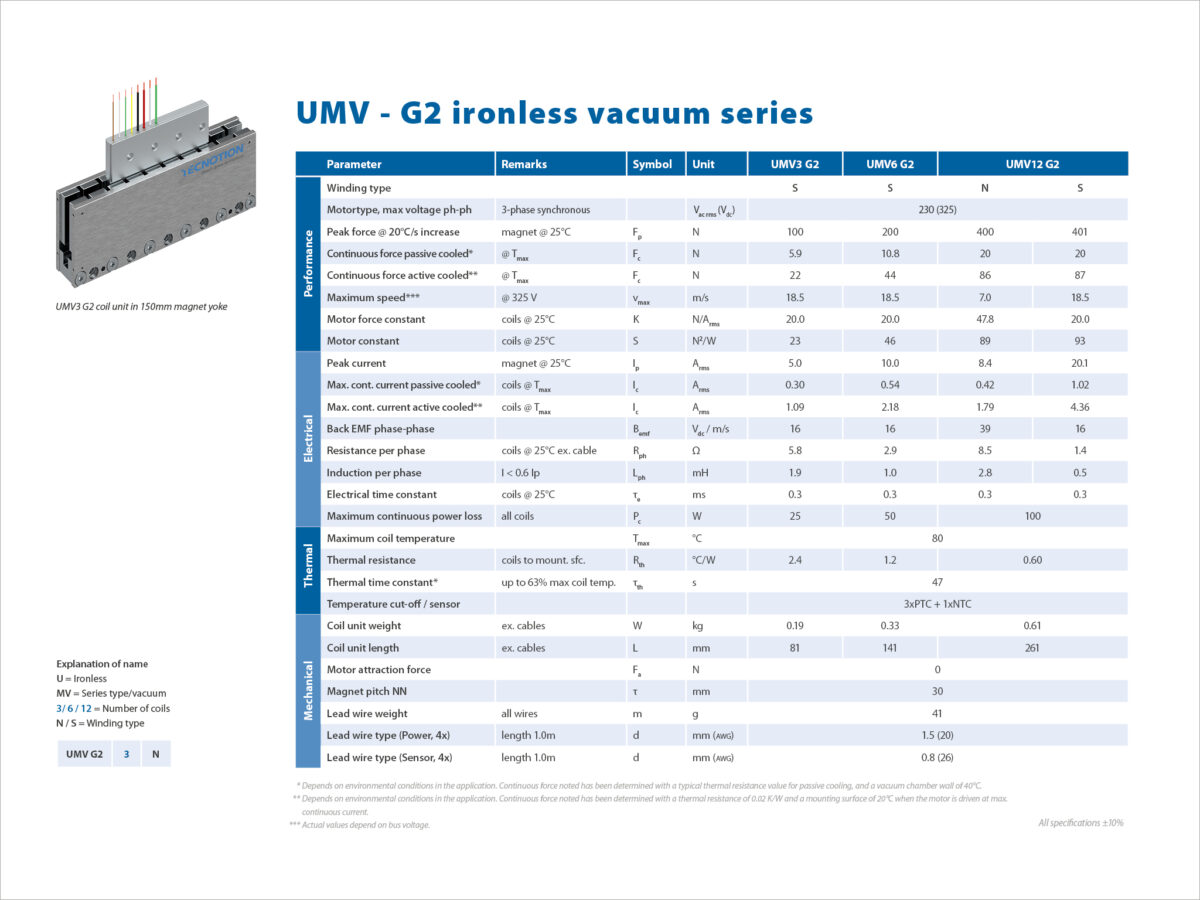

Specifications
Resources
Vacuum motor |Brochure| 1.4
Ironless motor |Webinar| Version 1.0
Vacuum motor |Webinar| Version 1.0
Vacuum motor |CAD file| version 1.0
Vacuum motor |Spec sheet| 1.4
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
