Iron core motor |Brochure| 1.2
TM series
Compact iron core motors for low cost of ownership
This motor is very versatile, reliable and efficient for a wide range of applications that do not require high forces.

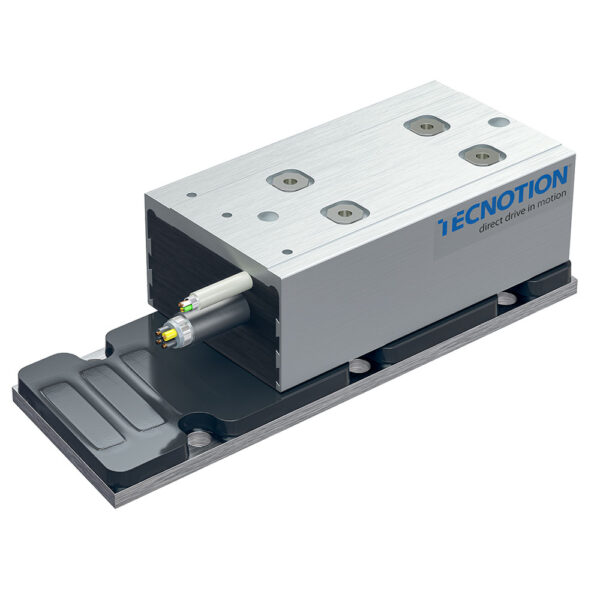

Iron core motor TM series
For applications that do not require high forces, it is often more effective to use a smaller and less costly motor. Over the years, the TM series has proven to be a very versatile, reliable and efficient motor for a wide range of applications.
To enhance its effectiveness, the TM linear motor is equipped with a long flexible servo cable which makes the use of additional connectors superfluous and reduces total cost of ownership even further.

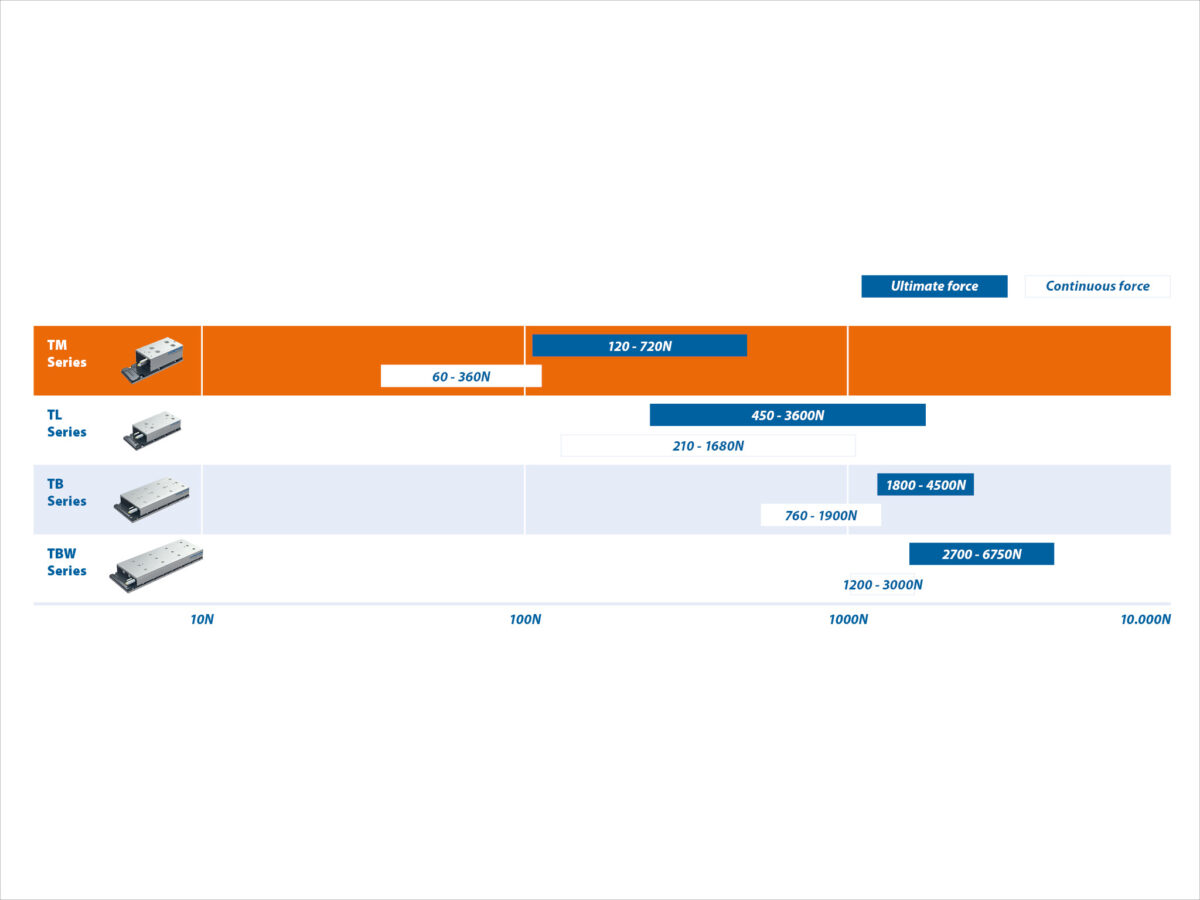

Force
Ultimate force: 120 – 720 N
Peak force: 105 – 630 N
Continuous force: 60 – 360 N
Coil Units: TM3 – TM6 – TM12 – TM18
Magnet Plates: TM96 – TM144 – TM384

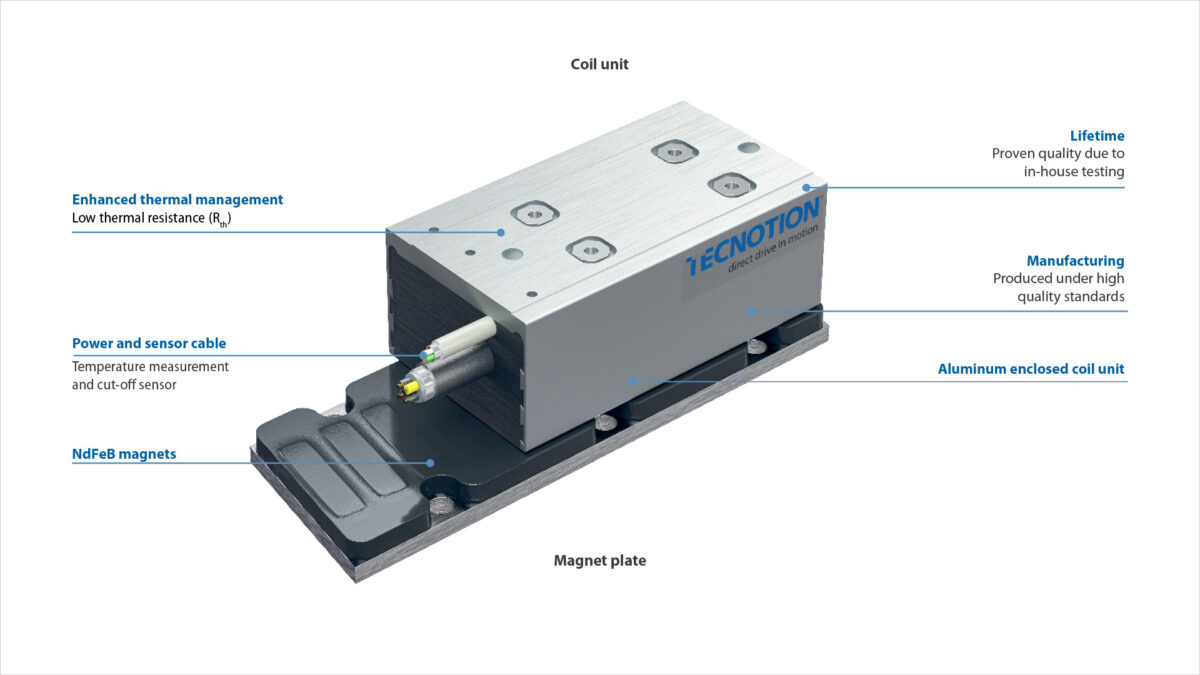

Properties

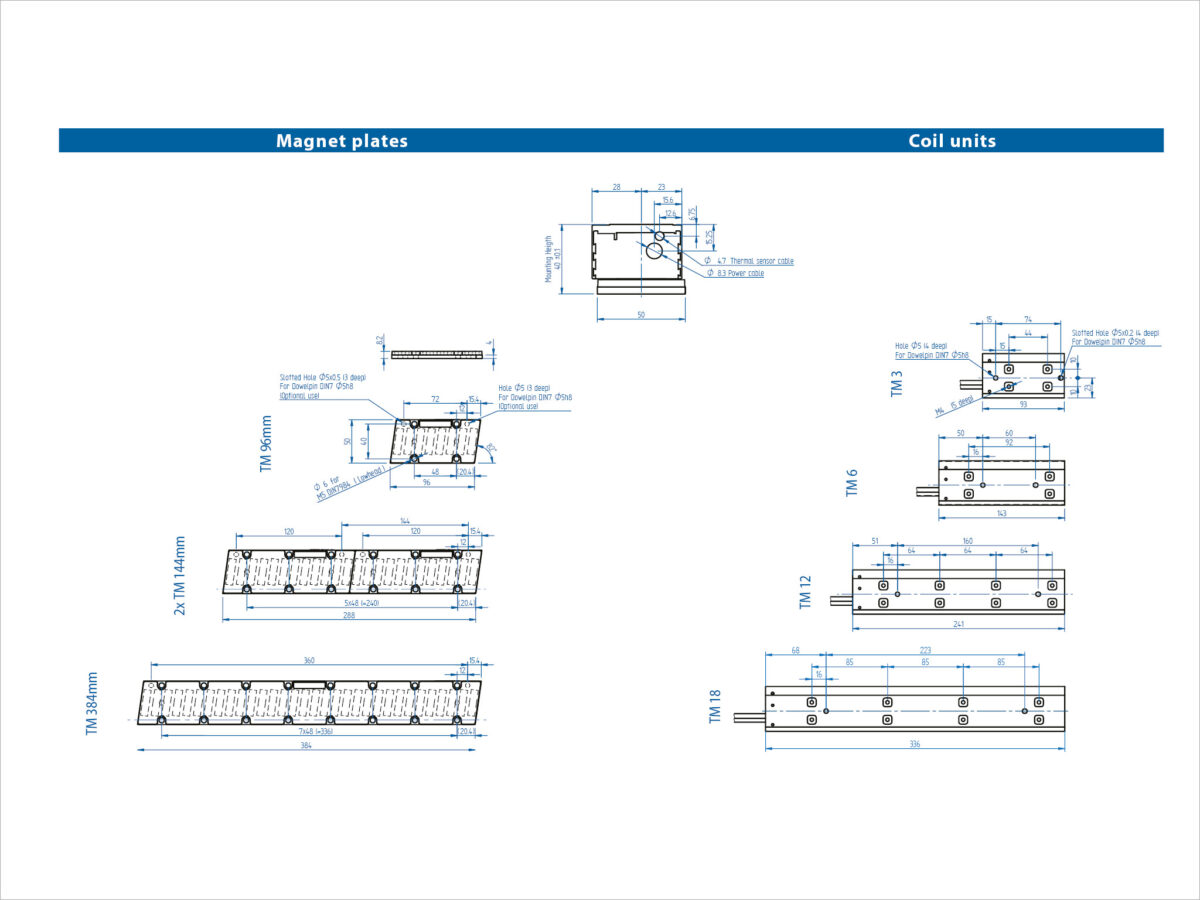

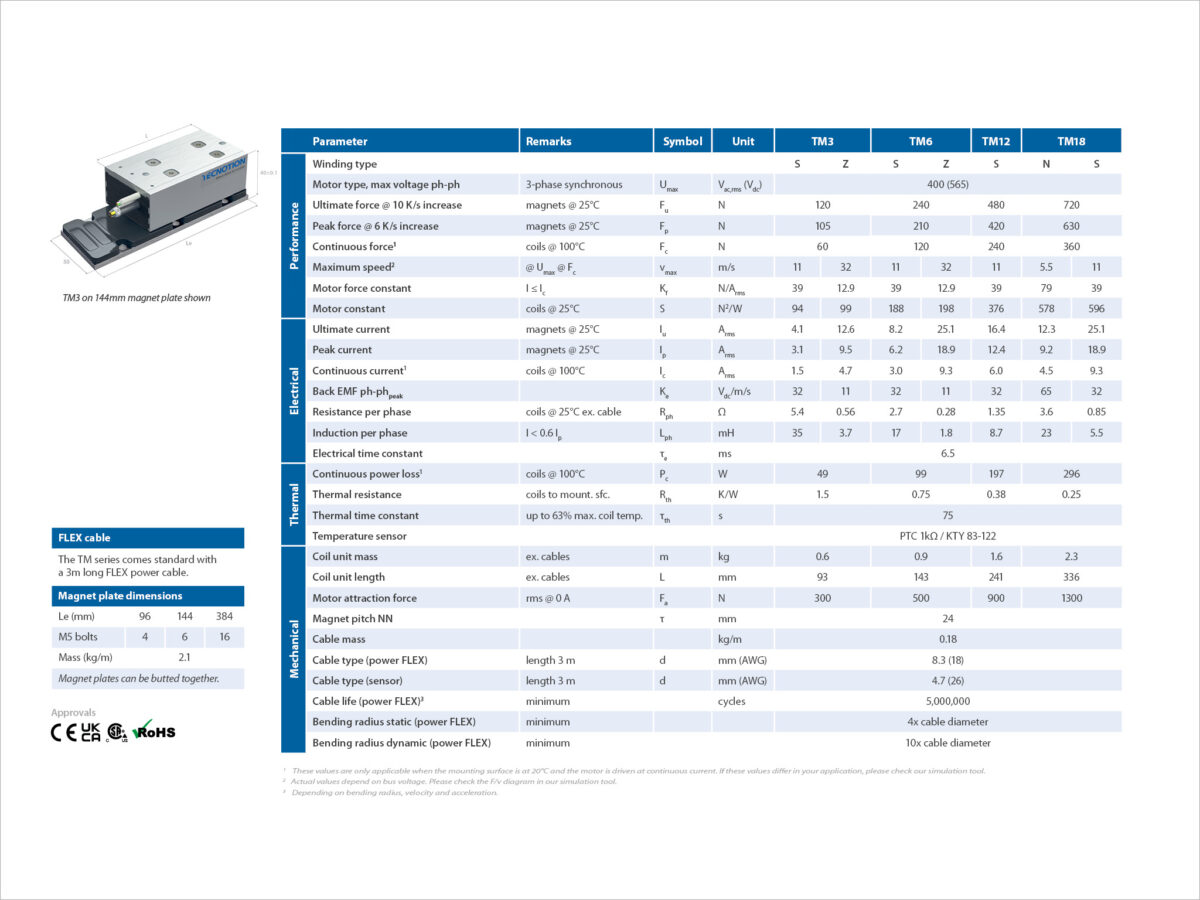

Specifications
Increase the available force of your machine
Coupling of iron core motors
Resources
Iron core motor |Webinar| Version 1.0
All linear motors |Leaflet| version 2.0
All linear motors |Spec sheet| version 1.0
Iron core motor |Manual| version 2.1
Iron core motor |CAD file| version 2.0
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
Digital Hall Module
For commutation, Tecnotion has an optional Digital Hall Module that can be used with our entire range of linear motors. Its sensors provide 3 digital outputs, each phase shifted 120 degrees, to determine the electrical angle between coils and magnets. If you do not use a controller that allows you to commutate within the servo drive, this module can be a cost-effective alternative. The digital Hall module requires a 4.5 to 28Vdc power supply.
Analog Hall Module
Linear motors can be positioned extremely accurately by using optical encoders and rulers. If this is not required this expensive setup can be replaced by an Analog Hall module. This module uses the magnet track, as opposed to the ruler, as the linear scale. It can be easily mounted on our iron core motors and communicates with practically all standard servo controllers. The Analog Hall module requires a standard 5Vdc power supply.
Product filter
Find the best linear motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.
Simulation tool
Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.
