UXXV – G2 series
Efficient and with high motor constant
Ideal for heavy duty applications that demand ultra-precision and maximum force output.
Vacuum UXXV-G2 serie

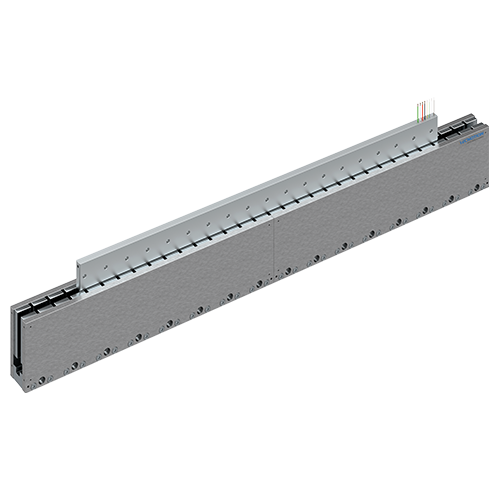

The UXXV – G2 coil is the most powerful and efficient coil in the vacuum-rated linear motor series. The UXXV series is ideal for heavy-duty applications which demand ultra-precision and maximum force output.
Such as in display production. Its efficiency and high motor constant allow for a low heat output while generating a high force.
Force

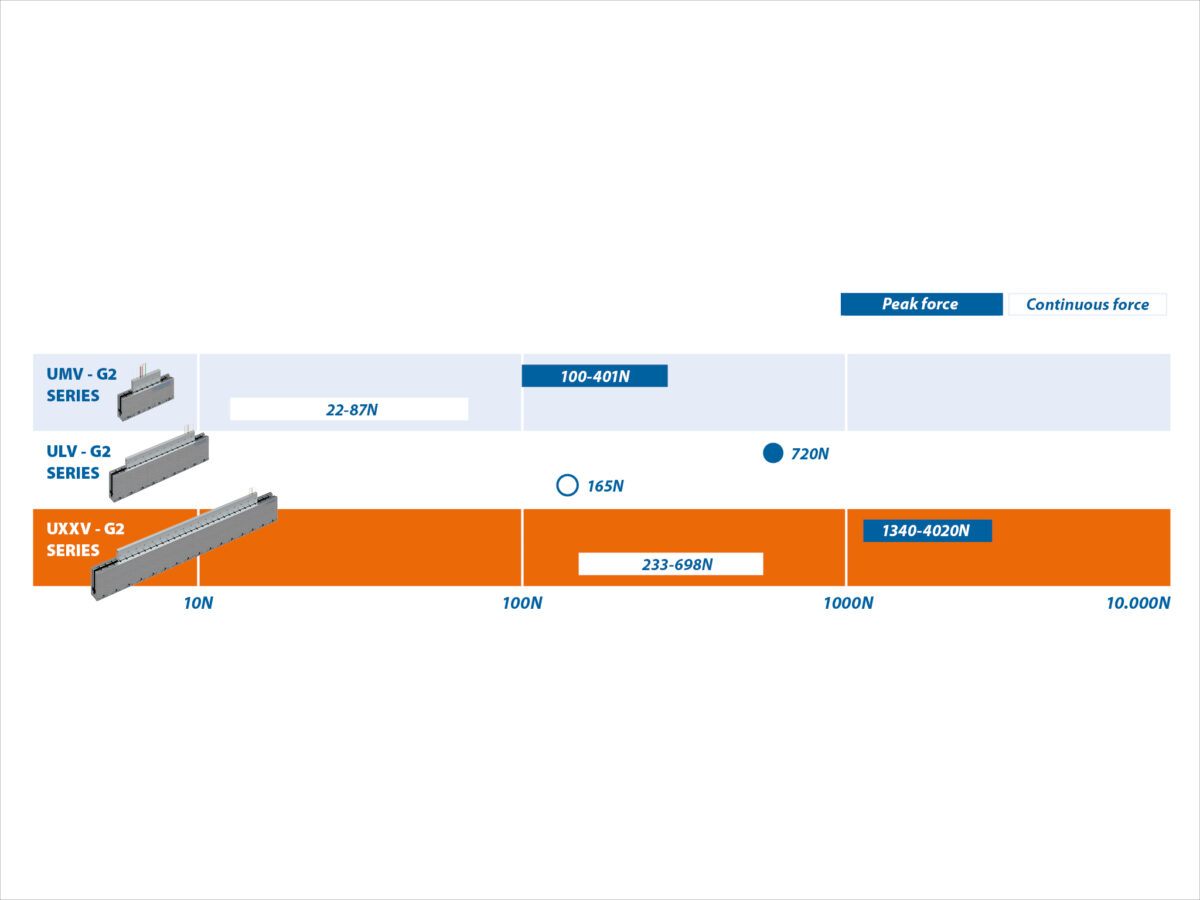

Peak force: 1340 – 4020 N
Continuous force: 233 – 698 N
Coil units: UXXV6 G2 – UXXV9 G2 – UXXV18 G2

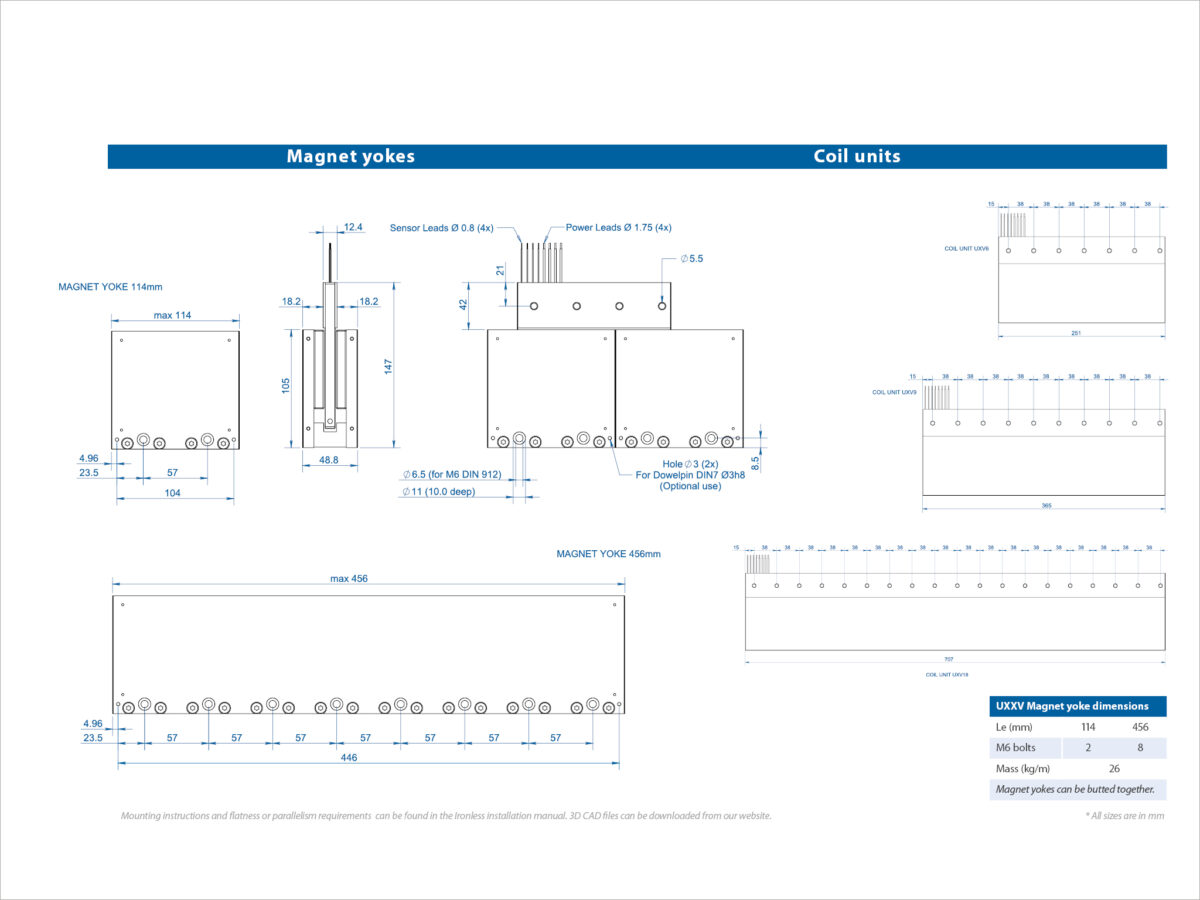

Magnet yokes: UXXV 114mm, UMV 456mm
The new benchmark in vacuum motors
This video introduces the vacuum generation 2 motors of Tecnotion.

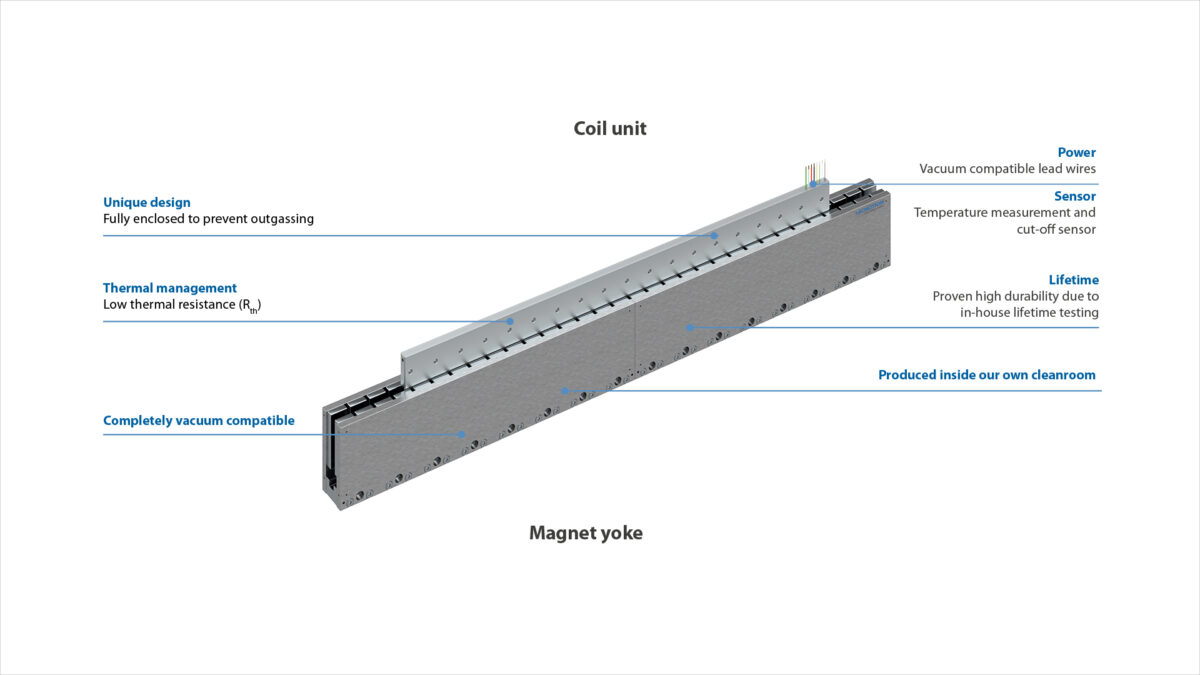

Properties

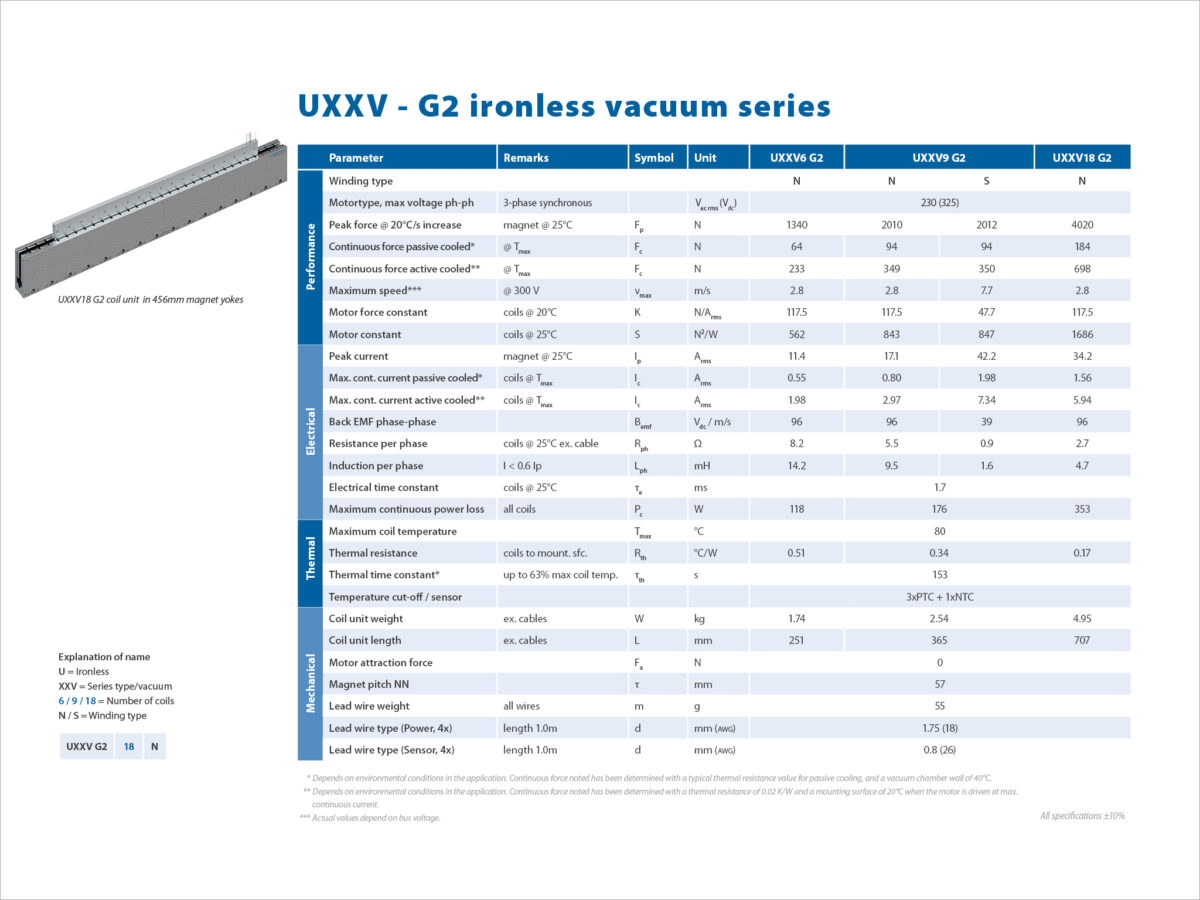

Specifications
Resources
Vacuum motor |Brochure| 1.4
Ironless motor |Webinar| Version 1.0
Vacuum motor |Webinar| Version 1.0
Vacuum motor |CAD file| version1.0
Vacuum motor |Spec sheet| 1.4
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
Product filter
Find the best linear motor according to your application criteria. Select a product type and choose relevant values to filter the most suitable motor.
Simulation tool
Finding the right motor for a given application can be a daunting task. The online simulation tool is designed to make that process as easy as possible for you. Find the right motor in just 4 steps.
