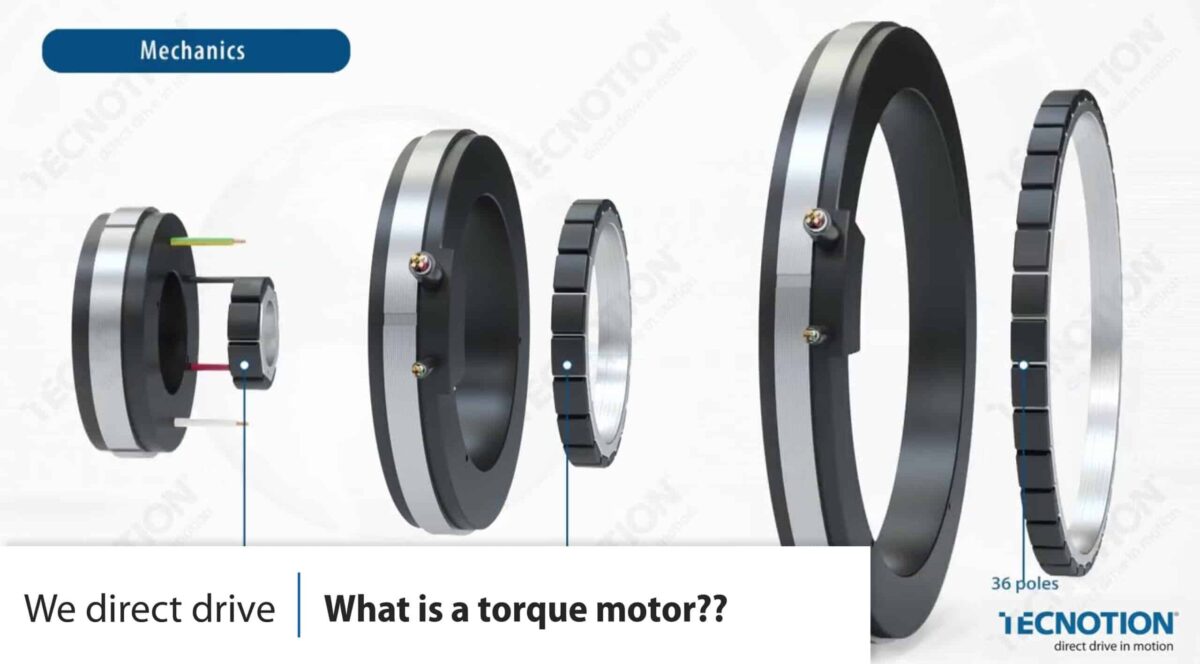

What is a torque motor?

Torque motors are permanent-magnet direct drive motors that rotate along an axis. They can be used wherever a rotary movement is required and offer numerous advantages over conventional servo drives.

Our torque motors are extremely compact, provide an extremely stiff drive train, eliminate the need for time-consuming mounting procedures, are virtually maintenance-free, and can be integrated directly into the machine structure, while the spacious open inner diameter enables wire and cable feedthrough. To top things off the entire series comes with completely sealed stators and integrated temperature protection and measurement sensors.

Required torque and available space help determine the diameter and width of the motor. Motors can be very slim but large in diameter (large axles and turntables) or have a ‘height’ close to their diameter, resulting in a compact but high-torque motor.

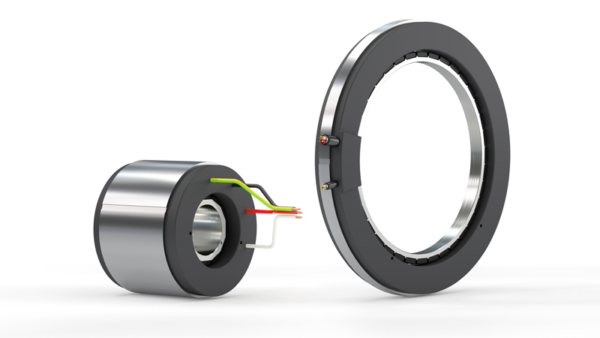

A QTR 78-60 motor (left) and QTR 160-17. Two different shaped motors with over 4Nm of torque and low volume/mass.

Features

• 3-phase synchronous
• Brushless and maintenance-free
• Permanent magnet rotor (4+ poles)
• Direct drive
• High level of control
• Low mass

With continuous torque ratings ranging from 0.29 Nm to 329 Nm, these motors can play a pivotal role in increasing the availability and cost-effectiveness of many different applications in industries like:

• Semiconductor
• Printing
• Robotics
• Machine tooling

For more info and specifications, please check our Torque motor product page.
