UC3 with an alternative cable output

Almelo, The Netherlands, March 2017 – When installing a drive, available power and various other factors play an important role. The cable outlet of the motor may be a decisive criterion, particularly when space is limited. For this reason, the smallest ironless linear motor from Tecnotion -the UC3- is also available with a cable output in the travel direction.

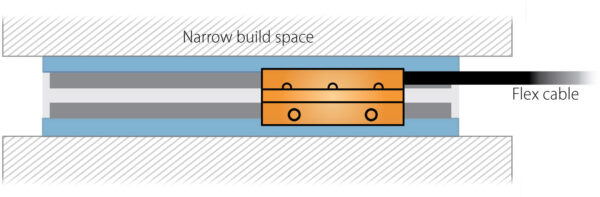

So far the UC3 was only available with a side cable exit. The UC3 is now also available with a cable in the travel direction. The UC3 inline does not differ from its twin in terms of technical data, but the power cable is run in the direction of travel and not on the side. As a result, there is greater flexibility in design. The space required can be reduced above or on the side of the yoke (depending on the type of mounting) and can be made even narrower.

Larger flexibility of design

Performance

The length, 34 mm, and the performance of the coil unit remain the same. As does the use of a highly flexible cable, with (depending on bending radius, velocity, and acceleration.) a minimum cable life of 15,000,000 cycles. Weighing in at just a few grams, this versatile, compact, and affordable motor is still able to sustain a continuous force of 10 or 20N and a peak force of 36N. Download the leaflet with all specs.

Linear motor twins UC3 (left) and UC3 inline (right)
